Easy Transistor Tester
Before you solder a specific transistor, use this straightforward transistor tester circuit to determine whether or not it is functioning properly. You are also adept at recognizing npn a…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Easy Transistor Tester is a electronics project. Before you solder a specific transistor, use this straightforward transistor tester circuit to determine whether or not it is functioning properly. You are also adept at recognizing npn a…
- Source pages
- 198-199
- Named parts
- 1
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- This project may involve hazardous voltage. Work only with qualified supervision and proper isolation.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
LED1 - indicator LED identified in the circuit
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for LED1 - indicator LED identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Easy Transistor Tester: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

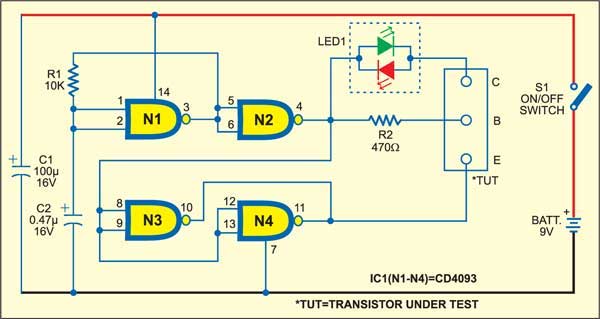

Project build noteBefore you solder a specific transistor, use this straightforward transistor tester circuit to determine whether or not it is functioning properly. You are also adept at recognizing npn and pnp kinds with ease. The LED on the tester can indicate both the pin-outs of the component and whether or not the transistors are functioning properly. The circuit makes use of the characteristics of the gates of the low power integrated circuit 4093. It is a NAND integrated circuit that has four gates and can be constructed in a variety of different ways. With a resistor R1 and a capacitor C2, this initial gate, N1, is constructed to function as a straightforward oscillator. The inverters and buffers are constructed out of the remaining gates. The output of gate N1 (pin 3) is supplied to gate N2 (pin 4), which is then used to drive the green half of the bicolor LED1 that is being displayed. The collector current for the transistor that is being tested can be read off of the cathode of the green LED1 (TUT). The signal is inverted by applying a biasing voltage, which comes from the output of gate N2 to the base of the TUT. The outputs of gates N3 and N4 are connected to the emitter of the TUT through a connection. Circuit operation
If the TUT that is being placed into the socket is of the npn type, then the current will flow from the output pin 4 of gate N4 through the bicolour LED1, causing the green half of it to illuminate. This is because the TUT is conducting the current. If the transistor is of the pnp type, the flow of current is inverted, and the red LED1 component of the bicolor LED1 illuminates. This is because the outputs at pins 10 and 11 of gates N3 and N4, respectively, are in their high state. This is due to the fact that N2's output pin 4 is set to a low level. Table I displays, for each possible state of the transistor, the current status of the bicolor LED1 that is now lit. The bicolor LED1 that is utilized in the circuit is of the two-lead variety and has red and green LEDs that are connected in inverse parallel within a shared casing. Because the anode of one LED becomes the cathode of the second LED, the color of the LED that is illuminated depends on the direction in which the electric current is flowing.
Construction and testing
Project build noteBuild the circuit on a printed circuit board (PCB) designed for general use, and then encase it in a compact box. Because the pin configurations of the various transistors are distinct from one another, it is essential to read through the datasheets in order to locate the appropriate pins.
