Project overview
Project build noteThis straightforward and inexpensive night light turns on by itself as it gets dark and turns off when the sun comes up. It has a battery charging circuit that offers safety against overcharging as well as deep discharging the battery. The circuit can be broken down into three distinct parts: the power supply, the control for overcharging and undercharging, and the lamp control. A low-cost night lamp circuit The power supply section consists of the bridge rectifier BR1, regulator IC3, and regulator IC4 as well as the transformer X1. The mains voltage of 230 volts AC is reduced to 12 volts AC by transformer X1, which is then rectified by bridge rectifier BR1 and filtered by capacitor C4. Regulators 7809 and 7812 are responsible for bringing the output of the rectifier down to 9V and 12V, respectively. While 9V is utilized to charge the battery and power the lamp control circuit, 12V comes from the supply and is used for the operation of the relay RL1. The overcharging/undercharging
control section is constructed using IC2 and a few discrete components as its primary building blocks. Circuit operation Even when there is power from the mains supply and the battery voltage is between 5.5V and 6.5V, the relay will not become energized. Under these circumstances, the battery is charged by relay RL1's normally-closed contacts, which are denoted with a N/C designation. When the voltage of the battery drops below 5.5 volts, the voltage at the inverting pin 9 of the circuit drops below 3.6 volts. As a consequence of this, the output of the operational amplifier N2 climbs high, and the transistor T4 conducts, which activates the relay RL1 to stop the battery from going into a deep discharge. In a similar manner, if the voltage of the battery rises above 6.5V, then the voltage at the non-inverting pin 12 of the battery rises above 3.6V. As a consequence of this, the output of the operational amplifier N1 swings high, and the transistor T4 conducts, which activates the relay RL1 to stop the battery from being overcharged. When one of these conditions is present—overcharging or deep discharging—LED1 illuminates to alert the user.
Construction & testing

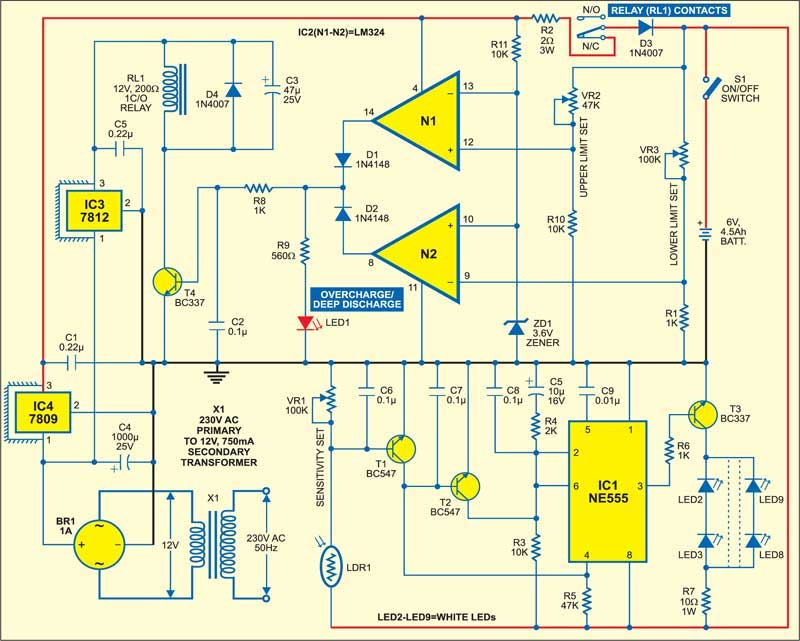

Project build noteIn order to create the control circuit for the light, components IC1, transistors T1 through T3, some resistors, and capacitors were used, and the lamp itself is composed of white LEDs (LED2 through LED9). During the day, the resistance of LDR1 is decreased since light is falling on it. As a consequence of this, transistor T1 conducts, which pulls reset pin 4 of integrated circuit IC1 low to disable it and thus turns off all of the white LEDs. When it is nighttime, also known as when it is dark, the resistance of LDR1 rises, which results in the transistor T1 being turned off. In order to turn on IC1, the reset pin 4 is pulled high, and at the same time, trigger pin 2 is pulled low by means of transistor T2. Through the transistor T3, the high output located at pin 3 of the IC illuminates all of the white LEDs.
