AM radios are still in use today for the purpose of receiving communications from quite far away (DX reception). However, AM radios often require lengthy external antennae that are between 10 and 30 meters in length. If you reside in a town or a village, doing so is simple, but in more urban settings, it is not always possible. A signal received from an antenna with a length between 2 and 5 meters may be relatively weak, but installing and maintaining such an antenna is simple.

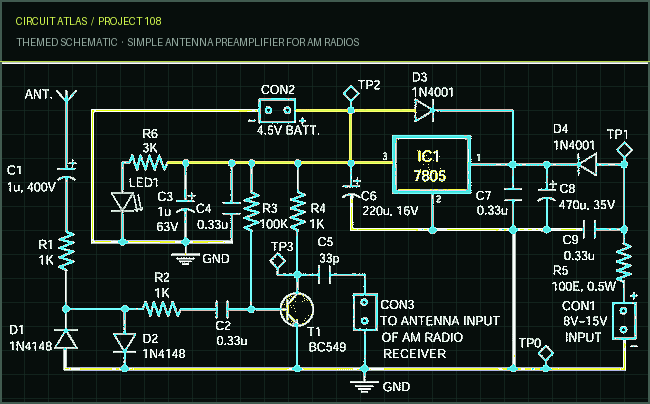

If you have no choice but to utilize a somewhat short antenna, you can improve the AM reception by adding the proposed low-noise antenna preamplifier for AM signals. This is because the preamplifier will reduce the amount of noise produced by the antenna. Long-wave (LW) and medium-wave (MW) spectrums are both covered by its 150-1700 kHz frequency operation range that it offers. Circuit and working The circuit of the antenna preamplifier used in AM radios is seen in Figure. The capacitor C1, the resistor R1, and the diodes D1 and D2 are what provide protection for the input of the preamplifier. In order to be suitable for this application, the Transistor T1 must have a gain that is either moderate or high and a low noise level. Transistors such as the BC550, BC547, and others like them will perform admirably in the LW and MW frequencies. It is essential to maintain a collector current of at least 2 mA at all times. The majority of the time, a current of 2-5 mA is sufficient, and this value can be altered using resistor R3. It's possible that increasing the current to 10 mA will make the volume better, however it will also shorten the battery's life. The preamplifier and the AM radio are physically separated by capacitor C2. The regulator 7805 provides the power supply, which is +5V. (IC1). Connector CON1 is able to accept either an AC or DC power supply that falls within the range of 8-15V. The operation of the circuit is straightforward. In the low- and medium-frequency ranges, the gain offered by the preamplifier circuit is greater than 10. In order to

achieve superior reception, the amplified signals are sent through the AM radio receiver's antenna input. Depending on how well the practical implementation is carried out, the circuit may also function for the short-wave (SW) range. If you want to see a noticeable improvement in reception, the antenna needs to be at least 2 meters long, and it should be positioned either outside the building or inside the building at least half a meter away from the walls. If you store the antenna close to walls or installations of electrical cables, there may be reception problems, and the antenna may pick up an excessive amount of background noise. Disconnecting the antenna from the preamplifier is a necessary precaution to take if there is a chance of electrical storms in the vicinity. The preamplifier has the capability of operating off of a 4.5V dry battery that is connected to connection CON2. Because the mains power source could potentially produce considerable noise, it is recommended that you make use of batteries with voltages ranging from 3V to 15V.
