Project overview
Project build noteWhen we open the door of the fridge, the incandescent lamp inside lights up. It suffers
from several disadvantages like
Project build noteBecause there is only one light source in the top corner, the light doesn't spread out in the same way. Only the top shelves get good light, while the shadows of the food on the lower shelves make them dark. In a strange way, the lamp makes the space we are trying to cool hotter, so the compressor has to work for longer. When the power goes out, there is no light inside the fridge, which is when you need it the most. All of the above problems could be solved by using a distributed array of LEDs with a battery backup, which gives off light without shadows and runs cool. White PVC channels are used to make two rows of six white LEDs each. This is called a 26 array of white LEDs. The length of the channel is the same as the height of the

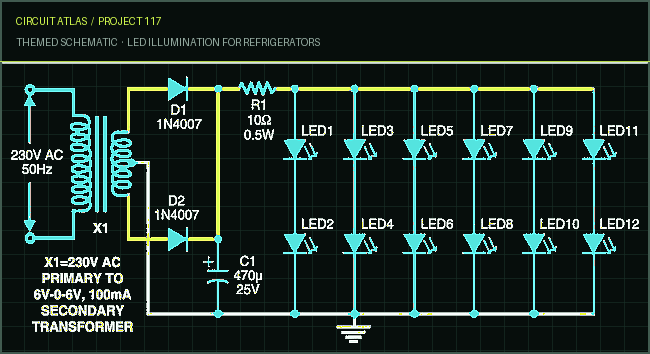

fridge's cooling area. The LEDs are set up so that each shelf's top corner has two of them. As shown in, these channels are put in the left and right corners of the inside of the fridge. Fig. 1: Illumination LEDs with DC power supply circuit Fig.2: Illumination LEDs with DC power supply circuit You can put the wiring behind the shelf or in the place of the bulb holder. The channels should be set up so that the light from the LEDs doesn't go straight into the user's eyes. The forward voltage of a white LED, which is how it works, is 3.5 volts. At this voltage, each branch of the LED circuit gets about 15mA of current. The total amount of voltage needed is about 7 volts. About 8 volts come from the full-wave rectifier. The voltage drops by about 1 volt when the current-limiting series resistor R1 is added. This makes sure that the current in each branch of the circuit is the same, so that the lights are all the same brightness. Use a 63ohm resistor in each of the six branches if you don't get LEDs that match. If so, R1 can be taken away.

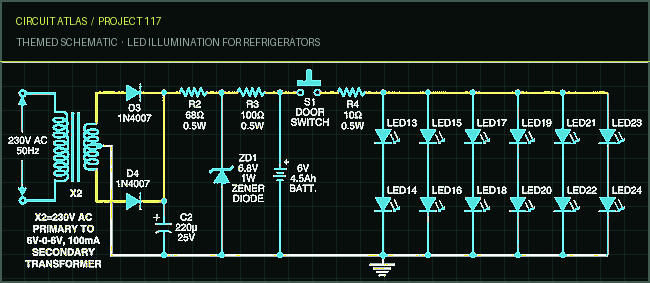

When the power goes out, it's important to keep the door open for as little time as possible. In places where power goes out often, the battery-powered circuit can be used to light up the fridge. The 6V, 4.5Ah sealed lead-acid battery is kept on a slow charge all the time. The battery powers the LEDs, and the switch on the door makes the connection. (In this case, we need to take the door-operated switch's original wiring apart. You might need the help of a professional technician.) The battery voltage can't go higher than 6.8V because of Zener diode ZD1. So, switching to LED lighting not only makes the inside of the fridge brighter but also uses less electricity. It looks better and has no shadows. Because LEDs produce less heat than incandescent bulbs, the fridge cools better because the compressor needs to run for less time.
