Smart Battery Protector Using a Shunt Regulator
When a battery is depleted to a level lower than the minimum voltage that is suggested for it, the battery's expected lifespan is significantly shortened. Before the discharge is complete…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Smart Battery Protector Using a Shunt Regulator is a electronics project. When a battery is depleted to a level lower than the minimum voltage that is suggested for it, the battery's expected lifespan is significantly shortened. Before the discharge is complete…
- Source pages
- 238-239
- Named parts
- 3
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Power supply
A power component supplies, converts, stores, or regulates energy for the project.
What it does hereIt must provide the documented voltage, polarity, isolation, and sufficient current safely.
Buy / compare this part ↗Advantages
- Stable power improves reliability
- Current limiting protects first tests
- Regulation reduces resets and noise
Limitations
- Wrong polarity can cause immediate damage
- Underrated parts overheat
- Mains circuits require qualified supervision
Handling
- Measure output before connection
- Use a fuse or current limit
- Insulate exposed conductors
Specifications to verify
- Use the exact model, value, package, and rating listed for Power supply; similar-looking parts are not always interchangeable.
- Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
What's this?Image, role, pros, cons, handling & specifications
TL431 - integrated circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for TL431 - integrated circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
PART LEARNING VIEWVR1 - preset potentiometer identified in the circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for VR1 - preset potentiometer identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Smart Battery Protector Using a Shunt Regulator: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

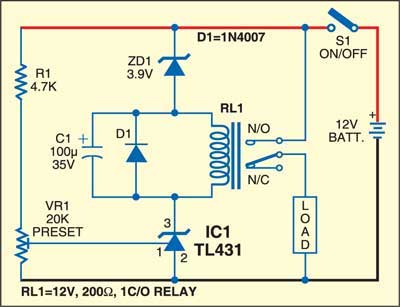

Project build noteWhen a battery is depleted to a level lower than the minimum voltage that is suggested for it, the battery's expected lifespan is significantly shortened. Before the discharge is completely finished, you are required to disconnect the load. In that case, it has the potential to either damage the battery or reduce its lifespan. In order to stop the chattering in the disconnect switch, this function of the disconnect requires a battery voltage monitor equipped with a significant amount of hysteresis. When the voltage of the battery drops below the threshold and then bounces back when the load is removed, chattering will occur. A circuit that safeguards batteries
The conventional battery protectors are no match for this uncomplicated circuit. It employs the shunt regulator IC TL431 for both its ease of use and its outstanding performance. Using a power supply for the workbench that is regulated makes it simple to adjust the operating point of the circuit. The technique for making the adjustment is as follows: To begin, use a jumper to short out the Zener diode ZD1. The circuit requires a supply of 12V DC. Relay RL1 energizes. Now turn the power supply down to 10.5 volts, and modify the preset VR1 so that the relay will close when the voltage reaches 10.5 volts. (Refer to the voltage that is advised by the company that makes the battery.) Proceed with the process once more if required. Now take the jumper out of the circuit and connect the wires. At a voltage of 10.5V, the relay should not operate. Increasing the power supply should be done gradually. It is determined by the relay pull-in voltage as well as the zener breakdown potential whether or not the relay will activate when it reaches 12 volts or not. Bring the power source for the workbench down to 10.5 volts, and observe how the relay trips perfectly at 10.5 volts. Using a Zener diode with a little bit higher voltage is another way to achieve a huge hysteresis in your circuit. We have demonstrated that it is possible to prevent relay chattering by testing the circuit with a zener diode rated at 3.9 volts and a relay rated for 12 volts and 200 ohms.
