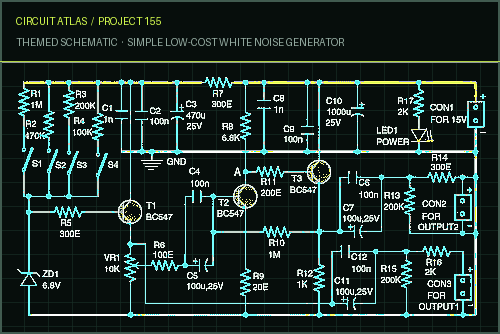

Figure: Circuit diagram of the white noise generator
Project build noteWhen testing preamplifiers, filters, power amplifiers, etc., white noise is frequently employed. So, at least for the audio signal range, white noise generators are needed. There are generators like this on the market, but they usually cost a lot. Here is an easy-to-make, cheap white noise generator that uses a Zener diode and three common high-gain transistors. This noise generator can be used by itself for many different kinds of testing. It can also be combined with other filters to make "colored" noises like pink noise, grey noise, blue noise, etc. Up to about 100 kHz is where this noise generator is meant to be used. Circuit and working Fig. 1 shows a diagram of how the white noise generator works. It is made up of three BC547 transistors (T1–T3) and a 6.8V Zener diode (ZD1). It needs a power supply with 15V DC. The voltage at which Zener diode ZD1 breaks down should be less than the voltage of the power supply, which in this case is 15V. Most of the time, you don't have to choose the Zener diode based on how much noise you want to make. But if you need to, you can change the LED, Zener diode, and transistors to make the noise you want. The Zener diode makes noise based on how much current is going through it. Here, we have four options for that current. Switches S1, S2, S3, and S4 or jumpers can be used
instead of them to save money. At low currents, the Zener diode has a high internal resistance, which is why the transistor T1 works as an emitter-follower. The circuit has two outputs: Output 1 is where the white noise from T1 is buffered, and Output 2 is where the white noise from T2 and T3 is amplified. Pot VR1 is used to change how loud the noise is that T2 and T3 are amplifying. Transistor T2 acts as a voltage amplifier, which makes the noise bigger. Most of the time, the resistors connected to T2's emitter and collector determine how much voltage is gained. The voltage at point A, which is the collector of T2, should be about half of the voltage from the power supply. You might have to change the value of feedback resistor R10 to do that. Transistor T3 acts as an emitter-follower and gives Output 2 a low output resistance. The Zener diode and the power supply determine how much the amplitude can go up to. The voltage of the power supply (Vcc) should be between 12V and 25V. Higher Vcc is better because it can send out a stronger signal if it needs to. Even if the power supply is 9V, the circuit will still work, but the Zener diode's breakdown voltage rating should be less than 6V in that case. (A 15V power supply and a 6.8V Zener diode were used in the tests at EFY Lab.)
