Ohm Meter
This site's ohm meter circuit schematic is really helpful for measuring the low resistance range from 0 to 1 and 0 to 10, as it covers both of those ranges. You have the ability to change…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Ohm Meter is a electronics project. This site's ohm meter circuit schematic is really helpful for measuring the low resistance range from 0 to 1 and 0 to 10, as it covers both of those ranges. You have the ability to change…
- Source pages
- 344-345
- Named parts
- 5
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Resisters
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for Resisters; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
R1=27K; R2=3.3K; R3=3.3K; R4=330K; VR1=100 OHM DIODES
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for R1=27K; R2=3.3K; R3=3.3K; R4=330K; VR1=100 OHM DIODES; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications

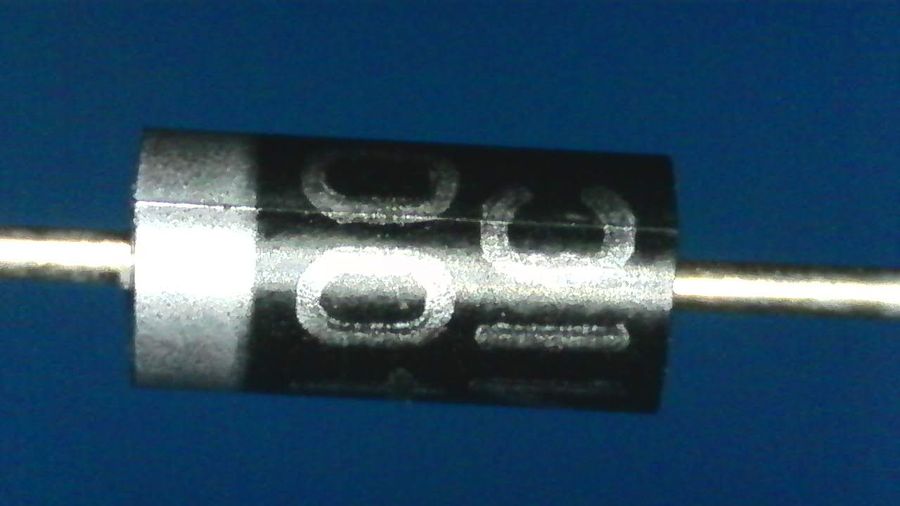

PASSIVE LEARNING VIEWD1=1N4001; D2=1N4001
A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.
What it does hereIts exact value and tolerance determine how the surrounding stage behaves.
Buy / compare this part ↗Advantages
- Simple and dependable
- Low cost
- Easy to measure before installation
Limitations
- A wrong value can stop or damage the circuit
- Ratings must not be exceeded
- Polarized parts require correct orientation
Handling
- Measure unclear values
- Observe capacitor polarity
- Avoid overheating leads while soldering
Specifications to verify
- Use the exact model, value, package, and rating listed for D1=1N4001; D2=1N4001; similar-looking parts are not always interchangeable.
- Confirm value, tolerance, power or voltage rating, polarity, and package size.
What's this?Image, role, pros, cons, handling & specifications
Description Of the Circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for Description Of the Circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
T1 - transistor stage identified in the circuit
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for T1 - transistor stage identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Ohm Meter: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteThis site's ohm meter circuit schematic is really helpful for measuring the low resistance range from 0 to 1 and 0 to 10, as it covers both of those ranges. You have the ability to change the range to reflect your preferences. The circuit for a low Ohm meter that is described here is straightforward, and it has
several advantages over other meters, including the following
Project build note1. You only need to set it up once and then you can forget about it for good. You won't ever have to look at it again. 2. This circuit has a capacity for reading scales that ranges from zero to a predetermined value rather than infinity. 3. This meter has a low power consumption due to its utilization of a 1.5-volt penlight cell, two scales (0-1 ohms and 0-10 ohms) over a dial, and a push-to- on button that controls the circuit's huge power consumption.
PART LIST
Project build noteResisters R1=27K; R2=3.3K; R3=3.3K; R4=330K; VR1=100 OHM DIODES D1=1N4001; D2=1N4001

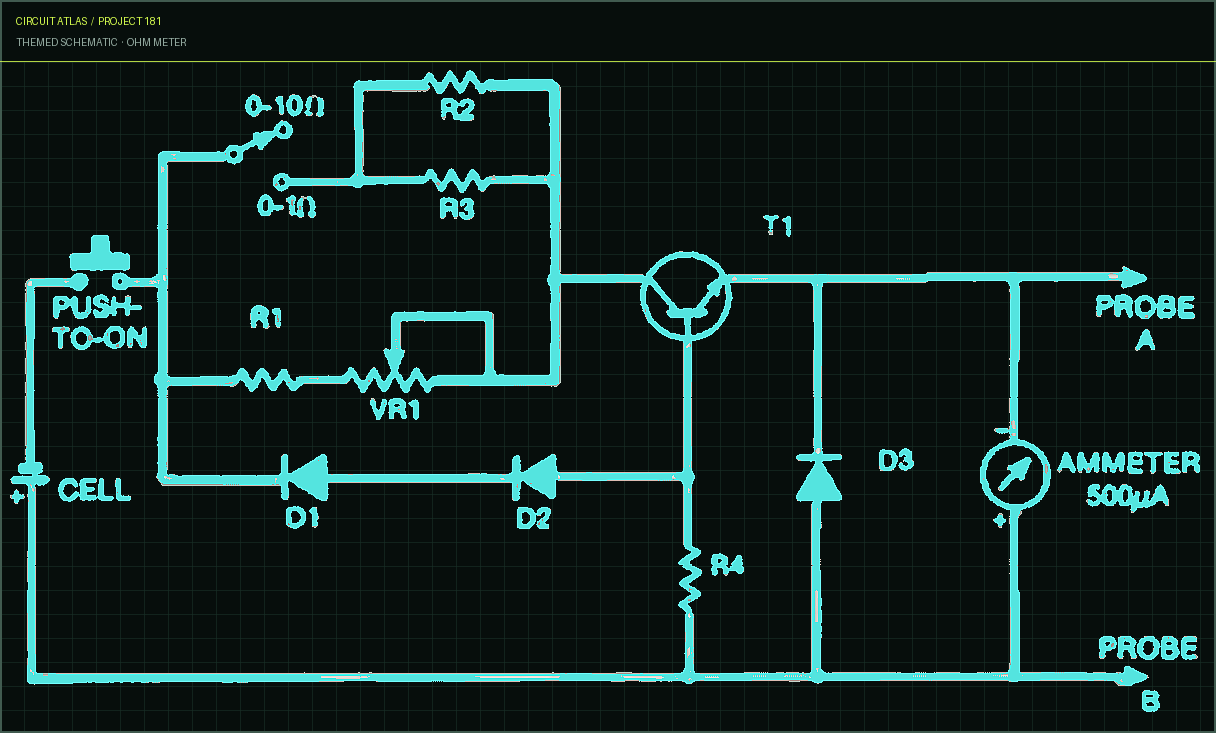

Description Of the Circuit The ohm meter, the circuit design for which is shown below, is capable of measuring resistance in the range from 0 to 10 ohm. Over there on the circuit diagram, you can see the selector switch, which can select several options. both 0 to 1 ohm and 0 to 10 ohms were included in the testing range. The function of the Transistor T1 is that of a constant current. Generator that sends a known current through the resistors whose resistance is being measured in order to get an accurate reading. If the highest voltage drop across the emitter of the transistor T1 will be greater than 100 mV, and the ground is displayed on the meter, and the meter's internal resistance is significantly higher than the testing resistance of 10 ohms, then the transistor T1 is not functioning properly. This ohm meter does not have the capability to load the circuit as a result. In order to prevent the ohm meter from being damaged by an overload when the testing resistor that is being measured is not present, a diode labeled D3 has been placed across the micro ammeter. This diode serves as a protective precaution. The transistor T1 is responsible for applying a bias to the resistors R1, VR1, R2, R3, D1, D2, and R4. Despite the fact that the battery's capacity is decreasing, the bias level can be maintained thanks to diodes D1 and D2. For the sake of this project, the scale of the meter should read 0-500 A. Any kind of standard resistance meter can serve as the shunt resistance for this project. The silicon npn that has a high gain factor is the transistor designated as T1. Now you need to modify the meter by connecting the A and B probes together to create a short. If the meter is adjusted in advance, it will show that there is no resistance at all. The 0-to-10-ohm scale is the only one that needs to be adjusted, and all of the other scales will adjust themselves automatically after that. Constructing this will take no more than a few minutes at most. This is a great project for people who are just starting out with electronics.
