Project overview
Project build noteLaser torch-based burglar alarms often only function when it is dark outside. But this long-range photoelectric alarm may work successfully throughout the daytime to warn you about intruders in your large compounds, etc., in addition to protecting you during the night. The laser transmitter and receiver components of the alarm are to be installed on the opposite pillars of the entry gate in order to complete the security system. The buzzer in the receiver circuit will raise an alarm any time someone walks in to disrupt the falling laser beam that is being broadcast.

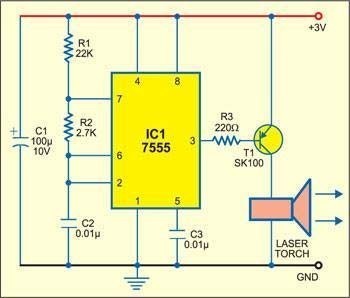

The circuit that makes up the transmitter is powered by 3V DC. The astable multivibrator that was constructed around timer 7555 (IC1) generates a frequency of 5.25kHz. When working with low voltage, the CMOS version of timer 7555 is what's needed. The base of the laser flashlight is wired to the emitter of the npn transistor T1, and the spring-loaded lead that protrudes from the interior of the flashlight is wired to the ground. Receiver circuit

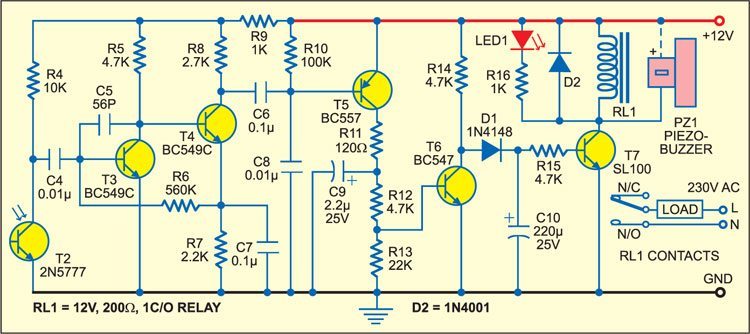

The circuit that makes up the receiver is powered by 12V DC. In order to detect the laser beam that is emitted from the laser torch, it makes use of a photodarlington 2N5777 (T2). The beam signals that are output by the photodarlington are sent to the two-stage amplifier, which is then followed by the switching circuit, etc. As long as the laser beam continues to illuminate photoDarlington T2, relay RL1 will not become energized, and the buzzer will not activate. Additionally, LED1 does not emit any light. When the laser beam that is falling on photoDarlington T2 is disrupted in any way, npn transistor T6 is driven out of conduction, and npn transistor T7 is driven into conduction in its place. As a direct consequence of this, LED1 begins to shine, and relay RL1 begins to energize, which causes the buzzer to ring for a few seconds (determined by the values of resistor R15 and capacitor C10). The normally opened (N/O) contact of relay RL1 allows a big indication load, such as a 230V AC alarm for louder sounds or any other device for brief indication, to be connected to 230V AC mains. This connection causes the large indication load to become active at the same time.
