Handy Tester

Here is a low-cost multitester that can be used to test the state of practically all the electronic components, from resistors to integrated circuits (ICs). It is intended for use by begi…

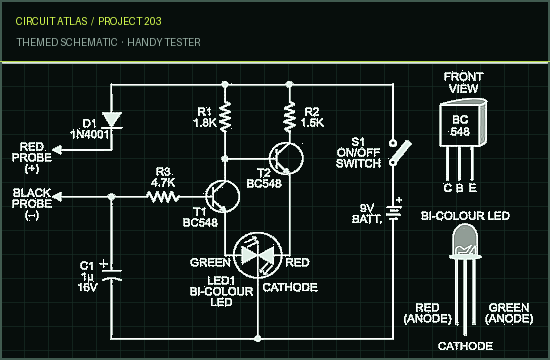

Circuit Atlas themed schematic for Handy Tester
PROJECT#203
TRACKElectronics
PARTS02
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

Handy Tester is a electronics project. Here is a low-cost multitester that can be used to test the state of practically all the electronic components, from resistors to integrated circuits (ICs). It is intended for use by begi…

Source pages
381-382
Named parts
2
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

NAMED PROJECT INVENTORY2 PART LINES
PARTTYPEQTYREADY
ST1, T2 - transistor stages identified in the circuitSEMICONDUCTOR1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for Handy TesterSEMICONDUCTOR LEARNING VIEW

T1, T2 - transistor stages identified in the circuit

A semiconductor stage performs switching, amplification, regulation, rectification, or logic.

What it does here

It controls current or signal flow at a defined point in the circuit.

Buy / compare this part

Advantages

  • Fast and efficient
  • Compact
  • Can control larger loads from smaller signals

Limitations

  • Pin order varies
  • Sensitive to overvoltage and reverse polarity
  • May need cooling or bias components

Handling

  • Verify the datasheet pinout
  • Avoid static and soldering heat
  • Check notch, stripe, or flat-face orientation

Specifications to verify

  • Use the exact model, value, package, and rating listed for T1, T2 - transistor stages identified in the circuit; similar-looking parts are not always interchangeable.
  • Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
PLED1 - indicator LED identified in the circuitPART1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for Handy TesterPART LEARNING VIEW

LED1 - indicator LED identified in the circuit

An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.

What it does here

It presents the circuit result or acts on the physical world.

Buy / compare this part

Advantages

  • Makes system state visible
  • Can be tested separately
  • Supports clear troubleshooting

Limitations

  • Loads may exceed controller current
  • Polarity or driver direction can matter
  • Inductive loads create voltage spikes

Handling

  • Use the documented driver stage
  • Check polarity and load current
  • Add flyback protection for inductive loads

Specifications to verify

  • Use the exact model, value, package, and rating listed for LED1 - indicator LED identified in the circuit; similar-looking parts are not always interchangeable.
  • Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

Here is a low-cost multitester that can be used to test the state of practically all the electronic components, from resistors to integrated circuits (ICs). It is intended for use by beginners. It just requires a few components yet is able to detect polarity, continuity, logic states, and the activity of multivibrators despite its small size. The circuit takes advantage of the biasing property that bipolar transistors have and is extremely straightforward. In order to provide the results of the test, transistors T1 and T2 perform the function of transistor switches by driving the red and green halves of the bicolor LED1 individually. Working of a Multitester Because there is no longer any forward bias, the conductance of transistor T1 is terminated when power is supplied by depressing switch S1. Simultaneously, transistor T2 begins conducting once it has drawn base bias voltage from the battery and passed it through resistor R1. This makes it possible for the red half of the bicolor LED1 to light up. When a positive voltage is applied to the base of transistor T1 via resistor R3, the transistor conducts, which lights up the green half of the bicolor LED1. When transistor T1 is conducting, its base is grounded, which causes transistor T2 to switch off, so turning off the red half of the bicolor LED1. The signal that is acquired at the base of transistor T1 is therefore essential to the operation of the circuit. The following table details the testing techniques for a variety of components, along with the indications and findings that should be obtained.
