Project build notePeople have cared a lot about their safety for a long time. Any personal item that is out of reach is at risk of being stolen, and sometimes even the things we are using get stolen. Here is a touch-sensitive alarm that goes off whenever one of your things is touched. Radiation signals are the idea behind the touch-based alarm. Mains wiring can send out signals that can travel a few meters. These can also be caused by the body's own electromagnetic field. The AC hum signal is what makes this alarm work when you touch it. When someone touches the touch plate, a low-power AC hum is made. This is the same hum that is made by the AC wiring in the house.

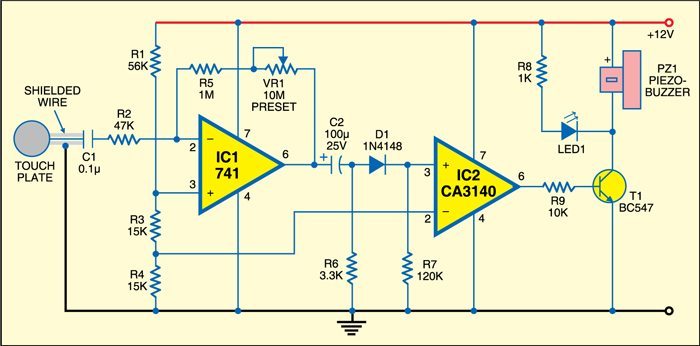

Touch sensitive alarm circuit The low power AC hum signal is first sent to an IC 741-based high-gain preamplifier (IC1), which boosts the signal. The signal is then sent to an IC3140-based voltage comparator (IC2), which compares the signal to a known voltage. When the signal is amplified and sent to pin 3 of IC2, the output goes high. Because of this, transistor T1 conducts, which makes the buzzer go off. LED1 lights up at the same time. For this unit to work well, it needs to be powered by 12V from the mains.
Construction & testing
Project build notePut the circuit together on a PCB that can be used for many things and put it in a small cabinet. Connect the touch plate to the circuit with a shielded wire and make sure that both the length of the wire and the size of the touch plate are as small as possible.
