Flashing LED Light
If you put a flashing LED at the front door of your garage or house, thieves will think that you have a high-tech security system. This circuit is just a low-current drain flasher that ma…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Flashing LED Light is a electronics project. If you put a flashing LED at the front door of your garage or house, thieves will think that you have a high-tech security system. This circuit is just a low-current drain flasher that ma…
- Source pages
- 439-440
- Named parts
- 2
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
PASSIVE LEARNING VIEW1N4148
A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.
What it does hereIts exact value and tolerance determine how the surrounding stage behaves.
Buy / compare this part ↗Advantages
- Simple and dependable
- Low cost
- Easy to measure before installation
Limitations
- A wrong value can stop or damage the circuit
- Ratings must not be exceeded
- Polarized parts require correct orientation
Handling
- Measure unclear values
- Observe capacitor polarity
- Avoid overheating leads while soldering
Specifications to verify
- Use the exact model, value, package, and rating listed for 1N4148; similar-looking parts are not always interchangeable.
- Confirm value, tolerance, power or voltage rating, polarity, and package size.
What's this?Image, role, pros, cons, handling & specifications
LED1 - indicator LED identified in the circuit
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for LED1 - indicator LED identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Flashing LED Light: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

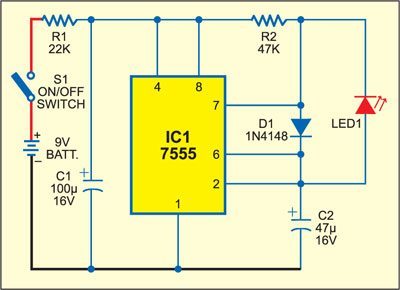

Project build noteIf you put a flashing LED at the front door of your garage or house, thieves will think that you have a high-tech security system. This circuit is just a low-current drain flasher that makes an LED light up and go out. It uses a single CMOS timer that is set up with a few extra parts to work as a free-running oscillator. Since the LED flashes very briefly, the average current through it is about 150 A, with a high peak value that is enough for normal viewing. It's a real miser because of this. Flashing LED circuit
The 9V battery source is linked to the circuit by the "on"/"off" switch S1. When switch S1 is closed, the IC gets power from capacitor C1, which is constantly charged by resistor R1. By giving power to IC1 from capacitor C1, the battery doesn't have to be used up. Most LEDs use 20 mA of current, which is often more than the power used by the rest of the circuit. This is not good if the device runs on batteries. In this circuit, the LED only uses a small amount of the normal amount of power. Through resistor R2 and diode D1, C2 gets charged. When the voltage across C2 reaches two-thirds of the supply voltage, threshold pin 7 of IC1 turns on as a current sink. Through LED1, the capacitor quickly drains into pin 7. Diode 1N4148 (D1) and resistor R2 make up the one-way charging path for capacitor C2. With the charges in C2, LED1 lights up briefly for a short time. The charging cycle starts over again. This is how LED keeps flashing. This job can be done just fine with a 9V PP3 battery.
You built Flashing LED Light.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
Automatic Soldering Iron Switch
Ready to reuse what you learned in another project from the same track?
Start this project →
