Calling Bell Using an Intercom
Here is a simple calling bell circuit that can be used in small offices with an existing intercom system to call the office boy. There are up to nine places where extension lines can be u…

Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Calling Bell Using an Intercom is a electronics project. Here is a simple calling bell circuit that can be used in small offices with an existing intercom system to call the office boy. There are up to nine places where extension lines can be u…
- Source pages
- 443-446
- Named parts
- 4
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- This project may involve hazardous voltage. Work only with qualified supervision and proper isolation.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications

Buzzer
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for Buzzer; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications
SEMICONDUCTOR LEARNING VIEWNE555
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for NE555; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications

T1 - transistor stage identified in the circuit
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for T1 - transistor stage identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
PART LEARNING VIEWVR1 - preset potentiometer identified in the circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for VR1 - preset potentiometer identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Calling Bell Using an Intercom: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals

Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteHere is a simple calling bell circuit that can be used in small offices with an existing intercom system to call the office boy. There are up to nine places where extension lines can be used to call the office boy. The system is linked to the office boy's own phone line. When someone needs the office boy's help, they can use the intercom to call the office boy's extension number and then press a key to let the office boy know where they are (say, 5). This number will be shown on a seven-segment display, and an office boy will be notified by a bell. If you press a switch, the display will go blank.

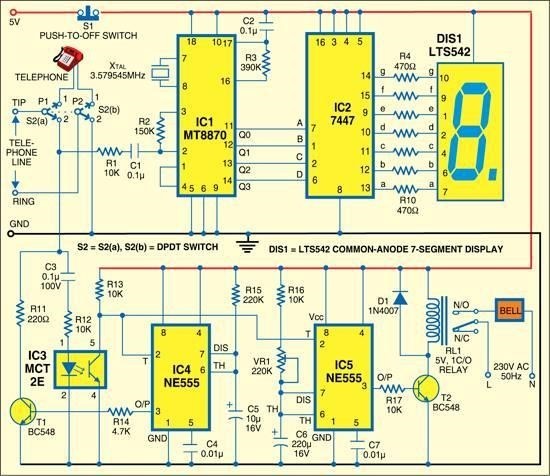

The whole circuit can be broken up into two parts: the ring stop/bell timer and the decoder/display. The ring stops and bell timer section is made up of an optocoupler MCT2E (IC3), two NE555 timers (IC4 and IC5), and a few discrete components. The optocoupler is what makes the timers go off (IC4 and IC5). Both timers are set up to work in a single-stable mode. The time period of IC4 is always between two and three seconds, while the time period of IC5 can be set with preset VR1 to be between three seconds and one minute. Increasing the value of capacitor C6 or resistor R16 will make the time period last longer. When the office boy's phone rings, the LED inside optocoupler IC3 lights up. This turns on timers IC4 and IC5. When IC4's pin 3 has a high output, transistor T1 conducts, which puts resistor R11 across the phone line to stop the ringing. At the same time, the high output of IC5 (pin 3) turns on the bell for a set amount of time through relay RL1. The decoder cum display section is made up of a DTMF IC 8870 (IC1), an IC 7447 (IC2), a common-anode 7-segment display LTS542 (DIS1), and a few discrete components. The most important IC in this part is MT8870. It is used a lot in phones and a wide range of other things. MT8870 turns the DTMF (dual-tone, multi-frequency) tone pair that is made when a phone button is pressed into binary values. The binary values are sent to the driver IC 7447, which then tells the seven-segment display what number to show. How the circuit works is easy to understand. Connect the circuit you just put together to the office boy's extension. Use a 5V power adaptor to connect 5V to the circuit. Now, when you call this dedicated extension number, the ringing will stop in a few seconds. After the phone stops ringing, press a number on the phone to tell them where you are (say, 5). This number will show up on the seven-segment display, and the office boy
will hear the bell for a set amount of time. The office boy can wait for the next call after helping out in this room. If you want to use the phone as a regular intercom, just connect switch S2 to position 1. The circuit will no longer work. You can now use the phone to call any extension number. If you want to use the call bell again, just move switch S2 to position 2. Put the circuit together on a PCB that can be used for many things and put it in a suitable cabinet. At the back of the cabinet, connect the plugs for the phone line and the AC power. Install the 7-segment display, the buzzer, and the S2 switch on the front of the cabinet.
