Bhajan and Mantra Chanting Amplifier

The practice of chanting a variety of mantras is popular in India due to the widespread belief that doing so will bring the practitioner good fortune, mental tranquility, and an enhanced…

Circuit Atlas themed schematic for Bhajan and Mantra Chanting Amplifier
PROJECT#240
TRACKElectronics
PARTS02
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

Bhajan and Mantra Chanting Amplifier is a electronics project. The practice of chanting a variety of mantras is popular in India due to the widespread belief that doing so will bring the practitioner good fortune, mental tranquility, and an enhanced…

Source pages
451-453
Named parts
2
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

NAMED PROJECT INVENTORY2 PART LINES
PARTTYPEQTYREADY
SLM386SEMICONDUCTOR1
What's this?Image, role, pros, cons, handling & specifications
LM386 low-voltage audio amplifierSEMICONDUCTOR LEARNING VIEW

LM386

A semiconductor stage performs switching, amplification, regulation, rectification, or logic.

What it does here

It controls current or signal flow at a defined point in the circuit.

Buy / compare this part

Advantages

  • Fast and efficient
  • Compact
  • Can control larger loads from smaller signals

Limitations

  • Pin order varies
  • Sensitive to overvoltage and reverse polarity
  • May need cooling or bias components

Handling

  • Verify the datasheet pinout
  • Avoid static and soldering heat
  • Check notch, stripe, or flat-face orientation

Specifications to verify

  • Use the exact model, value, package, and rating listed for LM386; similar-looking parts are not always interchangeable.
  • Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
PVR1 - preset potentiometer identified in the circuitPART1
What's this?Image, role, pros, cons, handling & specifications
10kΩ preset potentiometerPART LEARNING VIEW

VR1 - preset potentiometer identified in the circuit

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for VR1 - preset potentiometer identified in the circuit; similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

The practice of chanting a variety of mantras is popular in India due to the widespread belief that doing so will bring the practitioner good fortune, mental tranquility, and an enhanced capacity for concentration. We are going to show you the circuit for an electric chanting amplifier that has one mantra and nine other bhajans that you may choose from. The device is compact and convenient, making it possible to carry it anywhere and use it while traveling. It is suitable not only for the pooja room but also for the living room, making it an appropriate present for any event that one would attend. C ircuit and the working

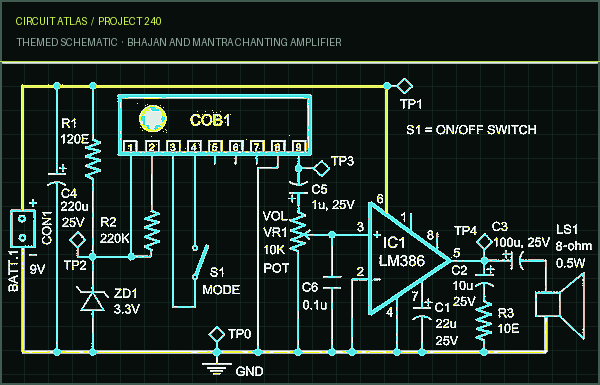

Figure 1 presents the bhajan and mantra chanting amplifier circuit for your perusal. A 9V PP3 battery provides the necessary power for it. The chip-on- board (COB) and LM386 audio amplifier serve as the primary components of the circuit (IC1). The chanting IC, also known as COB1, can be purchased in the Indian market under the name Ganpati 101. COB1 receives 3.3V from the Zener diode, which allows it to function properly. The ten previously recorded songs are already saved in COB1's database. The part in the COB that is responsible for generating the right sound frequency is the resistor R2 that is linked to pin 2 of COB1. Pin 9 of the COB can be used for audio output if it's needed. S1 is a mode-selection switch that is used to select the mode that will be used to play a specific song. The bhajan starts playing once the mode switch S1 is turned on. You can select the next bhajan by toggling the switch in the appropriate direction. If the power is not turned off while the S1 switch is closed, a specific song will play over and over again. The LM386 is an audio amplifier that has a low power output. Capacitor C5 and

volume control VR1 are the two components that deliver audio input to its pin 3. Pin 5 is where you can access the device's audio output.
