Wireless Stepper Motor Controller
Infrared signals are used in this straightforward and easy-to-use wireless controller for stepper motors. With the help of this circuit, you will be able to exert control over the stepper…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Wireless Stepper Motor Controller is a electronics project. Infrared signals are used in this straightforward and easy-to-use wireless controller for stepper motors. With the help of this circuit, you will be able to exert control over the stepper…
- Source pages
- 494-496
- Named parts
- 3
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Stepper motor
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for Stepper motor; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications
SEMICONDUCTOR LEARNING VIEWNE555
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for NE555; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
ULN2003
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for ULN2003; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Wireless Stepper Motor Controller: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 2 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteInfrared signals are used in this straightforward and easy-to-use wireless controller for stepper motors. With the help of this circuit, you will be able to exert control over the stepper motor from a distance of up to four meters. The circuit has both a transmitter and a receiver in its configuration. Infrared signals are used to carry out the communication that needs to take place between the transmitter section and the reception section. Wireless Stepper Motor Controller Circuit

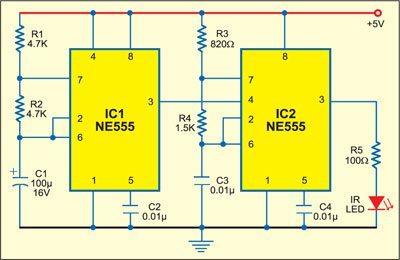

Wireless Stepper Motor Controller: Infrared transmitter The timer NE555 integrated circuits (IC1 and IC2) in the transmitter part are set up to operate as astable multivibrators, and their frequencies are around 1 Hz and 38 kHz, respectively. Therefore, the 38 kHz carrier signal is modulated by a 1 Hz modulating signal because the output of IC1 is sent to reset pin 4 of IC2. The infrared LED is responsible for transmitting the modulated signal that comes from pin 3 of IC2. The amount of current that can go through the IR LED is controlled by resistor R5. The received signal is detected by the infrared receiver module TSOP1738 (IC6) of the receiver section, and the output of this module, which is located at pin 3, is used to provide clocks for the dual flip-flop 74LS74 Ics (IC3 and IC4), which are set up in the configuration of a ring counter. When the power is turned on, the first flip-flop is initialized, and the Q1 output of that flip-flop goes high. In contrast, the other three flip-flops are reset, and the outputs of those flip-flops go low. When the first clock pulse is received,

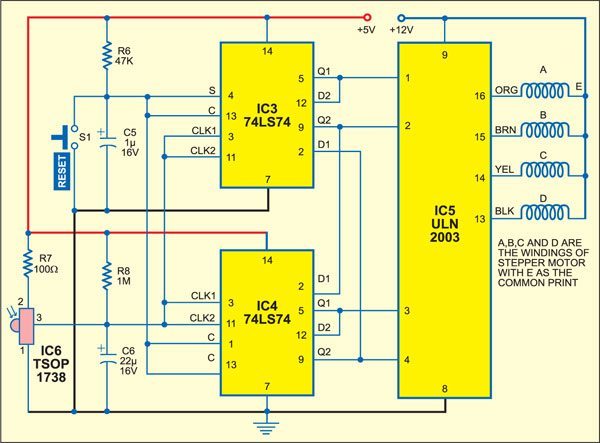

the high output of the first flip-flop is transferred to the second flip-flop. This occurs immediately. Therefore, upon receipt of each clock pulse, the high output will continually move in a ring-like pattern. Wireless Stepper Motor Controller: Infrared receiver and stepper motor driver circuit The outputs of the flip-flops are connected to the stepper motor windings that are labeled 'A' through 'D' after being amplified by the Darlington transistor array included within ULN2003 (IC5). The point in the windings that is common to all of them is connected to a source of +12V DC. Flip-flops can be manually reset by hitting the S1 reset switch, which will result in the motor coming to a stop. The stepper motor immediately begins moving once more upon the release of the reset switch. The motor will stop working if there is any disruption in the connection between the transmitter and the receiver.
