Twinkle Twinkle X’mas Star
If you don't decorate your Christmas tree with a blinking star, Christmas just isn't the same without it. This is how the circuit of a dazzling star looks like. The schematic for the blin…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Twinkle Twinkle X’mas Star is a electronics project. If you don't decorate your Christmas tree with a blinking star, Christmas just isn't the same without it. This is how the circuit of a dazzling star looks like. The schematic for the blin…
- Source pages
- 527-528
- Named parts
- 2
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- This project may involve hazardous voltage. Work only with qualified supervision and proper isolation.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
SEMICONDUCTOR LEARNING VIEWBT136 - specified part
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for BT136 - specified part; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
LED1 - indicator LED identified in the circuit
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for LED1 - indicator LED identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Twinkle Twinkle X’mas Star: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 2 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

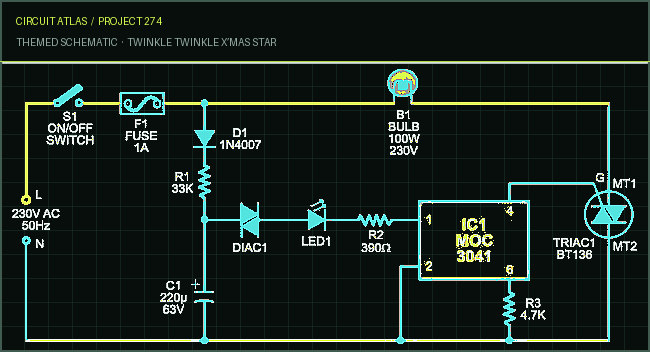

Project build noteIf you don't decorate your Christmas tree with a blinking star, Christmas just isn't the same without it. This is how the circuit of a dazzling star looks like. The schematic for the blinking Christmas star may be found in Figure 1. A diac sits at the center of the circuit and is responsible for regulating the charging and discharging of an electrolytic capacitor, which in turn controls the blinking of the star. The remaining portion of the circuit is a solid-state AC relay, and its purpose is to light the bulb that is installed inside the Christmas star. Fig. 1: Twinkle-twinkle X’mas star When the "on" position of switch S1 is selected, the mains voltage is rectified by diode D1, and the capacitor C1 charges by the action of resistor

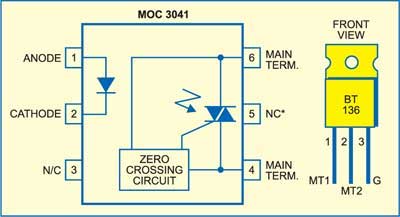

R1. When the voltage across C1 is greater than the diac's breakdown potential, the diac will conduct, and the capacitor will discharge through LED1, R2, and the internal LED of optocoupler MOC3041 (IC1). A brief burst of light is produced as a result of this discharge of energy. Fig. 2: Pin configurations of MOC3041 and TRIAC BT136 When driving triac BT136 with a zero-crossing optocoupler (IC1), practically all radio frequency interference is eliminated. The light bulb illuminates and the triac operates each time the optocoupler is provided with a pulse. Because this circuit is powered directly by the mains, you must exercise extreme caution to prevent a potentially fatal shock. It is recommended that you make use of a capacitor with a rating greater than 63 volts that has a low leakage rate. The rate of flashes can be altered by adjusting the value of the capacitor. Refer to Figure 2 for the pin configurations of the MOC3041 and the triac BT136 before putting the circuit on a general-purpose printed circuit board (PCB). MOC3041 should be used with an IC base.
