Low-Cost Battery Charger

A charger for lead-acid batteries with 12 volts and 7 ampere hours that is both easy to use and inexpensive is presented here. It can also be used to power car engines and lighting system…

shown in the figure. The voltage that has been changed appears between
PROJECT#283
TRACKElectronics
PARTS01
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

Low-Cost Battery Charger is a electronics project. A charger for lead-acid batteries with 12 volts and 7 ampere hours that is both easy to use and inexpensive is presented here. It can also be used to power car engines and lighting system…

Source pages
542-544
Named parts
1
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

NAMED PROJECT INVENTORY1 PART LINES
PARTTYPEQTYREADY
P1N4001PASSIVE1
What's this?Image, role, pros, cons, handling & specifications
1N4001 rectifier diodePASSIVE LEARNING VIEW

1N4001

A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.

What it does here

Its exact value and tolerance determine how the surrounding stage behaves.

Buy / compare this part

Advantages

  • Simple and dependable
  • Low cost
  • Easy to measure before installation

Limitations

  • A wrong value can stop or damage the circuit
  • Ratings must not be exceeded
  • Polarized parts require correct orientation

Handling

  • Measure unclear values
  • Observe capacitor polarity
  • Avoid overheating leads while soldering

Specifications to verify

  • Use the exact model, value, package, and rating listed for 1N4001; similar-looking parts are not always interchangeable.
  • Confirm value, tolerance, power or voltage rating, polarity, and package size.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

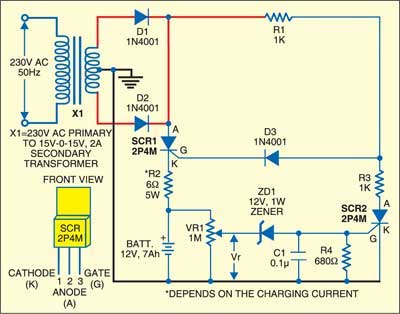

A charger for lead-acid batteries with 12 volts and 7 ampere hours that is both easy to use and inexpensive is presented here. It can also be used to power car engines and lighting systems for emergencies. Diodes 1N4001 (D1) and 1N4001 (D2) make up a full-wave rectifier, as shown in the figure. The voltage that has been changed appears between SCR1 and the battery that needs to be charged. When the battery voltage is low, SCR2 shuts off. When the gate current flows through resistor R1 and diode D3, SCR1 is turned on. This starts charging the battery. Here is a very simple and cheap way to charge lead-acid batteries that are 12V and 7Ah. It can also be used to power car engines and lighting systems for emergencies. As charging continues, the battery voltage rises until it is high enough to turn on the zener diode and trigger SCR2. SCR2 lowers the voltage at the junction of R1 and R2 until it is too low, which turns off SCR1. This happens when the battery is fully charged and the charging

current stops because SCR1 is in an open-circuit state. When the reference voltage Vr drops below the zener diode's breakdown voltage, the regulator starts to charge the battery. When voltage Vr is equal to the zener diode's breakdown voltage, the regulator stops the battery from being overcharged.
