Long-Range IR Transmitter

Within a range of five meters, the vast majority of infrared remote controls function dependably. If you want to create a long-range IR transmitter that is capable of dependable functioni…

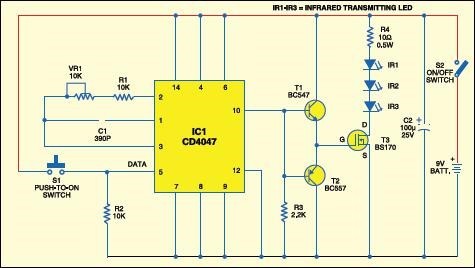

Long-Range IR Transmitter - source illustration from page 554
PROJECT#290
TRACKElectronics
PARTS03
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

Long-Range IR Transmitter is a electronics project. Within a range of five meters, the vast majority of infrared remote controls function dependably. If you want to create a long-range IR transmitter that is capable of dependable functioni…

Source pages
554-556
Named parts
3
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

NAMED PROJECT INVENTORY3 PART LINES
PARTTYPEQTYREADY
SBC547SEMICONDUCTOR1
What's this?Image, role, pros, cons, handling & specifications
BC547 NPN transistorSEMICONDUCTOR LEARNING VIEW

BC547

A semiconductor stage performs switching, amplification, regulation, rectification, or logic.

What it does here

It controls current or signal flow at a defined point in the circuit.

Buy / compare this part

Advantages

  • Fast and efficient
  • Compact
  • Can control larger loads from smaller signals

Limitations

  • Pin order varies
  • Sensitive to overvoltage and reverse polarity
  • May need cooling or bias components

Handling

  • Verify the datasheet pinout
  • Avoid static and soldering heat
  • Check notch, stripe, or flat-face orientation

Specifications to verify

  • Use the exact model, value, package, and rating listed for BC547; similar-looking parts are not always interchangeable.
  • Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
SBC557SEMICONDUCTOR1
What's this?Image, role, pros, cons, handling & specifications
BC557 PNP transistorSEMICONDUCTOR LEARNING VIEW

BC557

A semiconductor stage performs switching, amplification, regulation, rectification, or logic.

What it does here

It controls current or signal flow at a defined point in the circuit.

Buy / compare this part

Advantages

  • Fast and efficient
  • Compact
  • Can control larger loads from smaller signals

Limitations

  • Pin order varies
  • Sensitive to overvoltage and reverse polarity
  • May need cooling or bias components

Handling

  • Verify the datasheet pinout
  • Avoid static and soldering heat
  • Check notch, stripe, or flat-face orientation

Specifications to verify

  • Use the exact model, value, package, and rating listed for BC557; similar-looking parts are not always interchangeable.
  • Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
SCD4047SEMICONDUCTOR1
What's this?Image, role, pros, cons, handling & specifications
CD4047 monostable/astable multivibratorSEMICONDUCTOR LEARNING VIEW

CD4047

A semiconductor stage performs switching, amplification, regulation, rectification, or logic.

What it does here

It controls current or signal flow at a defined point in the circuit.

Buy / compare this part

Advantages

  • Fast and efficient
  • Compact
  • Can control larger loads from smaller signals

Limitations

  • Pin order varies
  • Sensitive to overvoltage and reverse polarity
  • May need cooling or bias components

Handling

  • Verify the datasheet pinout
  • Avoid static and soldering heat
  • Check notch, stripe, or flat-face orientation

Specifications to verify

  • Use the exact model, value, package, and rating listed for CD4047; similar-looking parts are not always interchangeable.
  • Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

Within a range of five meters, the vast majority of infrared remote controls function dependably. If you want to create a long-range IR transmitter that is capable of dependable functioning over a longer range, say 10 meters, the complexity of the circuit will rise. It is necessary to raise the transmitted power by a factor of four in order to expand the range from 5 meters to 10 meters.

Using an infrared (IR) laser pointer as the IR signal source is a good idea if you want to be able to produce a highly directional infrared beam (beam that is very narrow). You won't have any trouble finding the laser pointer in the marketplace. However, because the laser pointer emits such a narrow beam, you need to exercise extreme caution. Even the slightest jolt to the device could cause the beam's alignment to shift, which would result in the loss of contact. Long range IR transmitter Here is a straightforward circuit that will provide you with a rather extensive operating range. The radiated power is amplified by connecting three LEDs that are capable of transmitting infrared light (IR1 through IR3) in series. In addition, you can assemble the IR LEDs inside the reflector of a torch in order to raise the level of directivity and, consequently, the power density. In order to improve the performance of the circuit, a metal oxide semiconductor field effect transistor, or MOSFET, model BS170, has been used. This MOSFET performs the function of a switch and, as a result, minimizes the amount of power that would be lost if a transistor were used instead. A 100 F reservoir capacitor named C2 is installed across the battery supply in order to prevent the voltage from dropping during the 'on' and 'off' operations of the device. When the infrared transmitter is powered by regular batteries, the benefit of this feature will become more apparent. During the "switching on" phase of operations, capacitor C2 provides an additional charge. Because the MOSFET has a large capacitance across the gate-source terminals, a specialized drive arrangement has been made using a npn-pnp Darling ton pair of BC547 and BC557 (as emitter followers) in order to

prevent distortion of the gate drive input. This was done in order to keep the gate drive input from being altered in any way. The data that is going to be transferred is CMOS-compatible, and it is used for modulating the frequency of 38 kHz that is created by CD4047 (IC1). On the other hand, in the circuit that is being displayed here, the IR signal has been modulated and transmitted using the tactile switch S1.

02

Applications for IR Transmitter

Project build note

1. Infrared remote controlling applications, such as AC or TV remote controls, some cellphones, etc., can make advantage of IT Transmitter's transmitting capabilities. 2. Applications in the field of security may make use of IR Transmitters.
