Project build noteFig. 1: Circuit of leakage and continuity tester

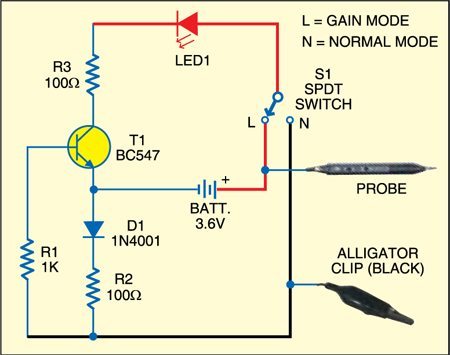

Here is a simple leakage and continuity tester that costs money and can be used in two ways: normal mode and gain mode. Normal continuity testers can't find small leaks in electrolytic capacitors or large resistors, but the gain mode can. This is because the continuity current is amplified in the gain mode. The normal mode is used to test if the device is still working. Circuit to test for continuity In Figure 1, you can see how the leakage and continuity tester works. Because it uses a rechargeable battery (3.6V, 60mAh Ni-Cd), the instrument is small and light enough to fit inside a glue-stick tube. Fig. 2: Proposed arrangement for leakage and continuity tester Using a transistor and a small base resistor R1 (1 kilo-ohm) that doesn't make much of a difference in a closed circuit makes the current flow stronger. Together, the 100-ohm resistor R2 and the signal diode D1 limit the direction and amount of charging. If you connect the probes to a 5V source, you can charge the battery through them. Use an LED1 that is red and see-through to find continuity quickly. Circuit operation
To check for leakage, switch S1 to gain mode, attach the alligator clip to one of the component's terminals, and touch the probe to the other terminal. If LED1 lights up, it means there is a leak. In the same way, flip S1 back to normal mode to check for continuity. Clip the alligator clip to the circuit's ground terminal and touch the probe to the terminal you want to test for continuity or a short. If LED1 shines brightly, it means that the power is still on.

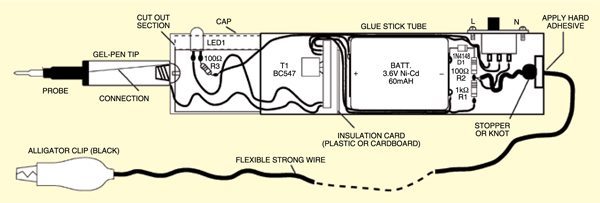

Testing and continuity Figure 2 shows the plan for how this leakage and continuity tester would be set up. First, make the right holes and a rectangular slot in the glue stick tube for the positive probe tip, LED1, and single-pole double-throw switch (SPDT) S1. Except for the alligator clip and the switch, finish the wiring as shown in the schematic diagram. Pull the wires for the alligator clip and the switch out of the glue stick tube, and then finish soldering them. Attach the switch to the tube of glue. In the same way, fasten the positive gel-pen probe tip and then LED1 as shown in Fig. 2. The insulation card can be made from any thick paper or (recommended) plastic. It should be round and have a hole in the middle for the wires to go through. Now you can use your leakage and continuity tester.
