Project build noteAir coolers make a room feel cooler by adding water to the air. An exhaust fan or blower blows this moist air into the room, which makes the room temperature drop. These coolers need water added to them often. Here is a circuit that automatically adds water to an air-cooler tank when the water level falls below a certain level. Circuit and working

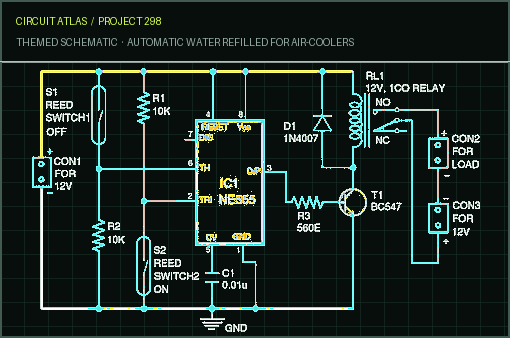

Fig. 1: Circuit diagram of automatic water refilled for air-coolers Fig. 1 shows the circuit diagram for the automatic water refilled for air- coolers. It is made up of a NE555 timer (IC1), a BC547 transistor (T1), two reed switches (S1 and S2), and a few other parts. IC1 is set up like it would be in bi-stable mode, but switch S1 is connected to pin 6 instead of pin 4. As shown in Fig. 2, the two reed switches (S1 and S2) are placed at the top and bottom of the tank. How the circuit works is pretty easy to understand. If the water level drops below what was set, the magnetic float closes the reed switch S2, which pulls pin 2 of IC1 to ground. This causes the voltage on pin 2 to drop below 1/3Vcc, which makes the output of IC1 go high. This gives power to the relay, which turns on the solenoid valve. So, the water starts to flow into the tank. When the tank is full, the magnetic float closes the reed switch S1. The output of IC1 goes low when pin 6 goes above 2/3Vcc. This turns off the power to the relay, which turns off the solenoid valve and stops water from flowing into the cooler tank.

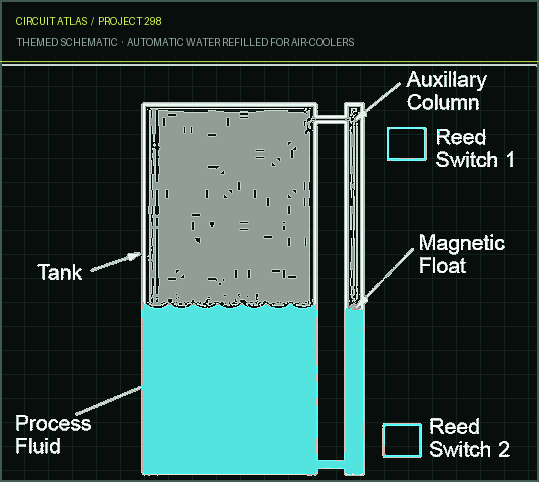

An air cooler's water tank has two holes: one for draining and one for overflowing. The level-sensing system for the water tank works like this: Attach a small PVC pipe to the tank between the two outlets (see Fig. 2). In the PVC pipe, put a magnetic float. Attach one reed switch to the pipe close to where the drain outlet is, and attach the other reed switch close to where the overflow outlet is. Fig. 2: Reed switch arrangement on the cooler tank An inexpensive speaker magnet and a hollow float ball can be used to create the magnetic float. The magnetic float should have a slightly smaller diameter than the PVC pipe so it can float freely from the bottom to the top or the other way around, depending on the water level. If you can, put the pipe in the inside wall of the tank and put the reed switches on the outside. Note: If the load is a 12V solenoid valve, as shown in Fig. 5, power the circuit and the load with a 12V DC supply. If the load is a 230V centrifugal pump, you can also use 230V AC power at CON3 and an external 12V adapter at CON1.
