16-Way Clap-Operated Switch

You don't even have to get out of bed to use this switch. All you have to do is clap. You just have to clap near the microphone, which you can keep by your bed. You have 16 ways to turn o…

16-Way Clap-Operated Switch - source illustration from page 79
PROJECT#030
TRACKElectronics
PARTS03
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

16-Way Clap-Operated Switch is a electronics project. You don't even have to get out of bed to use this switch. All you have to do is clap. You just have to clap near the microphone, which you can keep by your bed. You have 16 ways to turn o…

Source pages
79-79
Named parts
3
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

NAMED PROJECT INVENTORY3 PART LINES
PARTTYPEQTYREADY
PNEARPART1
What's this?Image, role, pros, cons, handling & specifications
16-Way Clap-Operated Switch - source illustration from page 79PART LEARNING VIEW

NEAR

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for NEAR; similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
SBC547SEMICONDUCTOR1
What's this?Image, role, pros, cons, handling & specifications
BC547 NPN transistorSEMICONDUCTOR LEARNING VIEW

BC547

A semiconductor stage performs switching, amplification, regulation, rectification, or logic.

What it does here

It controls current or signal flow at a defined point in the circuit.

Buy / compare this part

Advantages

  • Fast and efficient
  • Compact
  • Can control larger loads from smaller signals

Limitations

  • Pin order varies
  • Sensitive to overvoltage and reverse polarity
  • May need cooling or bias components

Handling

  • Verify the datasheet pinout
  • Avoid static and soldering heat
  • Check notch, stripe, or flat-face orientation

Specifications to verify

  • Use the exact model, value, package, and rating listed for BC547; similar-looking parts are not always interchangeable.
  • Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
ST1, T2, T3, T4, T5 - transistor stages identified in the circuitSEMICONDUCTOR1
What's this?Image, role, pros, cons, handling & specifications
16-Way Clap-Operated Switch - source illustration from page 79SEMICONDUCTOR LEARNING VIEW

T1, T2, T3, T4, T5 - transistor stages identified in the circuit

A semiconductor stage performs switching, amplification, regulation, rectification, or logic.

What it does here

It controls current or signal flow at a defined point in the circuit.

Buy / compare this part

Advantages

  • Fast and efficient
  • Compact
  • Can control larger loads from smaller signals

Limitations

  • Pin order varies
  • Sensitive to overvoltage and reverse polarity
  • May need cooling or bias components

Handling

  • Verify the datasheet pinout
  • Avoid static and soldering heat
  • Check notch, stripe, or flat-face orientation

Specifications to verify

  • Use the exact model, value, package, and rating listed for T1, T2, T3, T4, T5 - transistor stages identified in the circuit; similar-looking parts are not always interchangeable.
  • Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

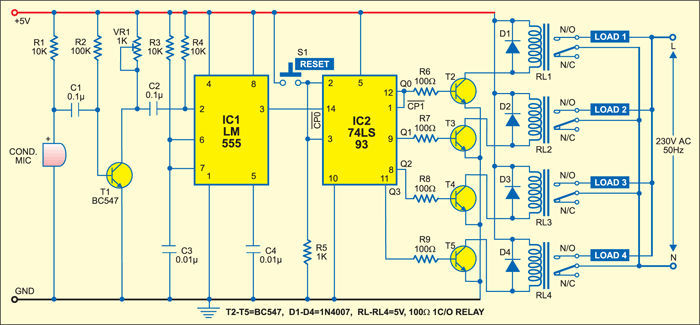

You don't even have to get out of bed to use this switch. All you have to do is clap. You just have to clap near the microphone, which you can keep by your bed. You have 16 ways to turn on or off up to four different pieces of electrical equipment, like a TV, fan, light, etc. Clap Operated Switch Circuit This circuit is made up of the 555 timer IC (IC1), the 74LS93 CMOS IC (IC2), and five BC547 npn transistors (T1, T2, T3, T4 and T5). The pre-amplifier is the transistor T1, and the rest are used to drive the relays. At the base of transistor T1, which is biased by resistor R1, there is a small condenser microphone (10 kilo-ohms). The microphone turns the sound of clapping into electricity, which transistor T1 amplifies. The output of the transistor goes to the monostable circuit, which is made up of wires around IC 555. The timer's output pin 3 is hooked up to the clock input of the 74LS93 divide-by-16 IC. Through 100ohm resistors, the outputs of IC2 are sent to npn transistors T2, T3, T4, and T5 to drive relays RL1, RL2, RL3, and RL4 that are connected to appliances 1 through 4. The back electromagnetic field (EMF) made by the relays can damage the transistors. Freewheeling diodes D1 through D4 connected across the relays protect the transistors from this EMF.
