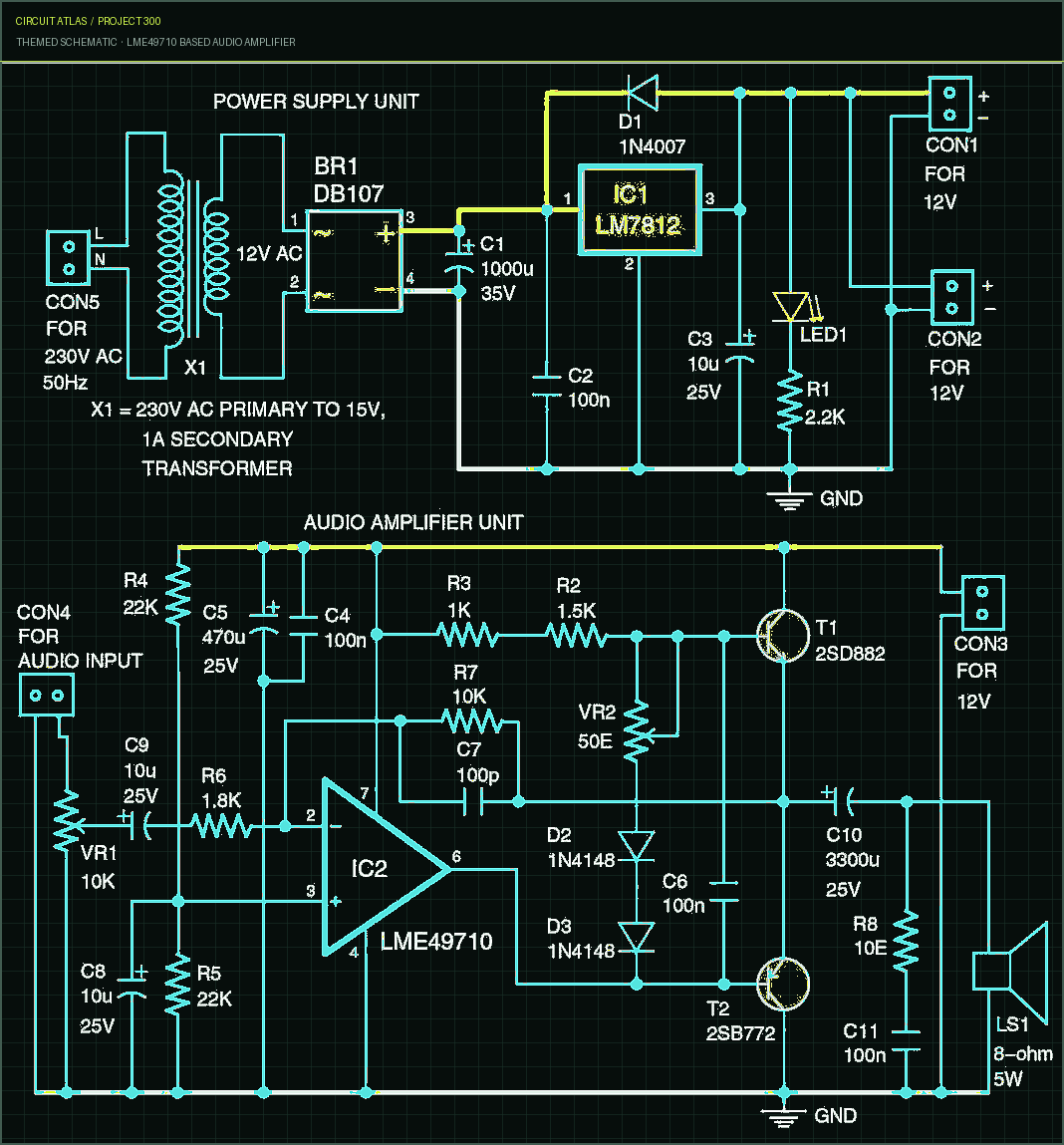

It's great to listen to music on a system you made yourself. Good-quality audio amplifier circuits can be made with a small number of parts. An LME49710-based audio amplifier is being talked about here. Fig. shows the prototype that the author made. 1. LME49710 based audio amplifier circuit Figure 1 shows that. 2, the power amplifier based on the LME49710 chip has a power supply unit and an audio amplifier unit.

The linear power supply is made up of the transformer X1, the bridge rectifier DB107 (BR1), the 12V voltage regulator LM7812 (IC1), and a few other parts. The primary of X1 goes from 230V AC to 15V, 1A. AC is turned into pulsating DC by DB107, which is then filtered by capacitors C1 and C2 and sent to a 12V regulator (IC1). Diode 1N4007 (D1) is used to protect IC1 from voltage going in the wrong direction. LED1 shows if the power is on or off. LED1 is limited by the amount of current that flows through resistor R1. The LME49710 (IC2) is a high-performance, high-

fidelity, audio-operational amplifier that is the center of the audio amplifier circuit. The 12V power supply is hooked up to the power pins on the op- amp. For the single-supply operation to work, the non-inverting terminal of op-amp IC2 must have a virtual ground with a voltage of Vcc/2 = 12V/2 = 6V. The circuit can be made with a simple voltage divider made of resistors R4 and R5 and a capacitor C8 that lets the voltage flow around the divider. The noise is decoupled at the IC level by capacitors C4 and C5. C5 is an electrolytic decoupling capacitor that cuts down on low- and mid-frequency noise, and C4 cuts down on high-frequency noise in the power supply lines. Connector CON4 is where audio comes in. At the input stage, capacitor C9 blocks DC voltage, and potmeter VR1 controls how loud the sound is. The gain of amplifier IC2 is set by R7 and R6. R7 and C7 limit the bandwidth of the amplifier and keep it linear. Resistors R2 and R3 set the bias current of the diodes D2 and D3 that make up the Vbe multiplier, and the potentiometer VR2 helps adjust the bias current. Vbe multiplier is the DC bias voltage that makes up for the drop in voltage between the base and emitter when output transistors T1 and T2 turn on. DC bias also keeps T1 and T2 on even when the speaker or load isn't getting any current. T1 and T2 power the speaker through C10, which also stops DC from getting in. High-frequency noise that comes from speaker LS1 is sent on a low-impedance path by resistor R8 and capacitor C11. Make it a stereo amplifier by making a second copy of the same circuit. The second amplifier unit can use the same power source at CON2.

Introductio n The first ever Arduino controller board was born in 2005 at the teaching space of the Interactive Design Institute in Ivrea, Italy. The Interactive Design Institute has an article about a wiring design by a Colombian scholar named Hernando Barragan. The name of the proposal thesis was “ Arduino: The Revolution of Open Hardware." Of course, it sounded slightly different from the typical proposal, but nobody would have believed that it would carve a niche in the domain of electronics. The Arduino software IDE was developed by David Mellis and was based on Wiring. Previously, Gianluca Martino and Tom Igoe joined the development of Arduino Mission, and all five are well-known as the actual creators of the Arduino board. They needed a controller that was straightforward, easy to associate with different kinds of modules and components (such as LEDs, motors, relays, and sensors), considerably weightless, also easy to access in the open-source community, and simple to program. It also wanted to be affordable and easily accessible because students and artists aren't known for having a lot of money. They chose the Atmel AVR type of 8-bit microcontroller (MCU or C) devices and aimed a

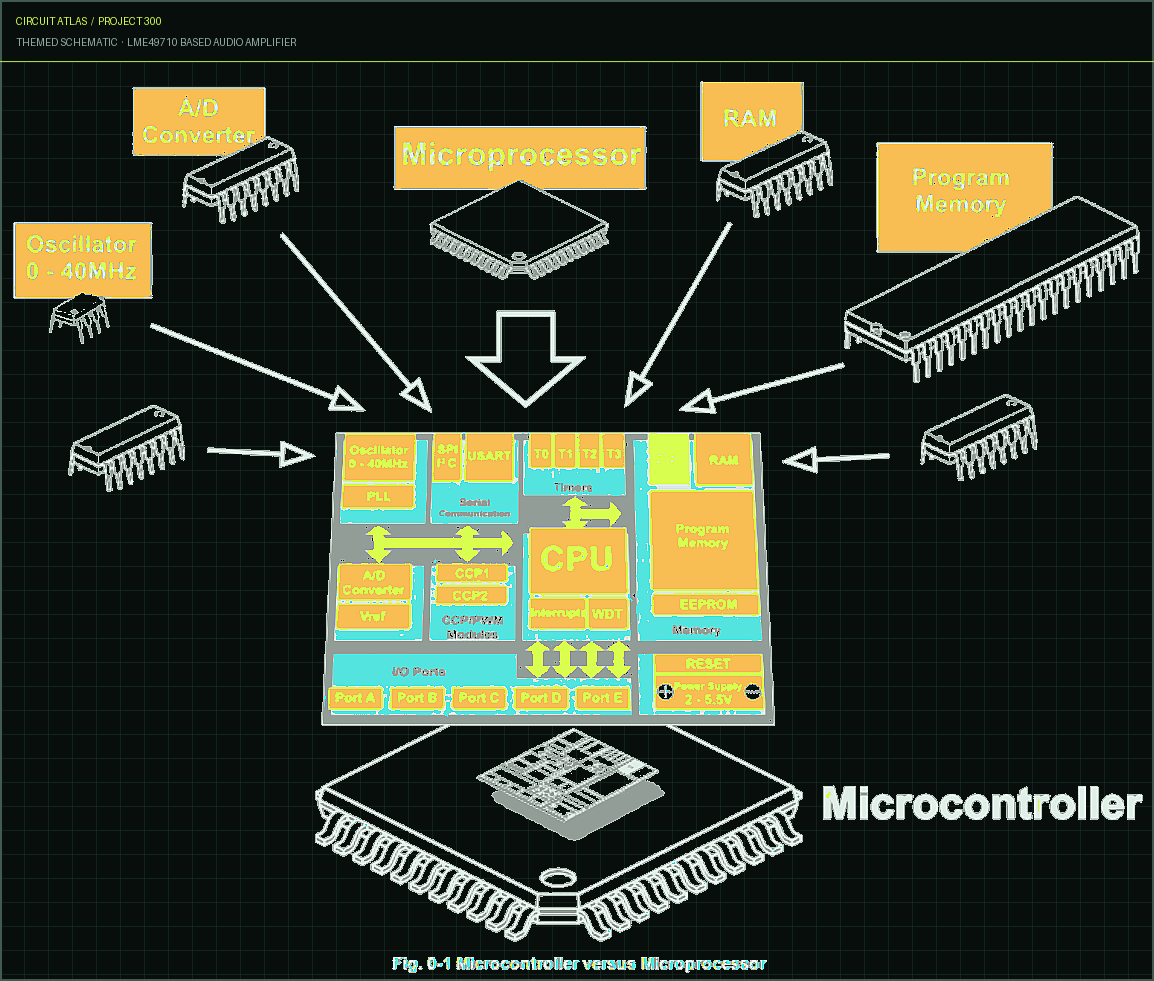

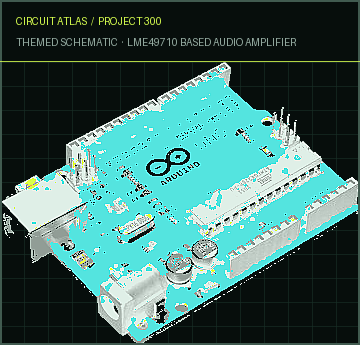

self-sufficient circuit board with easy-to-use connections, wrote bootloader firmware for the microcontroller on paper, and finished it all in a basic integrated development environment (IDE) that used programs called " sketches." The result was the Arduino hardware. Microcontroller A minicomputer on a single chip, having a processor, input/output memory, an analog to digital converter (ADC), and a digital to analog converter (DAC), is generally "embedded" inside some micro device that they control. A microcontroller is often small and cost-efficient. Development Board A printed circuit board that contains a microprocessor and little or no hardware dedicated to a user interface and is designed to facilitate work with a specific microcontroller is a development board. On the development

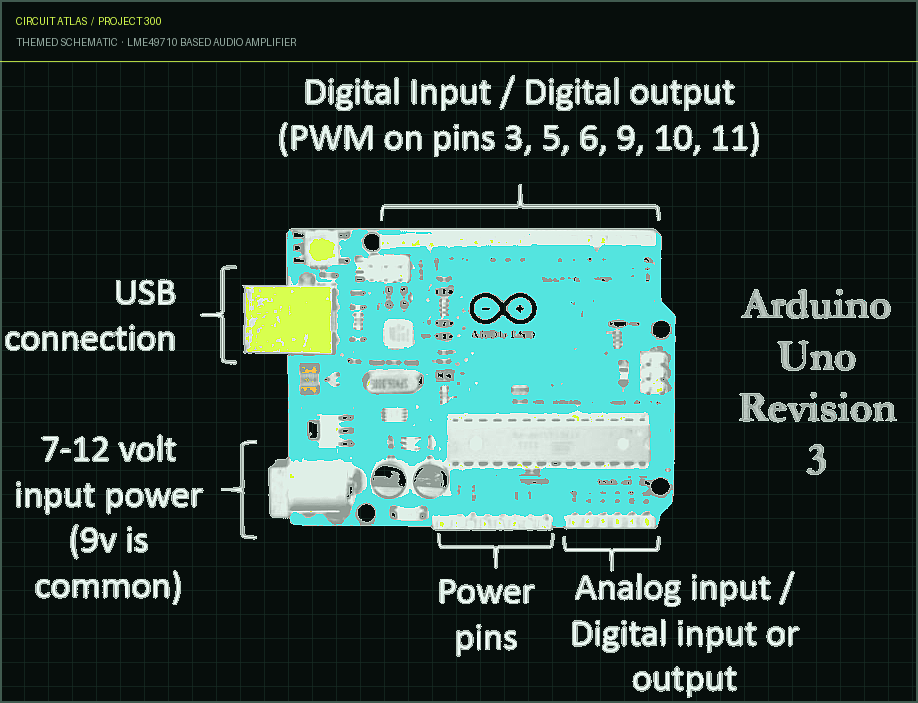

Power circuit Simple input; usually buttons and LEDs Programming interface I/O pins

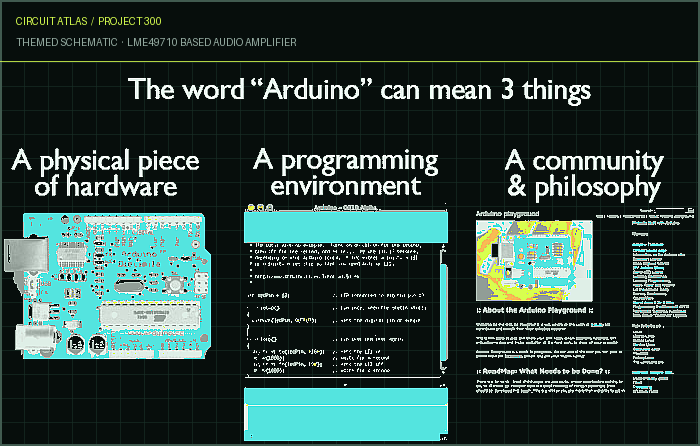

1. Arduino 2. BeagleBone Black 3. Raspberry Pi 4. Intel Galileo 5. Goldilocks 6. pcDuino 7. Uruk 8. ExtraCore What is the Arduino? Why Arduino Developed? Physical Computing - by means of components which able to interact with people, besides by the world around us

The Arduino was initially developed for artists, inventors and designers, to make prototype interactive displays Intended for non-scientists, less knowledge is required to learn. Minimalist programming a " Forgiving " microcontroller board capable of dealing with a wide range of wiring-connection errors What can Arduino be used to teach? To understand preliminary electronics (voltage, current, resistance) What electronic components, sensors, and actuators work Elementary programming and troubleshooting Design of simple scientific devices and equipment Overcome the challenges of interacting with users via a DIY project (e.g., messages, formatting numbers, ease of use, etc.) Statistics and difference in data collecting and visualization

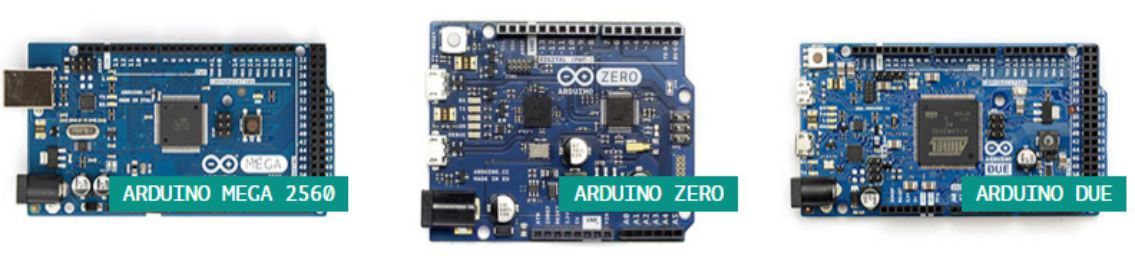

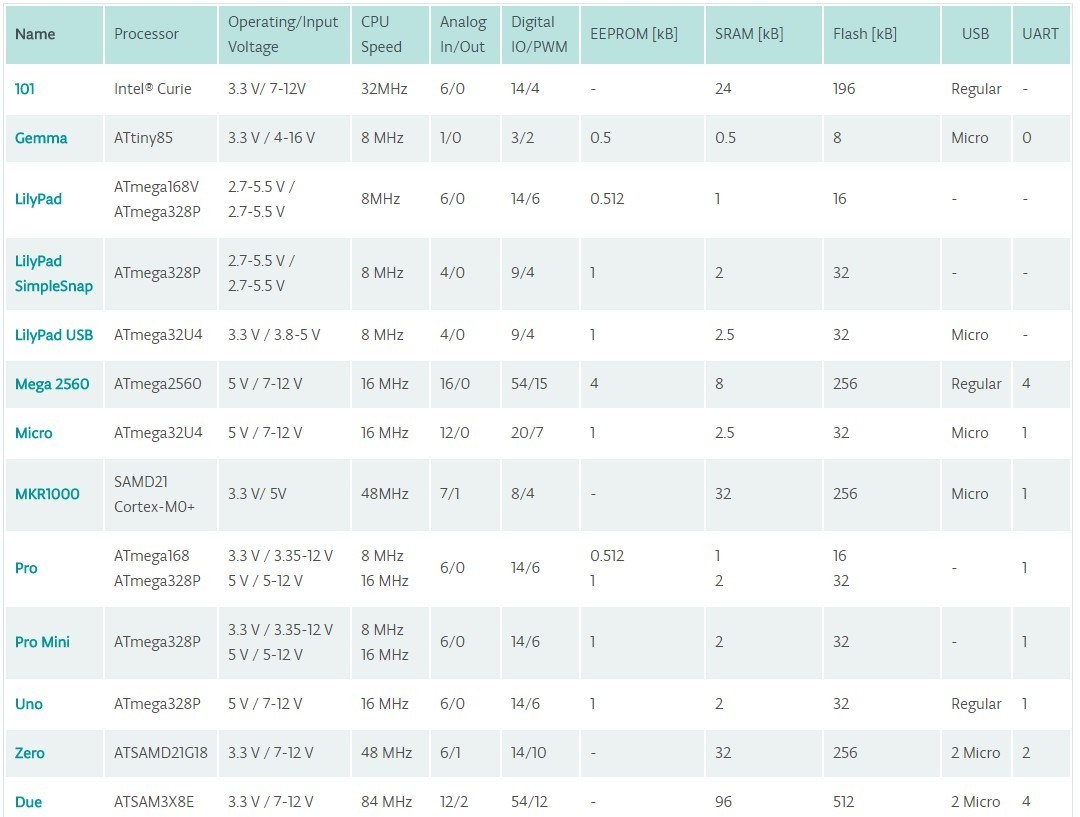

The microcontrollers used in the various models of Arduino

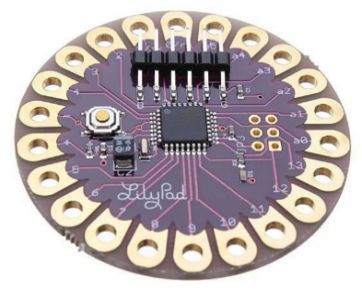

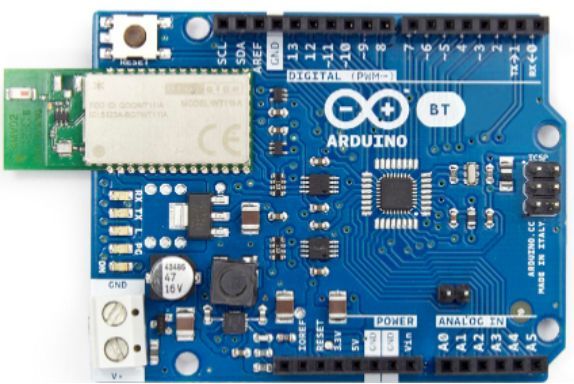

Arduino LilyPad The LilyPad Arduino is a microcontroller board intended for wearables and e-textiles. LilyPad is well known for its clothing-based projects. It can be stitched to textile material, fabrics, and cloth, and conductive textile fiber can also be used to mount power sources, sensors, and actuators. Arduino BT The Arduino BT is an Arduino board that has a Bluetooth module built in. This module can be used for different types of wireless communication and remote control. Arduino Esplora

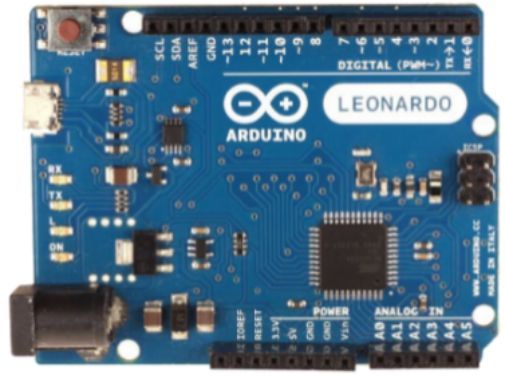

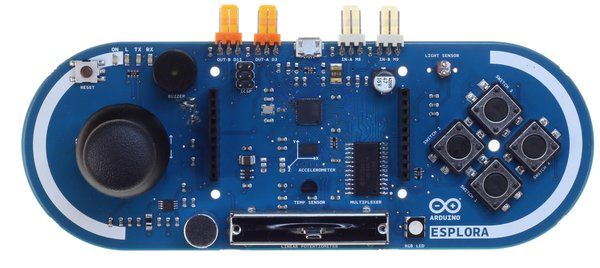

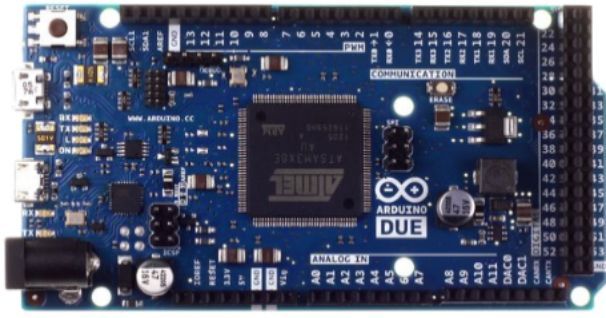

Esplora is an Arduino board that can be used as a game controller and is made for easy gaming. The Esplora Arduino board consists of a joystick, linear potentiometer (slider), microphone, buttons for control, a temperature sensor, a light sensor, and a three-axis accelerometer, not the typical set of input/output pins. Leonardo Compared to the Arduino Uno, Leonardo is a minor upgrade. It has built in Micro USB compatibility Utilized to PC as a mouse or keyboard Arduino Due Compared to the Arduino Uno, the Arduino Due has a much faster processor and a lot more analog and digital pins. Due is similar to the Arduino Mega Furthermore, it operates on both 3.3 and 12 volts. Arduino Nano

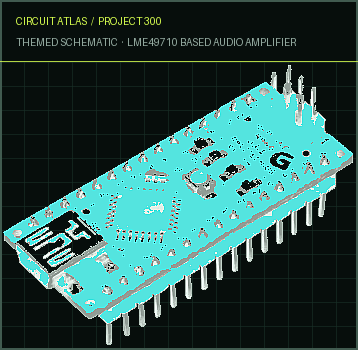

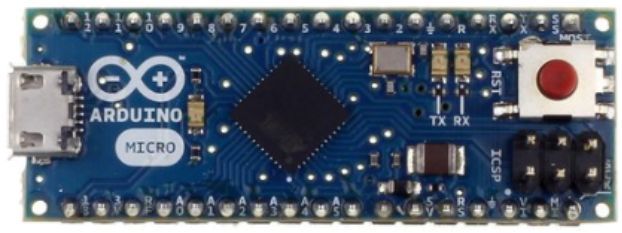

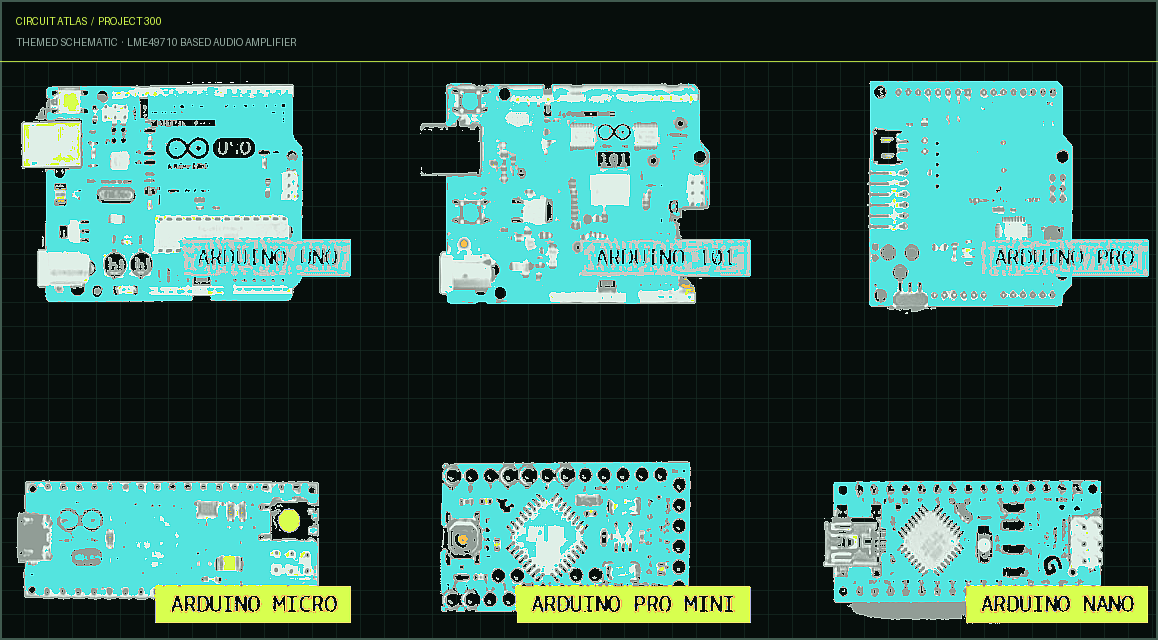

The Arduino Nano is a small microcontroller breadboard embedded model with a Micro USB port built in. It is a breadboard-friendly, full-featured microcontroller with all of the electrical features of the Die/Due/Uno boards plus extra digital and analog I/O pins and an onboard +5V AREF jumper. Arduino Micro When size matters: the three smallest boards ever created by Arduino developers, the Micro, Nano, and Mini. Arduino Micro comprises all functionality of Uno and Leonardo Arduino micro is simply working on a breadboard What are the benefits of using Arduino UNO?

Arduino is an open-source electronic prototyping board based on flexible, easy-to-practice hardware and software. We can get Arduino for less than $10.00 if you assemble your own board or buy a clone. Cross Platform IDE (found in operating systems like Windows, MAC, and Linux), Open-source IDE, and extensions.

What approach have I followed to learn Arduino? 1. Start simple - build confidence and learn by doing small projects before going to difficult ones. 2. Practice components that will capture the thoughtfulness and imagination of the students 3. Build a new project by modifying the previous one. 4. Make a “problem ” for pupils to resolve that THEY will understand through practical however not too complicated

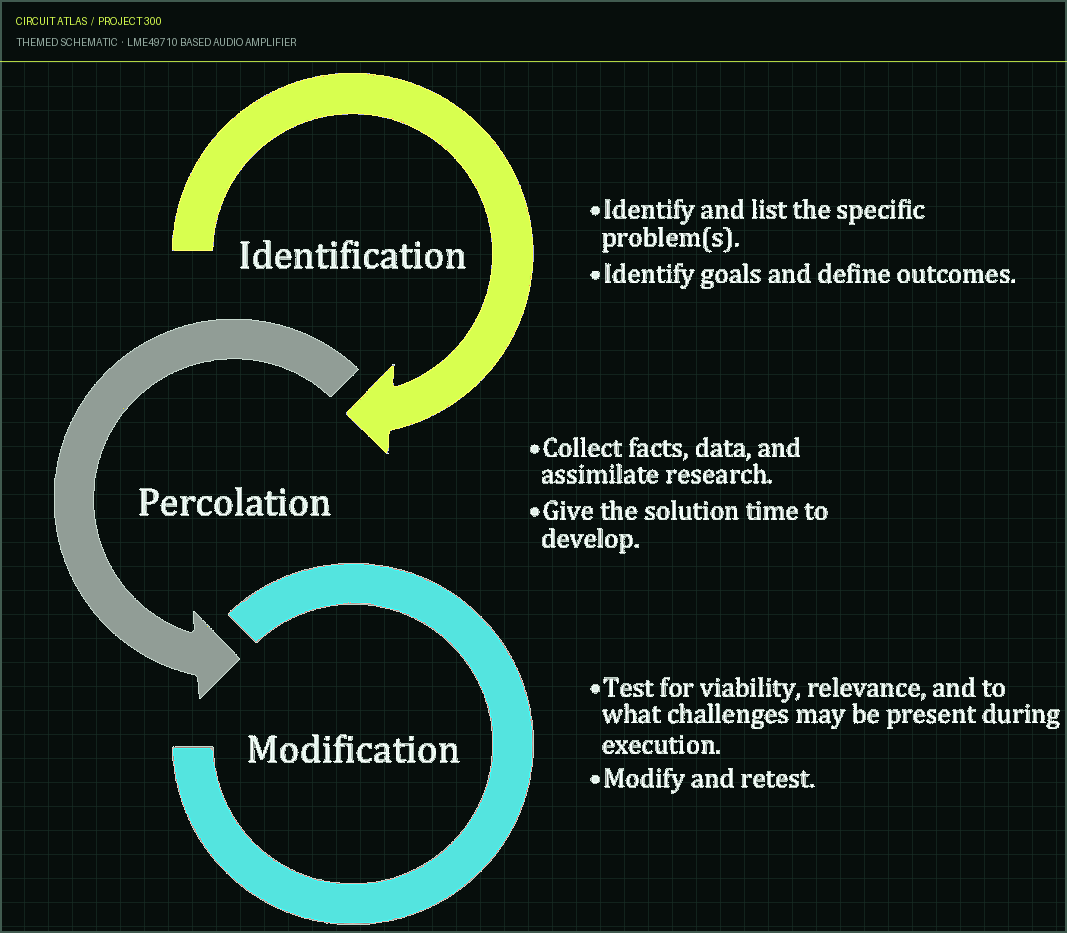

5. Find problems in your society, gather knowledge from it, make an idea, then instantly do a development with it, and give a solution with your project. 6. Teach pupils just how to find required info from datasheets (e.g., tolerances, current limits, etc.) and, likewise learn from the internet Identification The first step in beginning a project is identifying, defining, and articulating the problem. The use of brainstorming and mind maps is valuable for some of the more difficult problems. Percolation Data collection, research, and idea exploration are the next steps. The main reason that innovation is so difficult is because many ideas in a vacuum may not seem realistic or appropriate.
