STEP 1 / 6ARDUINO

Arduino Bluetooth with MATLAB for Wireless Communication

This protocol is the most popular solution for wireless communication in embedded systems due to its simplicity and ability to support short range communication. Besides being used to tra…

Start with the overview ↓Preview circuit ↗

Circuit Atlas themed schematic for Arduino Bluetooth with MATLAB for Wireless Communication

PROJECT#339

TRACKArduino

PARTS26

STAGES06

STEP 1 / 6 Â· Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

Project details

Arduino Bluetooth with MATLAB for Wireless Communication is a arduino project. This protocol is the most popular solution for wireless communication in embedded systems due to its simplicity and ability to support short range communication. Besides being used to tra…

Source pages: 678-681
Named parts: 26
Build goal: Working, tested prototype

Tools you need

Digital multimeter
Wire stripper and side cutters
Soldering iron with a fine tip
Current-limited bench supply
Computer with a data-capable USB cable

Use eye protection, good lighting, and a clean insulated surface throughout the build.

Safety precautions

Disconnect every power source before changing a connection.
Check component polarity, pinout, and supply voltage twice.
Use a current limit for the first power-up.
Keep liquids, loose metal, and uninsulated wires away from the bench.

Ready to continue?

STEP 3 / 6 Â· Circuit / schematics

Connect one verified path at a time.

Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.

INTERACTIVE CIRCUIT CANVAS

Trace this circuit.

Arduino Bluetooth with MATLAB for Wireless Communication: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.

Source-derived layout · 15 of 26 named lines visualized · 0 exact library matches

POWERNEUTRAL / 0VEARTH (WHEN DOCUMENTED)SIGNALSHover a wire for its pins and purpose · use Source to verify exact values

Trace before wiring

Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.

Connect with power off

Make short, labelled connections and share a common ground only where the schematic requires it.

Inspect every joint

Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.

Open all source diagrams and build views 3 visuals

Ready to continue?

STEP 4 / 6 Â· Source code

Prepare, upload, and verify the program.

Follow the same software sequence every time: verify connections, prepare the toolchain, compile, and upload.

How to connect

Match every controller label to the circuit view and source pin map.
Join grounds before signal wires when separate low-voltage supplies are used.
Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

Software preparation

Install the current Arduino IDE or the software named in the guide.
Install the correct board package and required libraries.
Select the exact board, processor, and serial port.
Compile once before connecting external loads.

How to upload code

Connect the board with a data-capable USB cable.
Open the documented sketch and confirm configuration values.
Compile, fix the first reported error, and upload.
Test with external loads disconnected first.

Common mistakes

Wrong port, missing library, incorrect board selection, boot pins held in the wrong state, or a busy serial port.

Components Required

MATLAB installed Laptop (Preference: R2016a or above versions)
Arduino UNO, Bluetooth Module (HC-05)
LED (any color)
Resistor (330 ohm), Jumper Wires
The Arduino UNO needs to be uploaded with the given code and then
MATLAB Command Window should be used to start programming.
#include <SoftwareSerial.h>
int TxD;
int RxD;
int data;
SoftwareSerial bluetooth(TxD, RxD);
void setup() {
Serial.begin(9600);
bluetooth.begin(9600);
}
void loop()
{
if(bluetooth.available() > 0)
{
data = bluetooth.read();

Serial.print(data);
Serial.print("\n");
if(data == '1')
{
digitalWrite(11, HIGH);
}
else if(data == '0')
{
digitalWrite(11, LOW);
}}}

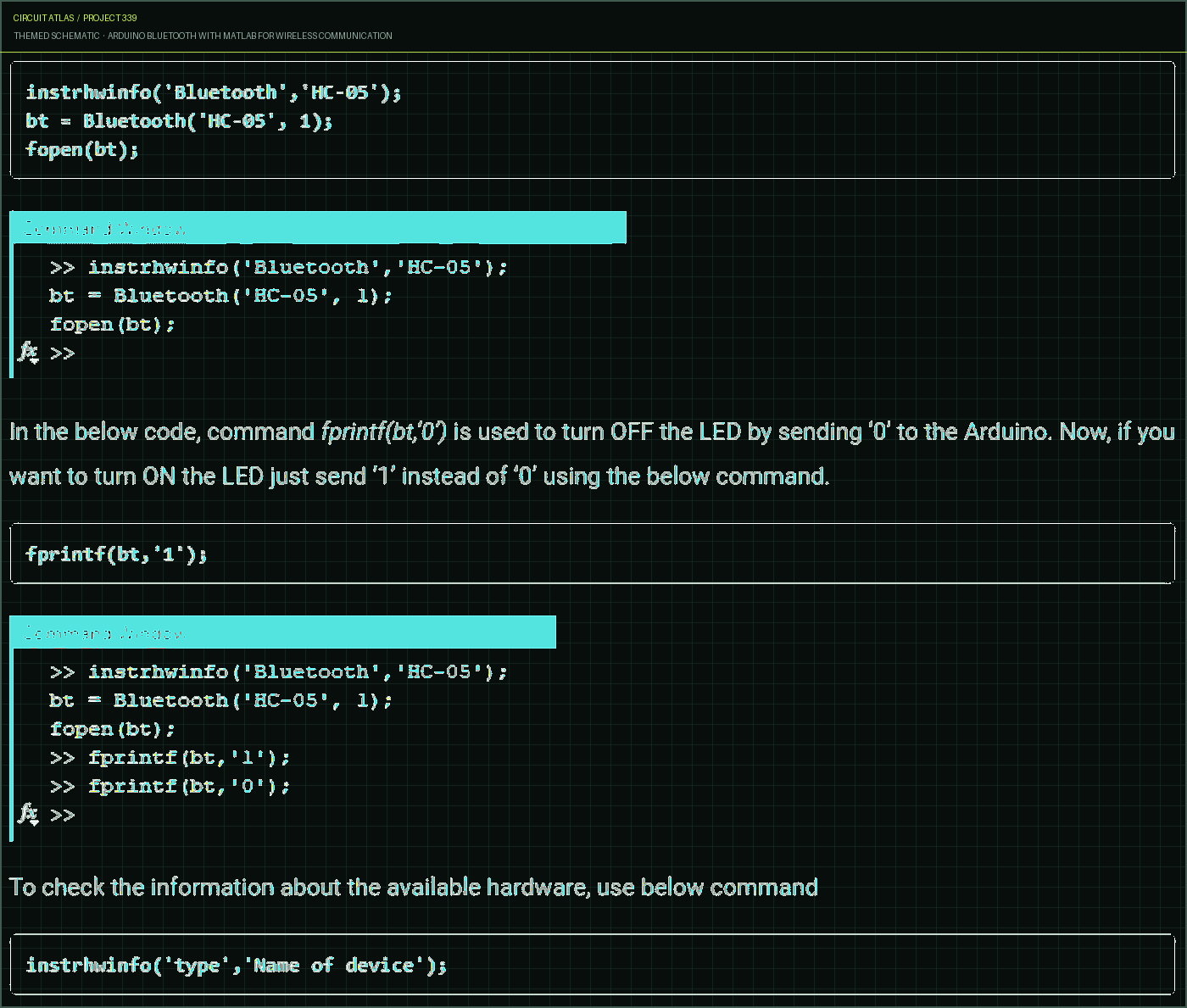

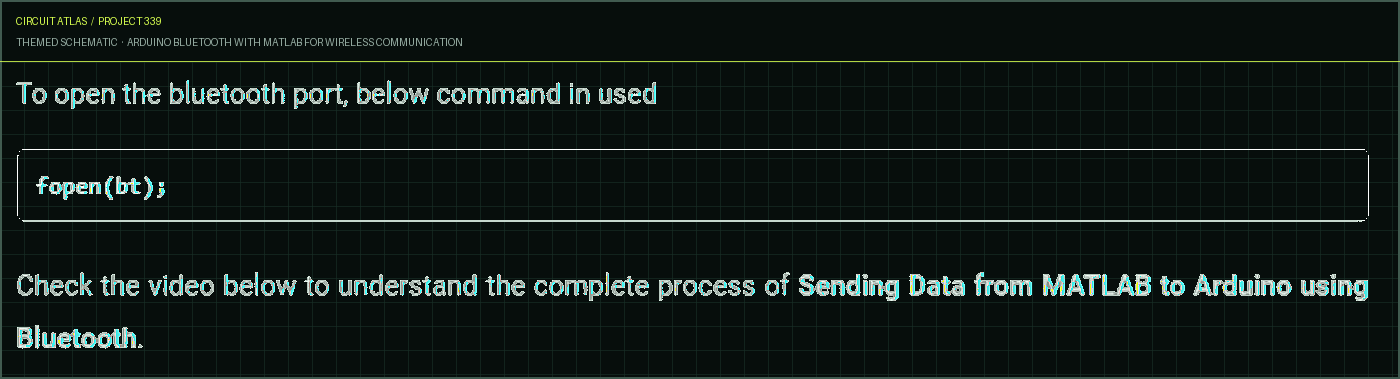

Then, copy and paste the below MATLAB code in the Command window
for Bluetooth communication between MATLAB and Arduino.

Arduino can be programmed in MATLAB. For MATLAB to run on Arduino
target hardware, you need to install a support package from add-ons. The
Bluetooth modules HC-05 or HC-06 can be used.
For more information about Bluetooth communication through MATLAB,
please refer to the below link
https://www.mathworks.com/help/instrument/reading-and-writing-
data-over-the-bluetooth-interface.html

Ready to continue?

STEP 5 / 6 Â· Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

Power and regulation
Controller or processing stage
Inputs and sensors
Outputs and loads
Enclosure and strain relief

TEST

Power up safely

Inspect unpowered continuity first
Apply the lowest safe current limit
Measure supply rails before signals
Add one load at a time
Record expected and actual results

TROUBLESHOOT

Work from simple to complex

Confirm power, ground, polarity, and orientation
Compare each pin with the source
Test inputs separately from outputs
Replace only one variable at a time
Power off before every correction

PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

Project overview

Project build note

This protocol is the most popular solution for wireless communication in embedded systems due to its simplicity and ability to support short range communication. Besides being used to transfer data between two devices but also to control them wirelessly, Bluetooth is also used for controlling certain devices. Bluetooth is built into almost every electronic gadget nowadays, so securing Bluetooth control in your embedded app is a wise choice.

Circuit Diagram

Project build note

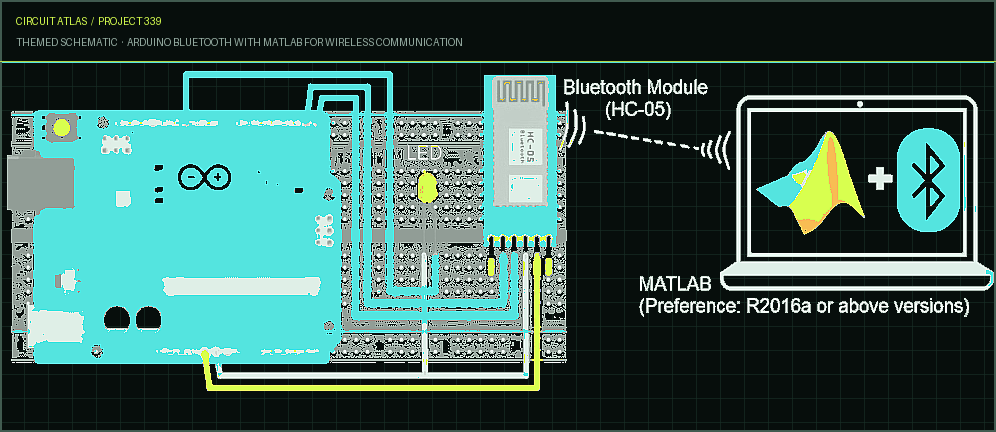

The following schematics are needed to communicate between MATLAB and Arduino using Bluetooth.

Using Bluetooth in MATLAB and wireless communication, we will learn how to accomplish this in this tutorial. On one side, we will use Bluetooth in MATLAB, and on the other, we will use HC-05 with Arduino. MATLAB and Arduino can communicate via Bluetooth in two ways, one via the command window and the other via MATLAB GUI. Both of these methods use the same Arduino code.

Ready to continue?

PROJECT ACHIEVED

You built Arduino Bluetooth with MATLAB for Wireless Communication.

You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.

NEXT ARDUINO ADVENTURE

Smartphone Controlled Arduino Mood Light with Alarm

Ready to reuse what you learned in another project from the same track?

Start this project →

Browse all 500 projects

CIRCUITS & BUILD VISUALS

Themed schematics and project views.

Circuit drawings are rebuilt in the Circuit Atlas visual system while preserving the documented topology, labels, and values. Prototype photographs remain available as build references.

INTERACTIVE CIRCUIT CANVAS

Trace this circuit.

Source-derived layout · 15 of 26 named lines visualized · 0 exact library matches

POWERNEUTRAL / 0VEARTH (WHEN DOCUMENTED)SIGNALSHover a wire for its pins and purpose · use Source to verify exact values

COMPLETE PROJECT NOTES

Build it, step by step.

This is the full project content reorganized as readable web sections. Nothing is hidden behind a document viewer.

Project overview

Project guide section

Circuit Diagram

Project guide section

The following schematics are needed to communicate between MATLAB and Arduino using Bluetooth.

Components Required

Circuit Atlas reference implementation

MATLAB installed Laptop (Preference: R2016a or above versions)
Arduino UNO, Bluetooth Module (HC-05)
LED (any color)
Resistor (330 ohm), Jumper Wires
The Arduino UNO needs to be uploaded with the given code and then
MATLAB Command Window should be used to start programming.
#include <SoftwareSerial.h>
int TxD;
int RxD;
int data;
SoftwareSerial bluetooth(TxD, RxD);
void setup() {
Serial.begin(9600);
bluetooth.begin(9600);
}
void loop()
{
if(bluetooth.available() > 0)
{
data = bluetooth.read();

Serial.print(data);
Serial.print("\n");
if(data == '1')
{
digitalWrite(11, HIGH);
}
else if(data == '0')
{
digitalWrite(11, LOW);
}}}

Then, copy and paste the below MATLAB code in the Command window
for Bluetooth communication between MATLAB and Arduino.

Arduino can be programmed in MATLAB. For MATLAB to run on Arduino
target hardware, you need to install a support package from add-ons. The
Bluetooth modules HC-05 or HC-06 can be used.
For more information about Bluetooth communication through MATLAB,
please refer to the below link
https://www.mathworks.com/help/instrument/reading-and-writing-
data-over-the-bluetooth-interface.html

Arduino Bluetooth with MATLAB for Wireless Communication

Know the mission before touching a wire.

Project details

Tools you need

Safety precautions

Gather, identify, and understand every part.

MATLAB installed Laptop (Preference: R2016a or above versions)

Advantages

Limitations

Handling

Specifications to verify

Arduino UNO, Bluetooth Module (HC-05)

Advantages

Limitations

Handling

Specifications to verify

LED (any color)

Advantages

Limitations

Handling

Specifications to verify

Resistor (330 ohm), Jumper Wires

Advantages

Limitations

Handling

Specifications to verify

#include <SoftwareSerial.h>

Advantages

Limitations

Handling

Specifications to verify

int TxD

Advantages

Limitations

Handling

Specifications to verify

int RxD

Advantages

Limitations

Handling

Specifications to verify

int data

Advantages

Limitations

Handling

Specifications to verify

void setup() {

Advantages

Limitations

Handling

Specifications to verify

Serial.begin(9600)

Advantages

Limitations

Handling

Specifications to verify

bluetooth.begin(9600)

Advantages

Limitations

Handling

Specifications to verify

void loop()

Advantages

Limitations

Handling

Specifications to verify

if(bluetooth.available() > 0)

Advantages

Limitations

Handling

Specifications to verify

data = bluetooth.read()

Advantages

Limitations

Handling

Specifications to verify

Serial.print(data)

Advantages

Limitations

Handling
