Interfacing nRF24L01 with Arduino: Controlling Servo Motor
Wireless communication is becoming increasingly ubiquitous, with more machines/devices communicating on cloud-based platforms such as Internet of things (IoT), Industry 4.0, Machine to Ma…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Interfacing nRF24L01 with Arduino: Controlling Servo Motor is a arduino project. Wireless communication is becoming increasingly ubiquitous, with more machines/devices communicating on cloud-based platforms such as Internet of things (IoT), Industry 4.0, Machine to Ma…
- Source pages
- 684-687
- Named parts
- 1
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
- Computer with a data-capable USB cable
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
NETWORKS
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for NETWORKS; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.

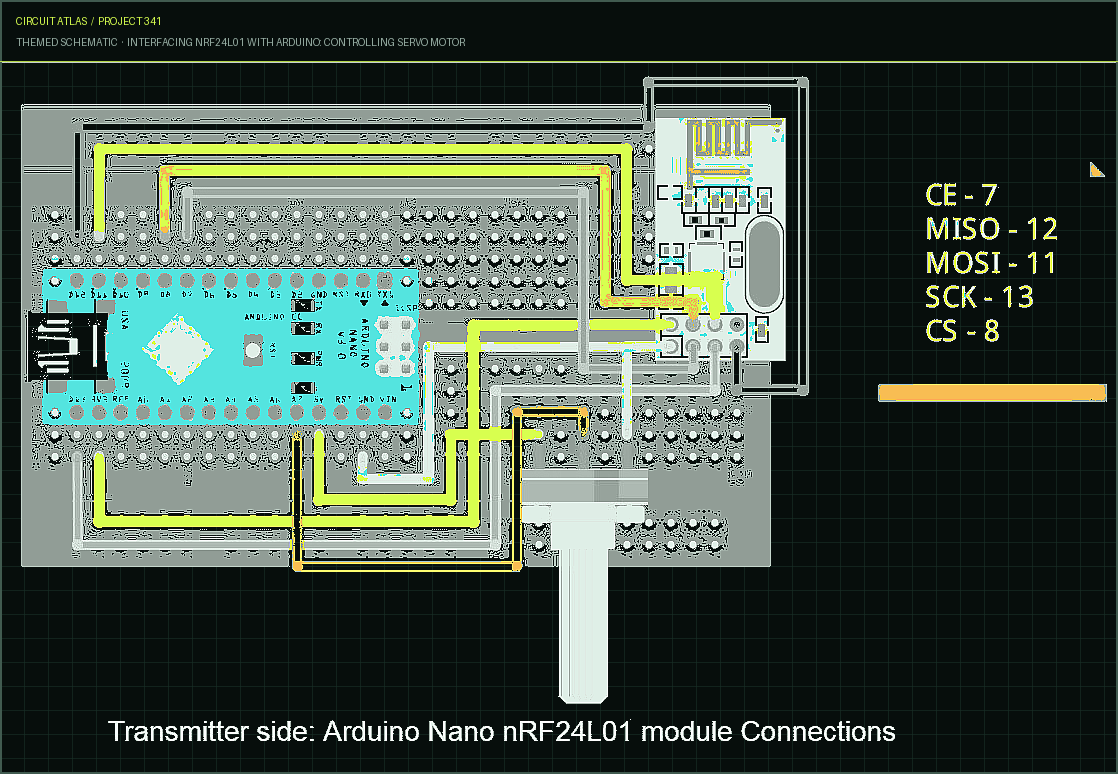

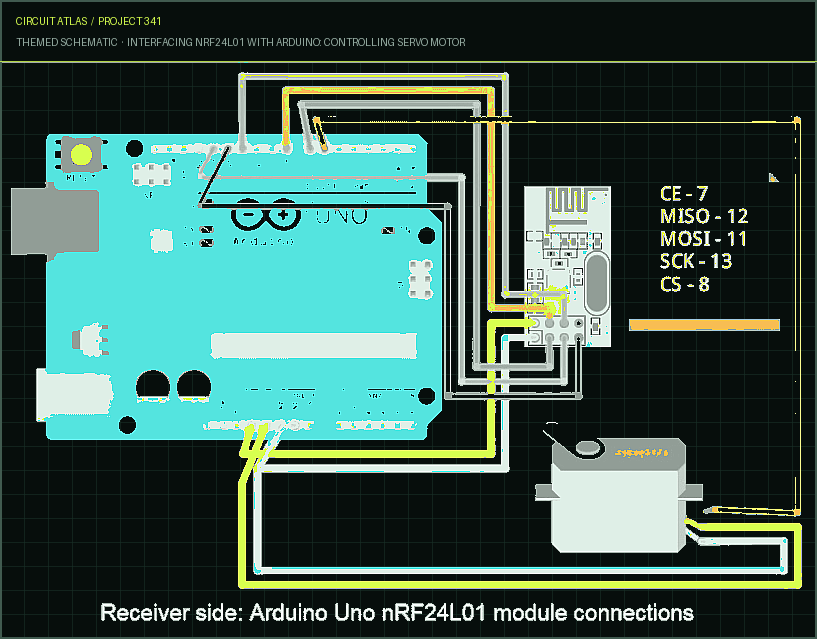

Trace this circuit.
Interfacing nRF24L01 with Arduino: Controlling Servo Motor: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 4 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.

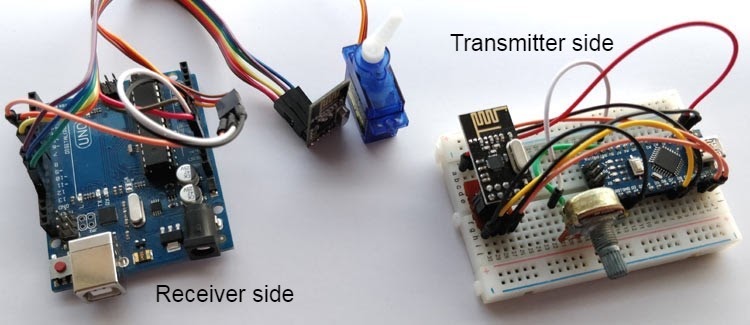

Project overview
Project build noteWireless communication is becoming increasingly ubiquitous, with more machines/devices communicating on cloud-based platforms such as Internet of things (IoT), Industry 4.0, Machine to Machine communication, etc. Bluetooth Low Energy (BLE 4.0), Zigbee, ESP43 Wi-Fi modules, 433MHz RF modules, Lora, nRF etc. are some of the wireless communication systems that engineers use, and their choice of medium is determined by the type of application. Most popular among all is the nRF24L01, which is a radio frequency-based interconnect system. In addition, modules of this type operate on 2.4GHz bands with baud rates between 250Kbps and 2Mbps and have been legal throughout the world. They claim that they can also transmit and receive 100-meter distances with proper antennas. So, what will this tutorial teach you? This tutorial will give you a deeper understanding of how to successfully interface this module with microcontroller platforms such as Arduino. This module also provides solutions to some of the problems that may occur when using it. Getting to know the nRF24L01 RF Module

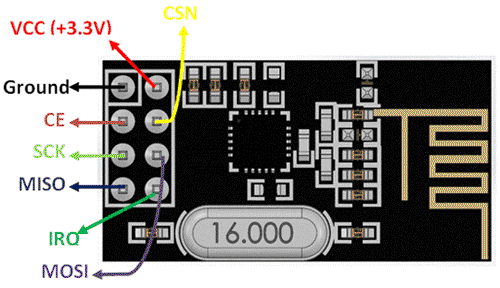

A transceiver, the nRF24L01 modules are capable of communicating in both directions but are half-duplex, which means they can only send or receive data at the same time. It uses the Nordic semiconductors nRF24L01 chip, which is responsible for transmit and receive functions. SPI is the protocol the IC uses, so it can communicate with any microcontroller. Because Arduino has libraries readily available, it gets a lot easier. Here is a list of pinouts of nRF24L01 modules. Operating at voltage levels from 1.9V to 3.6V (typically 3.3V), the module consumes only 12mA during normal operation, making it battery efficient and therefore allowing the module to run on coin cells. The pins are tolerant of 5V despite the operating voltage of 3.3V, and so can be directly connected to 5V microcontrollers like Arduino.
Using these modules has another advantage in that each one comes with 6 Pipelines. Specifically, each module can communicate with 6 other modules each time data is transmitted and received.
As a result, the module can be used to create star networks and mesh networks in IoT applications. Their address range is wide as well, 125 unique identifiers are capable of being used in a closed area, so if you have 125 of them you can't interfere with each other.
You built Interfacing nRF24L01 with Arduino: Controlling Servo Motor.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
Build your own self-balancing robot with Arduino
Ready to reuse what you learned in another project from the same track?
Start this project →
