Project build noteThe Covid technology revolutionized 2020 for all of humanity. The way it spread rapidly forced us to wear face masks and gloves to protect our skin from everything we touched. Certainly, we can put on a mask when we are outside but what do we do if we bring something home from the store or trade with someone else? The fact that patients and employees exchange files and paperwork with doctors or with each other, cannot be sanitized by applying sanitizers to these outside items.

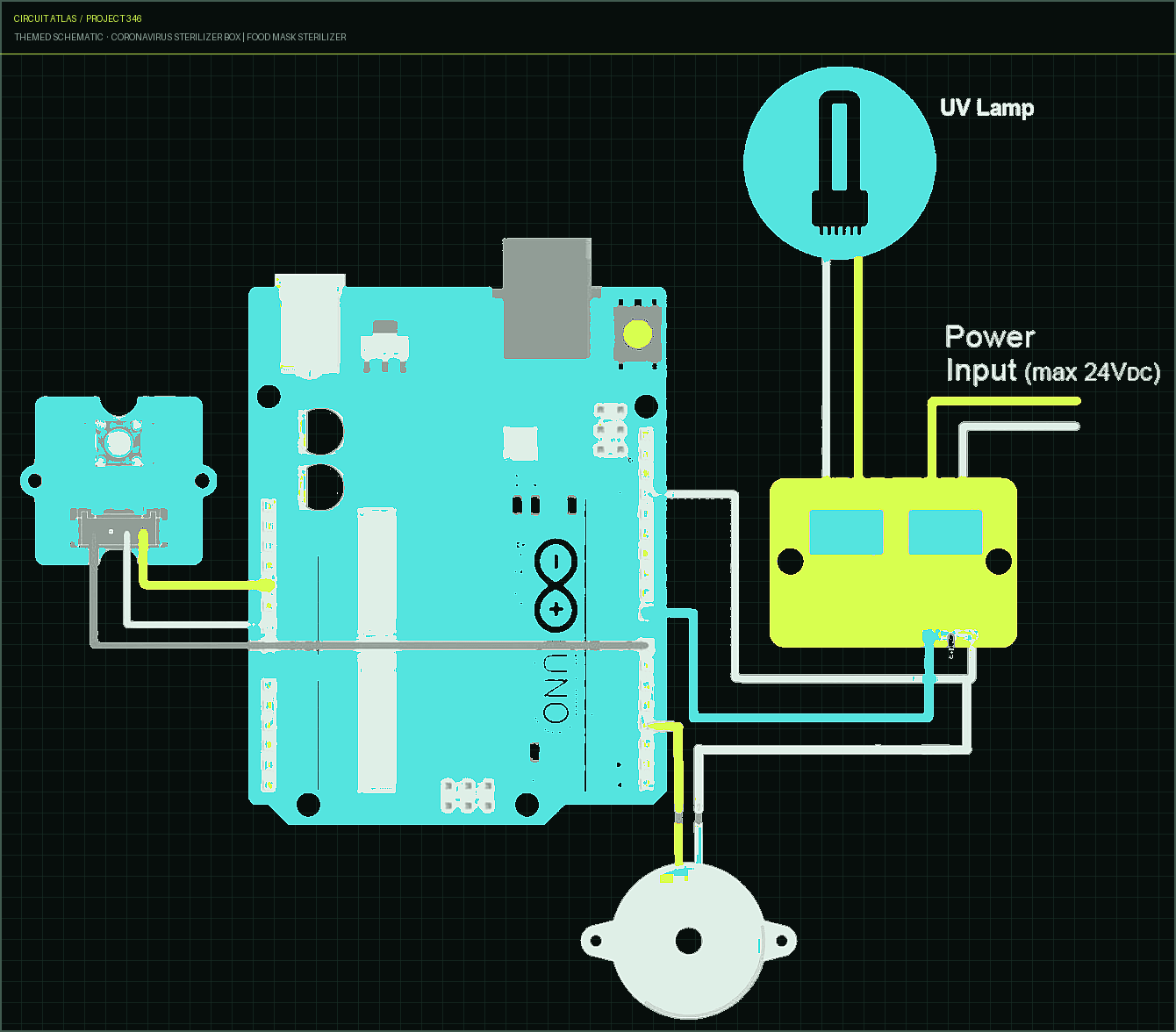

Circuit Diagram

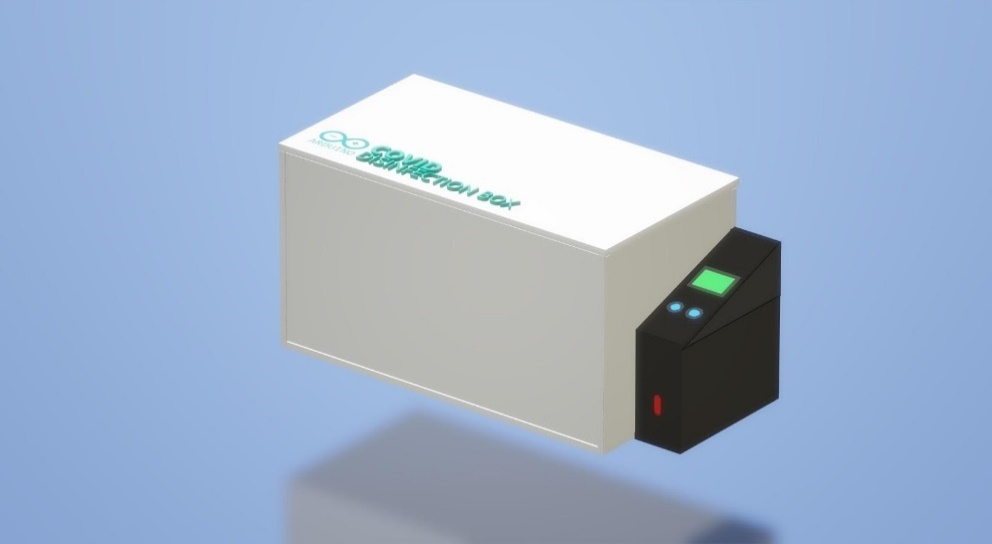

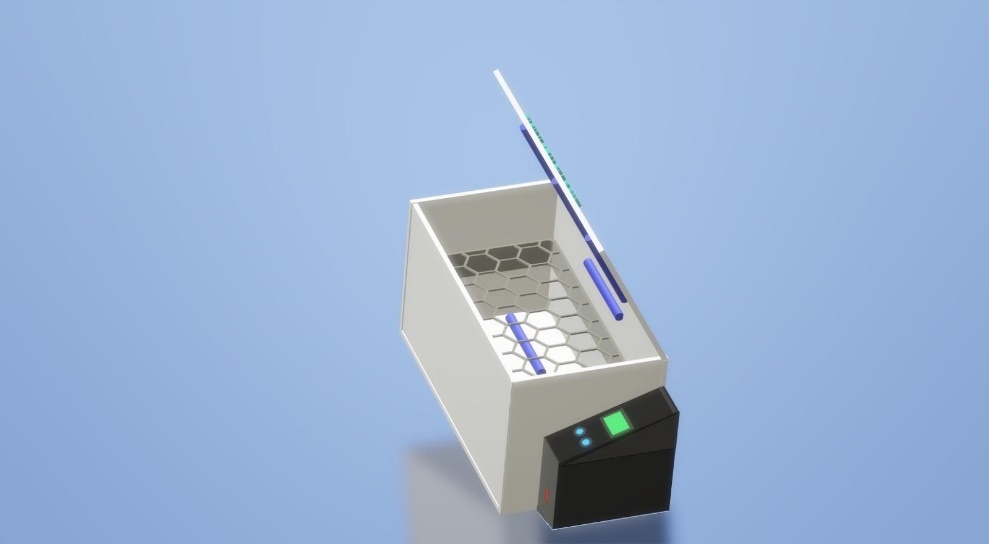

Project build noteUsing an arduino-powered system powered by a smart electronics chip, we solve this huge problem. To solve the problem, we designed an ultraviolet- sanitizing box that has a 60-degree angle. 8 uv tubes are employed by the system in order to achieve this task. All viruses have been killed by UV C in
a matter of seconds
Project build noteComponents Arduino Uno LCD Display, Buzzer Lid Sensor, UV-C Tubes, Buttons Metal Mesh, LED’s
IC’s, Resistors Capacitors,Diodes, Transistors, Transformer Base frame, Supporting Frame Mounts and Joints Screws and Bolts
The Arduino COVID Disinfection box has the following Key Aspects A 360-degree approach to disinfection All Coronaviruses can be deactivated. Shutdown and alerts based on timers Sterilizes masks, packaged foods, electronics etc. Specifying the duration of the sterilization Shut off automatically Easy To Use We use no water and no chemicals | Environmentally friendly
Sterilization starts when the start button on the Arduino controller is pressed and the controller takes user inputs for time setting. This device shuts off automatically after it reaches the sterilization temperature. Another shutoff system also prevents lipids from being opened by users while sterilization is taking place.
Advantages
Project build noteNo Chemicals or Water Sterilization Sterilization at 360 degrees Demonstrated to deactivate Bacteria and Viruses Sterilization time that can be adjusted Untimely opening will result in automatic safety shut off. Disadvantages Since it is not large enough to sterilize large objects, it is not suitable. It does not have a battery and is not suitable for car use.
