Arduino is great for controlling one or two Servos, but how do we control more than one Servo? We will be demonstrating how multiple servo motors can be controlled using Arduino.

When connected to Arduino supply pins multiple Servo Motors seem to be simple, but they won’t work correctly because there is not enough current to drive all the motors. Therefore, you need to supply each motor with a separate power supply, whether from some adapters (5v 2A) or from good quality batteries (9v).

02

Material Required

Project build note

Arduino UNO Servo Motor Power Supply Breadboard Connecting Wires

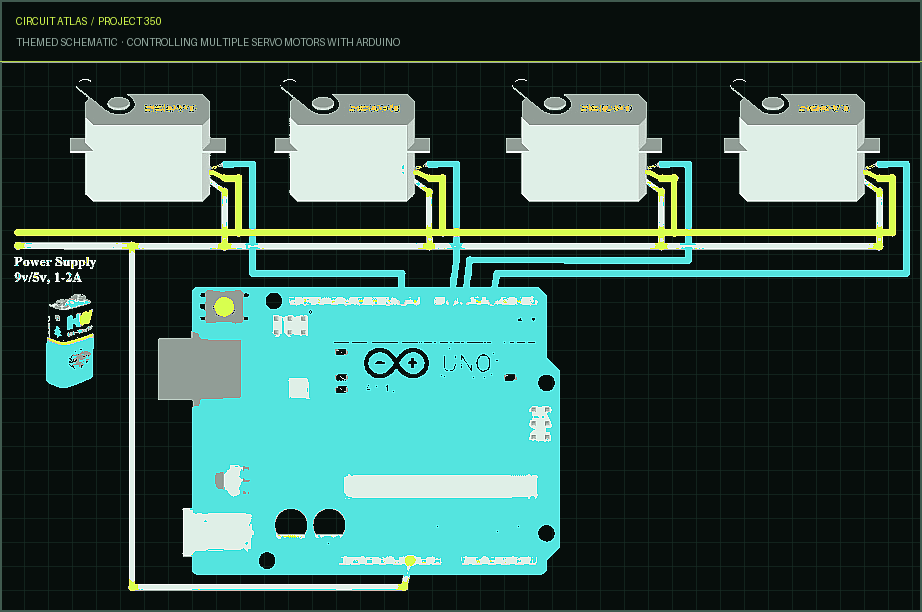

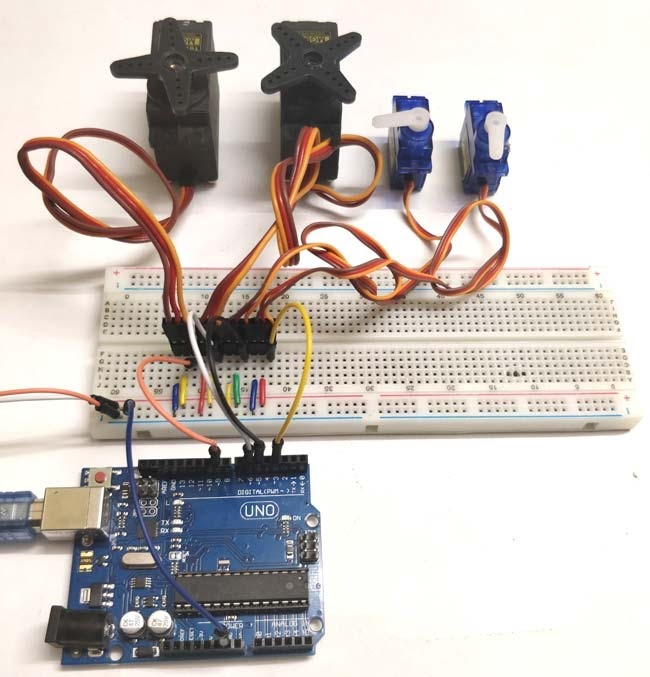

While integrating more than two servos into one Arduino, we all experience current difficulties. There is only one solution to this problem, which is to connect an external power source rated appropriately (that is, I used a 9V supply that was rated for 2A). Powering small Servos can be accomplished by wiring in an external power supply through adapters, RPSs (Regulated Power Supplies), or good quality 9-volt batteries . All of your servos can be controlled by a single Arduino, but they all require their own power source. It is necessary to establish a connection between the gnd pins on the Arduino and the gnd pins on the servo power supply. In case there was any confusion, I have been successfully controlling and powering all four Servos with the help of an Arduino up until this point.

When using a laptop, you can also connect your USB port to power your Servos. The Arduino ground must be shorted to the external supply ground in order to use the external supply.
