Project build noteFloor cleaning machines don't do anything new, but they all share the same problem. There are currently no Robots for House cleaning that aren't too expensive for what they do. So today, we are making an Automatic Robotic Cleaning Machine. Its cost will be a small fraction of the one on the market. In the event the Robot detects obstacles it can continue progressing, avoiding obstructions, until the entire room has been cleaned. The floor is cleaned with the help of a small brush on the side of the machine.

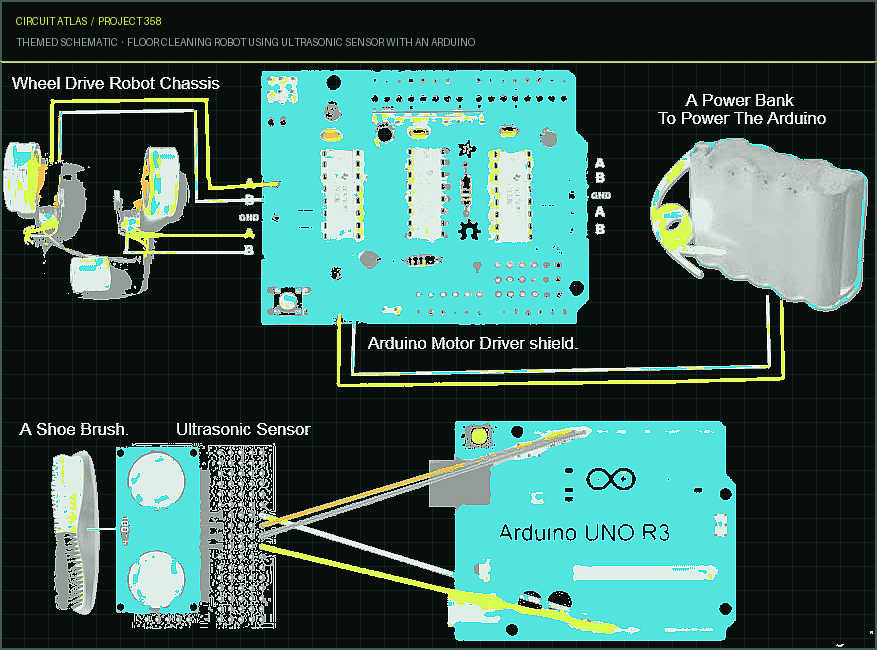

The circuit for this Robotic Home Cleaning Machine is very simple. Mount the Motor Driver shield on the Arduino and connect the Ultrasonic sensor as shown in the following figure.
Component Required
Project build noteArduino UNO R3. Ultrasonic Sensor. Arduino Motor Driver shield. Wheel Drive Robot Chassis. Computer to Program the Arduino. Battery for the Motors. A Power Bank to Power the Arduino A Shoe Brush. A Scotch Brite Scrub Pad.
Note
Project build noteA four-stranded wire can be used instead of batteries. That is what we did. If it is not something you plan to use in the real world every day, it is a feasible solution even though it is not elegant or practical. Confirm that the cable’s length is sufficient.
How to assemble a floor cleaner robot
Project build noteThe Arduino must be mounted to the chassis. Assuming your chassis is made of metal, take care not to short circuit anything. Getting a box for the Arduino and the motor controller shield is a good idea. Mount the motors using screws on the chassis and wheels. If the chassis doesn't come with this option from the factory, you can improvise. Epoxy is an option that can work well. Place the shoe brush on the front of the chassis. This was done with M- Seal epoxy and drilled screws; however, you could use any other solution you prefer. The Scotch Brite scrub pad should be installed behind the brush. It is held in play with a shaft across the chassis, but the mechanism can be improvised. A spring-loaded shaft can be employed to hold it in play. The batteries (or cables) are mounted on the back of the chassis. A battery holder or epoxy can be used to mount the batteries. Hot glue can also be used. It is connected to ultrasonics Trig pin (attached to pin 12), Ultrasonics Echo pin (attached to pin 13), the voltage pin (connected to the 5V pin), and the ground pin to the ground pin on the Arduino. A power supply and ground pins connect the sensor to the Arduino and allow it to receive power from both. The Trig and Echo pins allow the Arduino to communicate with it, and also serve to send data to and from the sensor. Here you can learn more about how you can interface Ultrasonic sensors with Arduino. Motor shields ought to have at least 2 outputs, and the direct connections between them and your two motors should be made. The outputs of these
channels are normally labelled as “M1” and “M2”. Connect the motor shield and the Arduino to the batteries, and your power bank to the power bank. Motor shields should have input channels, so do not cross connect them. Please connect wires to AC adapters if you're using them.
