IOT Based Dumpster Monitoring using Arduino & ESP8266

We will build an Internet of Things (IOT) based garbage can monitoring system in this DIY that will let us know when the trash can is full or empty by monitoring the webserver, enabling y…

Circuit Atlas themed schematic for IOT Based Dumpster Monitoring using Arduino & ESP8266
PROJECT#366
TRACKArduino
PARTS04
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

IOT Based Dumpster Monitoring using Arduino & ESP8266 is a arduino project. We will build an Internet of Things (IOT) based garbage can monitoring system in this DIY that will let us know when the trash can is full or empty by monitoring the webserver, enabling y…

Source pages
764-766
Named parts
4
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply
  • Computer with a data-capable USB cable

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

NAMED PROJECT INVENTORY4 PART LINES
PARTTYPEQTYREADY
MArduino Uno (you can use any other)MODULE1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for IOT Based Dumpster Monitoring using Arduino & ESP8266MODULE LEARNING VIEW

Arduino Uno (you can use any other)

A programmable controller that reads inputs, makes decisions, and drives the project's outputs.

What it does here

It is the control centre and must use the documented board, pin map, supply, and logic level.

Buy / compare this part

Advantages

  • Reprogrammable and reusable
  • Large learning ecosystem
  • Complex behaviour remains changeable

Limitations

  • GPIO voltage and current are limited
  • Some pins affect boot or communication
  • Loads normally need a driver

Handling

  • Disconnect power before rewiring
  • Avoid static discharge
  • Never power motors, relays, or pumps directly from GPIO

Specifications to verify

  • Use the exact model, value, package, and rating listed for Arduino Uno (you can use any other); similar-looking parts are not always interchangeable.
  • Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
MESP8266 Wi-Fi moduleMODULE1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for IOT Based Dumpster Monitoring using Arduino & ESP8266MODULE LEARNING VIEW

ESP8266 Wi-Fi module

A programmable controller that reads inputs, makes decisions, and drives the project's outputs.

What it does here

It is the control centre and must use the documented board, pin map, supply, and logic level.

Buy / compare this part

Advantages

  • Reprogrammable and reusable
  • Large learning ecosystem
  • Complex behaviour remains changeable

Limitations

  • GPIO voltage and current are limited
  • Some pins affect boot or communication
  • Loads normally need a driver

Handling

  • Disconnect power before rewiring
  • Avoid static discharge
  • Never power motors, relays, or pumps directly from GPIO

Specifications to verify

  • Use the exact model, value, package, and rating listed for ESP8266 Wi-Fi module; similar-looking parts are not always interchangeable.
  • Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
MHC-SR04 Ultrasonic sensorMODULE1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for IOT Based Dumpster Monitoring using Arduino & ESP8266MODULE LEARNING VIEW

HC-SR04 Ultrasonic sensor

A sensor converts a physical condition into an electrical signal the circuit can measure.

What it does here

It provides project input as an analogue, digital, resistive, frequency, or calibrated signal.

Buy / compare this part

Advantages

  • Adds real-world awareness
  • Can usually be tested independently
  • Often supports calibration

Limitations

  • Readings can drift
  • Placement affects results
  • Some sensors need warm-up or calibration

Handling

  • Protect the sensing surface
  • Observe supply voltage and polarity
  • Keep signal leads away from noisy power wiring

Specifications to verify

  • Use the exact model, value, package, and rating listed for HC-SR04 Ultrasonic sensor; similar-looking parts are not always interchangeable.
  • Confirm supply range, output type, measurement range, accuracy, response time, and pin order.
PK ResistorsPART1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for IOT Based Dumpster Monitoring using Arduino & ESP8266PART LEARNING VIEW

K Resistors

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for K Resistors; similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

We will build an Internet of Things (IOT) based garbage can monitoring system in this DIY that will let us know when the trash can is full or empty by monitoring the webserver, enabling you to control the trash can from anywhere. Aside from being highly useful, it can also be placed on trash cans in public areas and private homes. Within this Internet of Things project, ultrasonic sensors are used to detect trash can content. The Ultrasonic Sensor is mounted on top of the trash can and measures how far the trash is from the sensor. Based on the size of the trash can, a threshold value can be set for the distance between the trash and the sensor. When the distance is less than this threshold value, the trash can will be full of garbage, and a message "Basket Full" will be printed on the webpage. If the distance is greater than this threshold value, however, the container will be empty. The threshold value has been set to 5 cm in our program code. A Wi-Fi module called ESP8266 is used to communicate between the Arduino and the webserver. On a local web server, we demonstrated our Garbage Monitoring System.

02

Components Required

Project build note

Arduino Uno (you can use any other) ESP8266 Wi-Fi module HC-SR04 Ultrasonic sensor

1K Resistors Breadboard Connecting wires

03

Circuit Diagram and Explanation

Project build note

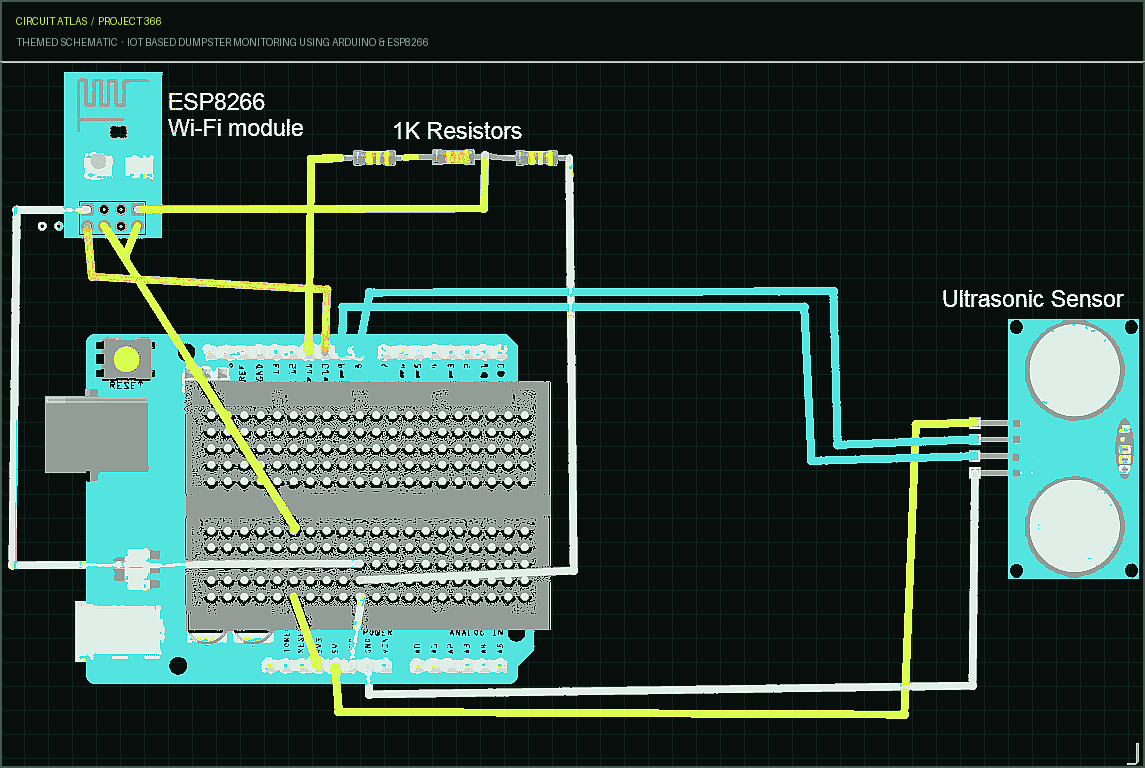

In order to use ESP8266, we need to first connect it to the Arduino. You cannot power the ESP8266 with 5V from an Arduino or it won't function properly and may get damaged. It runs on 3.3V. 3.3V should be connected to VCC and CH_PD on Arduino. When connected directly to the Arduino, the RX pin of the ESP8266 works with 3.3V voltage and thus cannot communicate with the Arduino. A voltage divider will be needed, so we will be using three 1-k resistors in series. In the circuit diagram below, you will see the RX is connected to pin 11 of the Arduino, along with the TX, as well as the TX of the Arduino is connected to pin 10. HC-SR04 ultrasonic sensor now needs to be connected to the Arduino. Ultrasonic sensors connect to Arduino boards in a very simple manner. An

ultrasonic sensor's VCC and ground should be connected to the Arduino's 5V and ground. You should connect pin 8 and pin 9 of the Arduino to the TRIG and ECHO pins of the ultrasonic sensor, respectively.

04

DEMO OUTPUT

Project build note

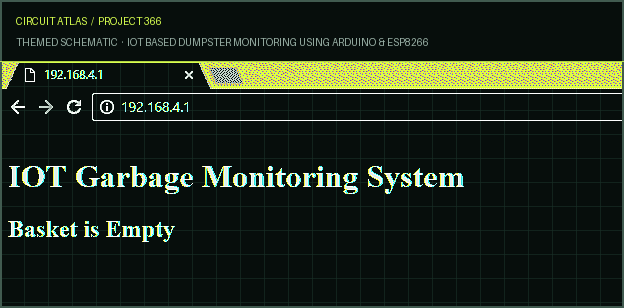

In the Serial Monitor, you can view the IP address of the code after it has been uploaded. The output is shown below if you type in this IP address into your browser. For a second look at whether the trash can is empty, you must refresh the page again.
