Automatic Door Opener using Arduino
Automatic door openers are typically found in shopping malls and commercial buildings. Whenever someone approaches the entrance, the door is opened and then closed after a while. PIR sens…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Automatic Door Opener using Arduino is a arduino project. Automatic door openers are typically found in shopping malls and commercial buildings. Whenever someone approaches the entrance, the door is opened and then closed after a while. PIR sens…
- Source pages
- 807-809
- Named parts
- 5
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
- Computer with a data-capable USB cable
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Arduino Uno
A programmable controller that reads inputs, makes decisions, and drives the project's outputs.
What it does hereIt is the control centre and must use the documented board, pin map, supply, and logic level.
Buy / compare this part ↗Advantages
- Reprogrammable and reusable
- Large learning ecosystem
- Complex behaviour remains changeable
Limitations
- GPIO voltage and current are limited
- Some pins affect boot or communication
- Loads normally need a driver
Handling
- Disconnect power before rewiring
- Avoid static discharge
- Never power motors, relays, or pumps directly from GPIO
Specifications to verify
- Use the exact model, value, package, and rating listed for Arduino Uno; similar-looking parts are not always interchangeable.
- Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
What's this?Image, role, pros, cons, handling & specifications
PIR sensor
A sensor converts a physical condition into an electrical signal the circuit can measure.
What it does hereIt provides project input as an analogue, digital, resistive, frequency, or calibrated signal.
Buy / compare this part ↗Advantages
- Adds real-world awareness
- Can usually be tested independently
- Often supports calibration
Limitations
- Readings can drift
- Placement affects results
- Some sensors need warm-up or calibration
Handling
- Protect the sensing surface
- Observe supply voltage and polarity
- Keep signal leads away from noisy power wiring
Specifications to verify
- Use the exact model, value, package, and rating listed for PIR sensor; similar-looking parts are not always interchangeable.
- Confirm supply range, output type, measurement range, accuracy, response time, and pin order.
What's this?Image, role, pros, cons, handling & specifications
Power supply
A power component supplies, converts, stores, or regulates energy for the project.
What it does hereIt must provide the documented voltage, polarity, isolation, and sufficient current safely.
Buy / compare this part ↗Advantages
- Stable power improves reliability
- Current limiting protects first tests
- Regulation reduces resets and noise
Limitations
- Wrong polarity can cause immediate damage
- Underrated parts overheat
- Mains circuits require qualified supervision
Handling
- Measure output before connection
- Use a fuse or current limit
- Insulate exposed conductors
Specifications to verify
- Use the exact model, value, package, and rating listed for Power supply; similar-looking parts are not always interchangeable.
- Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
What's this?Image, role, pros, cons, handling & specifications
CD-CASE
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for CD-CASE; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
L293D - specified part
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for L293D - specified part; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Automatic Door Opener using Arduino: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 2 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteAutomatic door openers are typically found in shopping malls and commercial buildings. Whenever someone approaches the entrance, the door is opened and then closed after a while. PIR sensors, Radar sensors, Laser sensors, Infrared sensors, etc. are all examples of systems that can be created according to various technologies. The same concept was tried in this project with an Arduino based on a PIR sensor. The door is opened or closed using a PIR sensor that detects the infrared radiation emitted from the human body. An infrared sensor detects changes in the infrared energy when a person approaches the door and responds by opening the door when a person approach. This signal is passed on to Arduino Uno, which subsequently activates the door. Circuit Components
Arduino UNO 16x2 LCD PIR Sensor Connecting wires Bread board 1 k resistor Power supply Motor driver
CD case (DVD Trolley) PIR Sensor

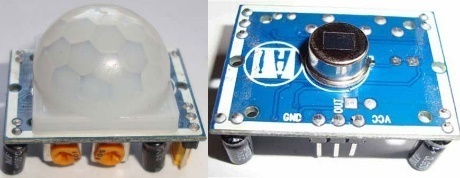

It detects any change in heat and makes sure the output PIN is HIGH whenever it detects any change. IR motion sensors are sometimes called Pyroelectric ones. It is worth noting that all objects emit some infrared rays when heated. In addition, our bodies produce infrared because they are warm. Detecting small variations in infrared is possible with PIR sensors. Infrared is produced by friction between an object and the air, so when it passes through the sensor's range, it is caught by PIR. Figure shows the Pyroelectric sensor (rectangular crystal behind the plastic cap) that is at the heart of the PIR sensor. A mong the components used to create PIR sensors were BISS0001, a micropower PIR motion sensor IC, resistors, and capacitors. Input signal from sensor BISS0001 is processed by BISS0001 IC to result in a HIGH or LOW output pin. Pyroelectric sensors are divided in half, so that they sense the same level of infrared no matter how fast the motion is. PIRs begin reacting when somebody enters the first half of the room, and the output pin goes high once the infrared level is larger in one half than the other. There are multiple Fresnel lenses inside a plastic cap covering the pyroelectric sensor. As a result, the lens covers a wide range so that the sensor can cover as much area as possible.

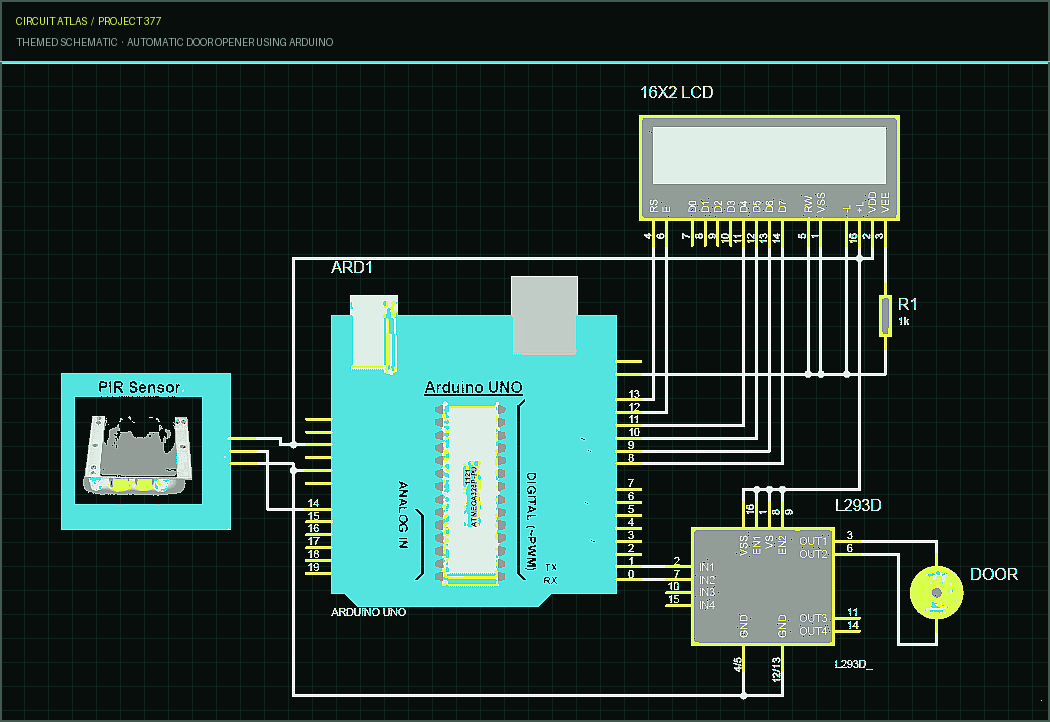

The previous circuit diagram illustrates the connections needed to build an Arduino-based door opener. An infrared sensor, based on the PIR principle, is used to detect human motion, which has three terminals: Vcc, GND, and Dout. Located at pin 14 (A0) of Arduino Uno, Doubt is directly connected to it. An LCD with a resolution of 16x2 is used to display the status. The LCD's RS and EN pins are connected to the Arduino's digital pin numbers 13, 12, and 8 while its D0-D7 pins are directly connected to digital pins 11, 10, 9, 8, respectively. The Arduino pins 0 and 1 are connected to the L293D motor driver to open and close the gate. In this circuit we are using a motor to move the gate.
