Generating Tones by Tapping Fingers using Arduino

We will use Arduino to build an entertainment system in this project. Creating random sounds out of the pen or table is an ingrained habit for all of us. There's no doubt that doing this…

Generating Tones by Tapping Fingers using Arduino - source illustration from page 844
PROJECT#387
TRACKArduino
PARTS07
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

Generating Tones by Tapping Fingers using Arduino is a arduino project. We will use Arduino to build an entertainment system in this project. Creating random sounds out of the pen or table is an ingrained habit for all of us. There's no doubt that doing this…

Source pages
844-848
Named parts
7
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply
  • Computer with a data-capable USB cable

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

NAMED PROJECT INVENTORY7 PART LINES
PARTTYPEQTYREADY
MArduino Pro MiniMODULE1
What's this?Image, role, pros, cons, handling & specifications
Generating Tones by Tapping Fingers using Arduino - source illustration from page 844MODULE LEARNING VIEW

Arduino Pro Mini

A programmable controller that reads inputs, makes decisions, and drives the project's outputs.

What it does here

It is the control centre and must use the documented board, pin map, supply, and logic level.

Buy / compare this part

Advantages

  • Reprogrammable and reusable
  • Large learning ecosystem
  • Complex behaviour remains changeable

Limitations

  • GPIO voltage and current are limited
  • Some pins affect boot or communication
  • Loads normally need a driver

Handling

  • Disconnect power before rewiring
  • Avoid static discharge
  • Never power motors, relays, or pumps directly from GPIO

Specifications to verify

  • Use the exact model, value, package, and rating listed for Arduino Pro Mini; similar-looking parts are not always interchangeable.
  • Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
PPiezo SpeakerPART1
What's this?Image, role, pros, cons, handling & specifications
Generating Tones by Tapping Fingers using Arduino - source illustration from page 844PART LEARNING VIEW

Piezo Speaker

An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.

What it does here

It presents the circuit result or acts on the physical world.

Buy / compare this part

Advantages

  • Makes system state visible
  • Can be tested separately
  • Supports clear troubleshooting

Limitations

  • Loads may exceed controller current
  • Polarity or driver direction can matter
  • Inductive loads create voltage spikes

Handling

  • Use the documented driver stage
  • Check polarity and load current
  • Add flyback protection for inductive loads

Specifications to verify

  • Use the exact model, value, package, and rating listed for Piezo Speaker; similar-looking parts are not always interchangeable.
  • Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
MFlex SensorMODULE1
What's this?Image, role, pros, cons, handling & specifications
Generating Tones by Tapping Fingers using Arduino - source illustration from page 844MODULE LEARNING VIEW

Flex Sensor

A sensor converts a physical condition into an electrical signal the circuit can measure.

What it does here

It provides project input as an analogue, digital, resistive, frequency, or calibrated signal.

Buy / compare this part

Advantages

  • Adds real-world awareness
  • Can usually be tested independently
  • Often supports calibration

Limitations

  • Readings can drift
  • Placement affects results
  • Some sensors need warm-up or calibration

Handling

  • Protect the sensing surface
  • Observe supply voltage and polarity
  • Keep signal leads away from noisy power wiring

Specifications to verify

  • Use the exact model, value, package, and rating listed for Flex Sensor; similar-looking parts are not always interchangeable.
  • Confirm supply range, output type, measurement range, accuracy, response time, and pin order.
PFinger GlovesPART1
What's this?Image, role, pros, cons, handling & specifications
Generating Tones by Tapping Fingers using Arduino - source illustration from page 844PART LEARNING VIEW

Finger Gloves

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for Finger Gloves; similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
PK ResistorsPART1
What's this?Image, role, pros, cons, handling & specifications
Generating Tones by Tapping Fingers using Arduino - source illustration from page 844PART LEARNING VIEW

K Resistors

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for K Resistors; similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
SBC547 TransistorsSEMICONDUCTOR1
What's this?Image, role, pros, cons, handling & specifications
BC547 NPN transistorSEMICONDUCTOR LEARNING VIEW

BC547 Transistors

A semiconductor stage performs switching, amplification, regulation, rectification, or logic.

What it does here

It controls current or signal flow at a defined point in the circuit.

Buy / compare this part

Advantages

  • Fast and efficient
  • Compact
  • Can control larger loads from smaller signals

Limitations

  • Pin order varies
  • Sensitive to overvoltage and reverse polarity
  • May need cooling or bias components

Handling

  • Verify the datasheet pinout
  • Avoid static and soldering heat
  • Check notch, stripe, or flat-face orientation

Specifications to verify

  • Use the exact model, value, package, and rating listed for BC547 Transistors; similar-looking parts are not always interchangeable.
  • Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
PV BatteryPOWER1
What's this?Image, role, pros, cons, handling & specifications
Generating Tones by Tapping Fingers using Arduino - source illustration from page 844POWER LEARNING VIEW

V Battery

A power component supplies, converts, stores, or regulates energy for the project.

What it does here

It must provide the documented voltage, polarity, isolation, and sufficient current safely.

Buy / compare this part

Advantages

  • Stable power improves reliability
  • Current limiting protects first tests
  • Regulation reduces resets and noise

Limitations

  • Wrong polarity can cause immediate damage
  • Underrated parts overheat
  • Mains circuits require qualified supervision

Handling

  • Measure output before connection
  • Use a fuse or current limit
  • Insulate exposed conductors

Specifications to verify

  • Use the exact model, value, package, and rating listed for V Battery; similar-looking parts are not always interchangeable.
  • Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

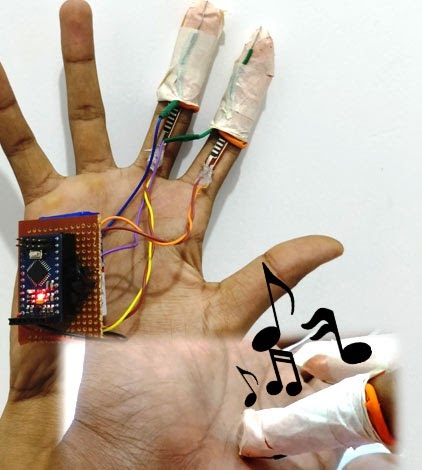

We will use Arduino to build an entertainment system in this project. Creating random sounds out of the pen or table is an ingrained habit for all of us. There's no doubt that doing this at least once is not considered good manners, but we're all used to doing it. Therefore, I decided to take it one step further by using Arduino's tone-playing abilities. With this project you will be able to tap on anything conductive and generate tones, like playing the Piano on your palm, and create your own rhythms.

02

Components required

Project build note

Here is the list of materials required for this project. There is no need to stick to the list. You can build it based on your own design once you understand the basic idea.

Arduino Pro Mini Piezo Speaker Flex Sensor Finger Gloves 10K Resistors BC547 Transistors 9V Battery

03

Circuit Diagram and Explanation

Project build note

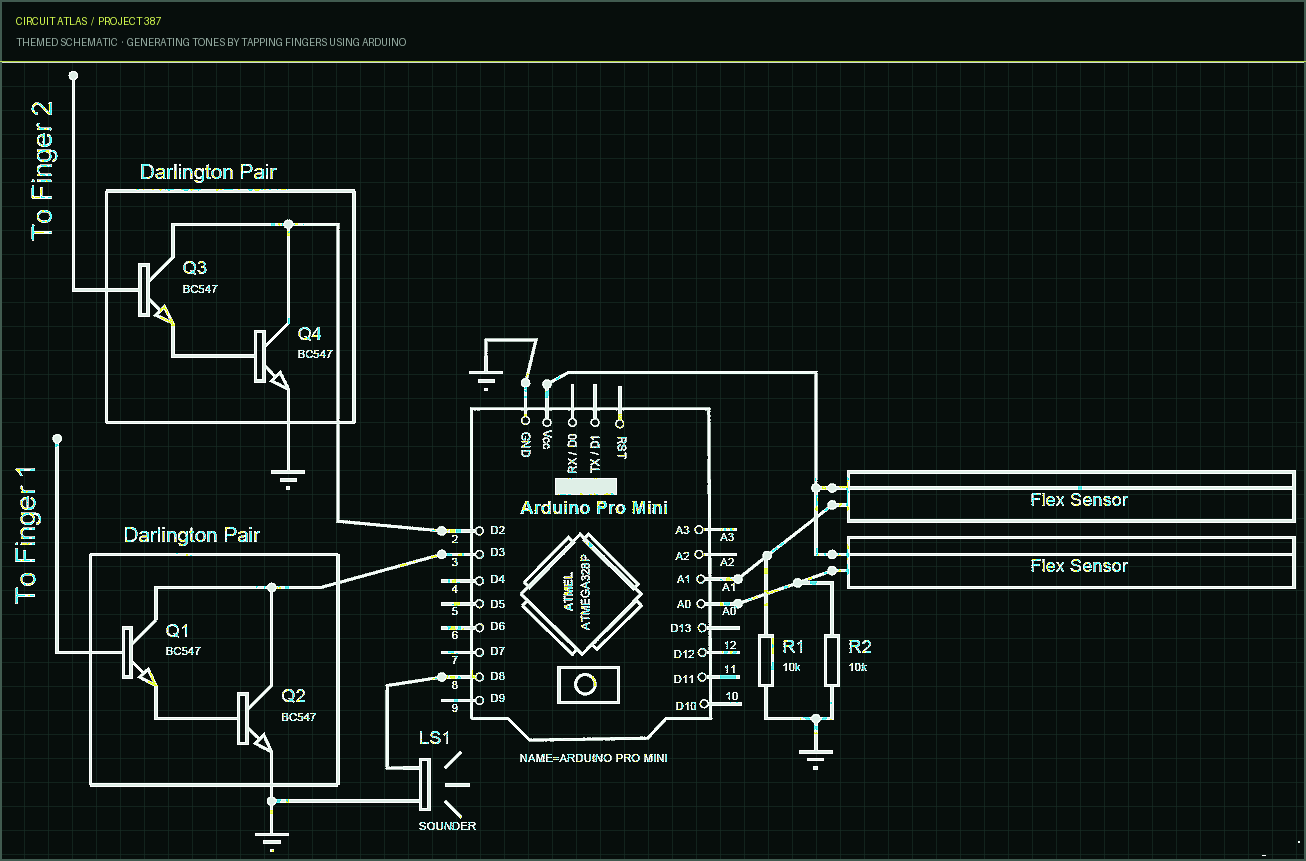

During the development of this project, we used a total of four sensors: two flex sensors and two Darlington pairs functioning as a touch sensor. Secondly, we have attached two 10k resistors R1 and R2 to the Flex sensor as pull-down resistors. Using one finger to generate three distinct tones based on how much it has bent, the Flex sensor here makes use of this technology. This means that two fingers can generate six different sounds.

04

Darlington Pair

Project build note

It is important that we understand what Darlington is and how it relates to our project before we move forward. The Darlington pair can be defined as two bipolar transistors connected in a way that in case of current amplification by the first transistor, the current is amplified further by the

05

second transistor. The following image shows a pair of Darlington

Project build note

This circuit consists of two BC547 transistors whose collectors are tied to their respective collectors and whose emitters are connected to the bases of their respective transistors, as shown above. A small signal applied to the first transistor base will bias the second transistor base, which means that the circuit functions as an amplifier. Our body serves as a ground for the second transistor so the transistor becomes biased whenever our bodies touch the base of the transistor. In order to make this project a success, we utilized this knowledge to build the touch sensor. Two Arduino interrupt pins, numbers 2 and 3, are pulled high using internal pull-up resistors. After the Darlington switch closes, these pins will be

grounded. The interrupt will be triggered every time the wire touches the base of the transistor (1st transistor) on the Arduino. I added a flex sensor that alters the tone according to how much the finger is bent, so I can generate more tones using fewer fingers. I have programmed the system to produce three different tones for each finger depending on how far it is bent (flex sensor). Having access to more tones at your fingertips is possible by increasing the number. In order for the board to fit easily in my palms, I made it on a perf board, however you can also build it on a breadboard. It is important that you touch the ground of the circuit during the course. You should have something similar to this once you've soldered everything As displayed above, I have secured the Darlington pair wires and the flex sensor with two finger gloves. While playing your tone, you can come up with a better idea (if possible) to secure the earphones in place. Working: You can then mount them on your fingers once the hardware is ready. Ensure that you are touching the ground at some point on the circuit.

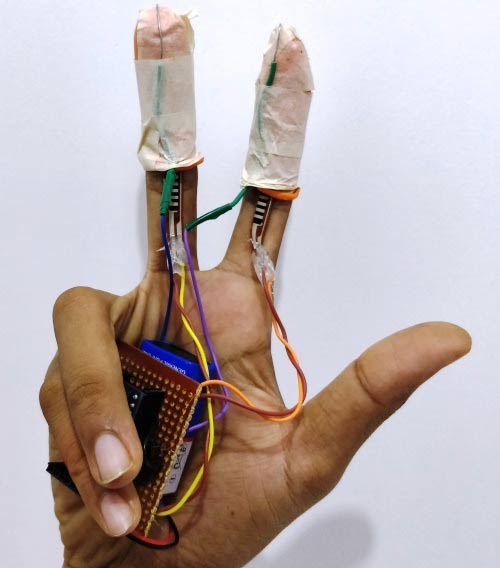

You should now be able to hear the tone by touching any conductive material or your body. The taps can be played at different intervals, at different positions, to create your own melody.
