Arduino Touch Screen Calculator using TFT LCD
Building projects with Arduino is always easy and makes them more appealing. Arduino libraries and shields made it really easy to program an LCD screen with touch screen capability. We wi…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Arduino Touch Screen Calculator using TFT LCD is a arduino project. Building projects with Arduino is always easy and makes them more appealing. Arduino libraries and shields made it really easy to program an LCD screen with touch screen capability. We wi…
- Source pages
- 854-858
- Named parts
- 4
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
- Computer with a data-capable USB cable
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Arduino Uno
A programmable controller that reads inputs, makes decisions, and drives the project's outputs.
What it does hereIt is the control centre and must use the documented board, pin map, supply, and logic level.
Buy / compare this part ↗Advantages
- Reprogrammable and reusable
- Large learning ecosystem
- Complex behaviour remains changeable
Limitations
- GPIO voltage and current are limited
- Some pins affect boot or communication
- Loads normally need a driver
Handling
- Disconnect power before rewiring
- Avoid static discharge
- Never power motors, relays, or pumps directly from GPIO
Specifications to verify
- Use the exact model, value, package, and rating listed for Arduino Uno; similar-looking parts are not always interchangeable.
- Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
What's this?Image, role, pros, cons, handling & specifications
” TFT LCD display Shield
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for ” TFT LCD display Shield; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications
Arduino Mega
A programmable controller that reads inputs, makes decisions, and drives the project's outputs.
What it does hereIt is the control centre and must use the documented board, pin map, supply, and logic level.
Buy / compare this part ↗Advantages
- Reprogrammable and reusable
- Large learning ecosystem
- Complex behaviour remains changeable
Limitations
- GPIO voltage and current are limited
- Some pins affect boot or communication
- Loads normally need a driver
Handling
- Disconnect power before rewiring
- Avoid static discharge
- Never power motors, relays, or pumps directly from GPIO
Specifications to verify
- Use the exact model, value, package, and rating listed for Arduino Mega; similar-looking parts are not always interchangeable.
- Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
What's this?Image, role, pros, cons, handling & specifications
LCD display
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for LCD display; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.

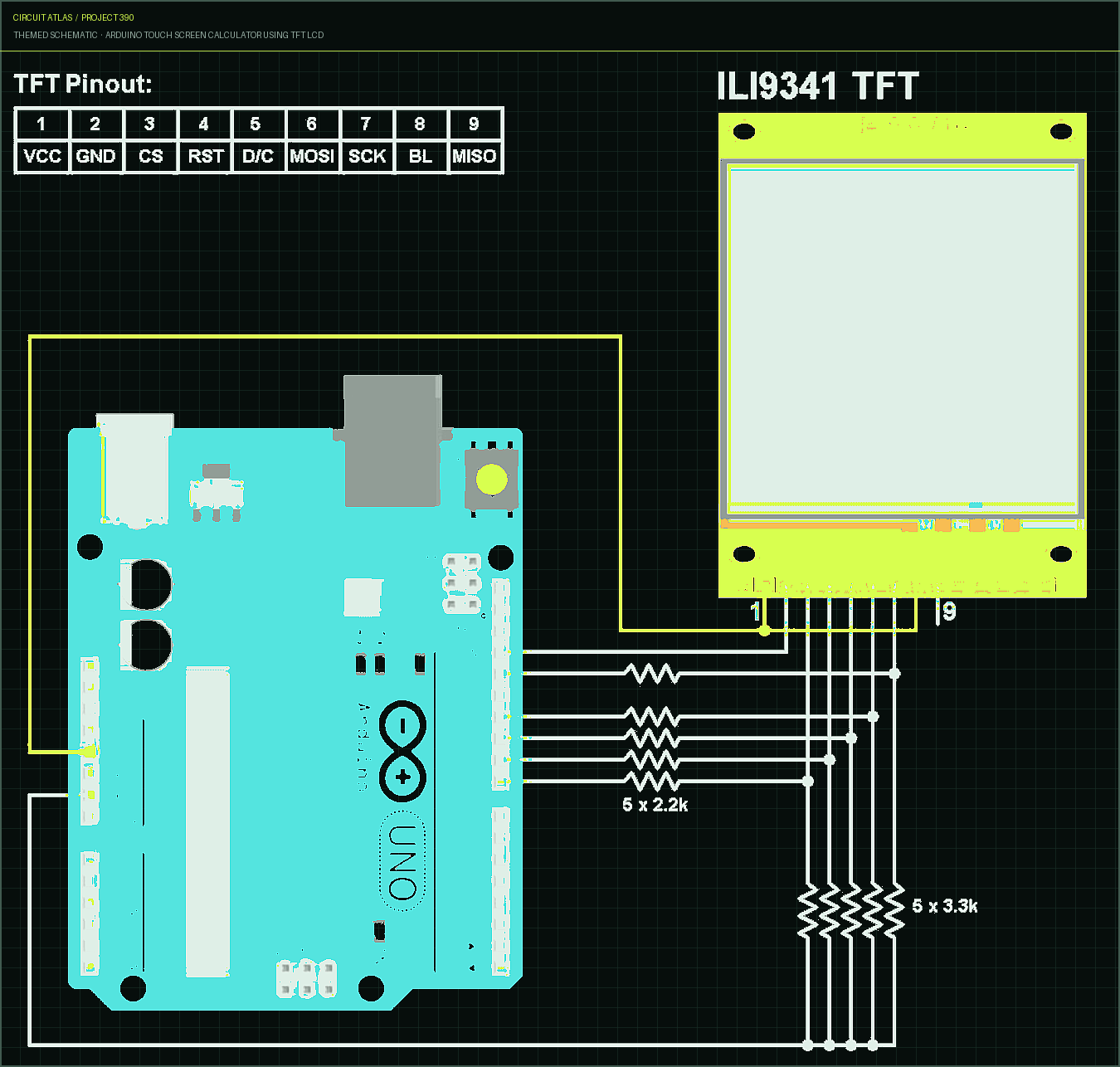

Trace this circuit.
Arduino Touch Screen Calculator using TFT LCD: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 3 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteBuilding projects with Arduino is always easy and makes them more appealing. Arduino libraries and shields made it really easy to program an LCD screen with touch screen capability.

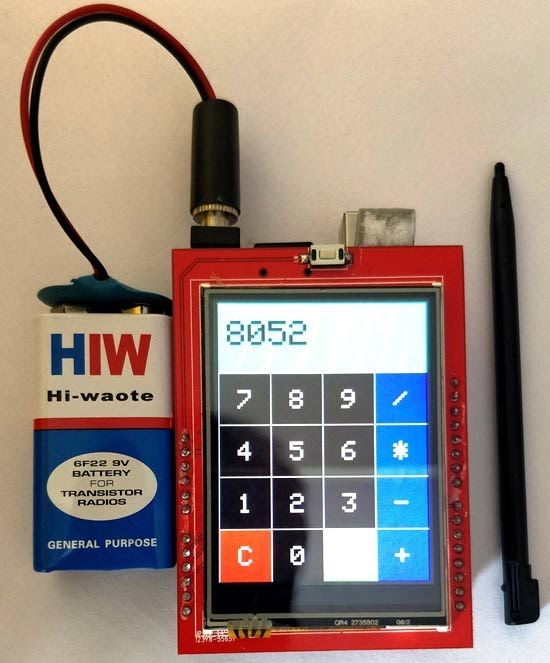

We will use a 2.4" Arduino TFT LCD screen in this project to build an Arduino Touch Screen calculator that can perform basic arithmetic operations like Addition, Subtraction, Division and Multiplication.
Materials Required
Project build noteArduino Uno 2.4” TFT LCD display Shield 9V Battery.
Getting to know the TFT LCD Screen Module
Project build note2.4" TFT LCD Modules come in many varieties, so it is important to understand how they work before we proceed with the project. Here is what the pinouts look like for a 2.4" TFT LCD screen. These boards will perfectly
fit into any Arduino Mega or Uno board, as can be seen from the photo above. In the table below are some small classifications of these pins. There are four basic classifications for pins, namely LCD Command Pins, LCD Data Pins, SD Card Pins and Power Pins. We do not need to understand the details of how these pins work since the Arduino library will handle them. Using the Arduino program, we can display the images on the TFT LCD screen by loading them into an SD card, and this image can be displayed on the SD card slot at the bottom of the module.
The Interface IC is another important aspect of the kit. There are many types of TFT modules on the market, from the original Adafruit TFT LCD module to inexpensive Chinese knockoffs. If your Adafruit shield works perfectly on a Chinese breakout board, it may not work the same way on your Adafruit shield. As a result, it's essential to know what kind of LCD display you have in your hand. It is the vendor's responsibility to provide this information. If you are using a cheap clone like mine, you are almost certain to be using the ili9341 driver IC.
Calibrating the TFT LCD Screen for Touch Screen
Project build noteIt is essential for you to calibrate your TFT LCD module if you intend to use the touch screen functionality. If you touch one place on an LCD screen but the TFT responds at another, for instance, you might not be able to use it. You need to calibrate each board separately because the results won't be the same for each of them. Using the calibration example program (which comes with the library) or a serial monitor is the best way to calibrate.
TFT LCD Connections with Arduino

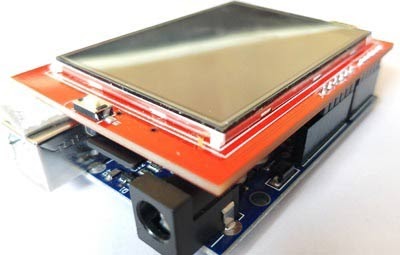

Project build noteArduino shields that have TFT LCD screens are ideal. The LCD screen will slide perfectly into the Arduino Uno once you push it directly on top of it. Cover the TFT LCD screen's Programming terminal with a small piece of insulation tape as a matter of safety. Here is an example of how the LCD will look when it is assembled on the UNO. How to Program To get our Arduino calculator code to work, we're using the SPFD5408 library. With this library, our LCD TFT Module can readily work with Adafruit's LCD TFT Module. Note: It is vital that you have this library installed in your Arduino IDE for the program to compile correctly.
