disability. With this in mind, let's build a blind man's stick that can do more than just assist the visually impaired. Its ultrasonic sensor will detect the distance from an obstacle, its LDR will detect lighting conditions, and its RF remote will allow the blind man to find his stick remotely. Using a Buzzer, all feedback will be given to the blind man. The buzzer can certainly be replaced with a vibrating motor and you can advance a lot further using creativity.

Arduino Nano (Any version will work) Ultrasonic Sensor HC-SR04 LDR Buzzer and LED 7805 433MHz RF transmitter and receiver Resistors Capacitors Push button Perf board Soldering Kit 9V batteries

Two separate circuits are required for this Arduino Smart Blind Stick Project. It consists of the main circuit, which is mounted on the stick by the blind man. There will also be a small relay for locating the main circuit, which is an RF transmitter. As seen in the following circuit diagram, the

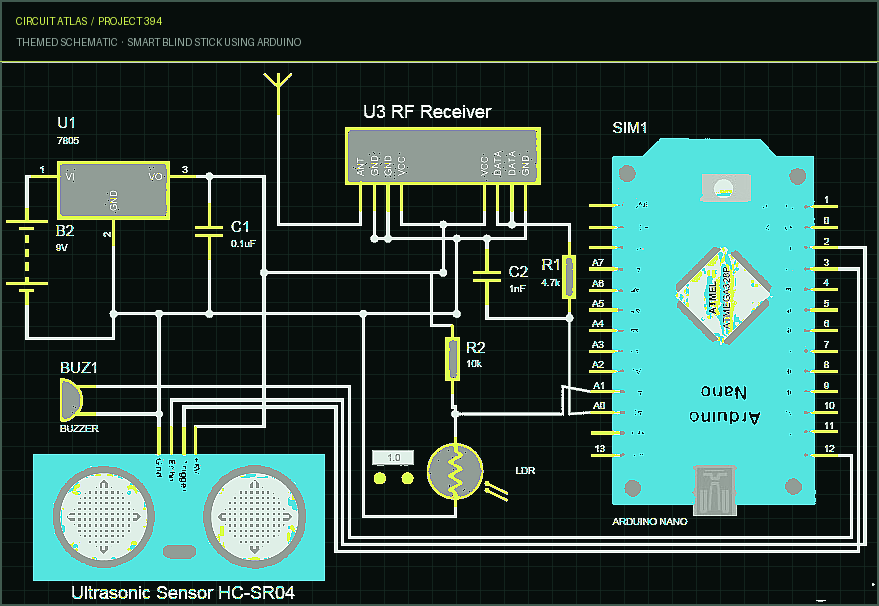

As can be seen, all the sensors are controlled by an Arduino Nano. With a 7805-voltage regulator, a 9V battery provides power to the entire board. Powered by 5 volts, the Ultrasonic sensor's trigger and echo pins are connected to the Arduino nano's pins 3 and 2 as shown in above diagram. LDRs are connected to resistors of 10K, creating a potential divider, whose differential voltages are read using Arduino ADC pin A1. Reading the RF receiver signal from A0 is done using the ADC pin. Pin 12 of the board is connected to the buzzer, which provides the board's output. The goal of this project was to develop an ultrasonic blind walking stick that utilized Arduino. There are 30 million permanently blind people and 285 billion people with some form of vision impairment according to WHO.

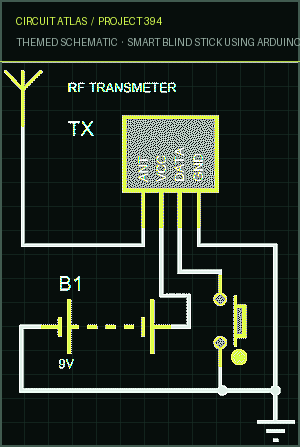

Below is a circuit diagram of the RF remote. The workings of this system are also discussed.

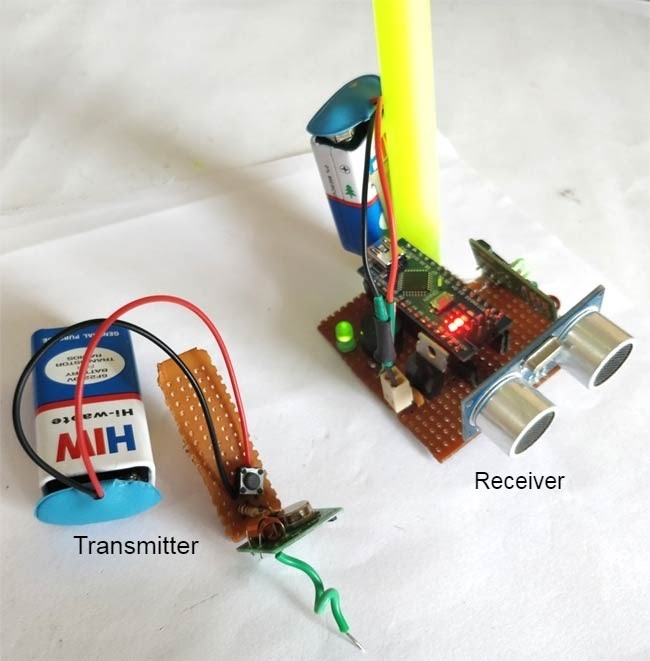

As soon as you notice them, you will realize that they are unable to walk without the assistance of someone else. They require assistance to get to their destination. As a result, they have more challenges to face in everyday life. Blind sticks allow people to walk with greater confidence. In this stick, the object in front of the person is detected and a response is given either through vibrations or commands. This allows the individual to walk fearlessly. We can help them overcome their difficulties with this device. I have modified a remote-control circuit to make it function using a small hack. It usually takes two MCUs or an encoder and decoder to use this 433 MHz module. We rely on the receiver and transmitter to detect if any signals are being transmitted in our application. Thus, ground or Vcc is connected to the Data pin of the transmitter.

An RC filter is used to pass the data pin from the receiver to the Arduino. The example below illustrates this. Now, the Receiver continually outputs the same ADC value whenever the button is pressed. It is impossible to observe this repetition without pressing the button. To detect whether the button has been pressed, we write an Arduino program that checks for repeated values. Therefore, that is how Blind people can track their sticks. You can learn about how RF transmitters and receivers work by visiting this page. All connections were soldered using a perf board so that it would be intact with the stick. A breadboard can also be used to make them.
