Arduino Based Fire Fighting Robot
It is estimated that between 2010 and 2014 more than 1.2 lakh deaths were caused by fire accidents in India, according to the National Crime Records Bureau (NCRB). While there are many pr…

Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Arduino Based Fire Fighting Robot is a arduino project. It is estimated that between 2010 and 2014 more than 1.2 lakh deaths were caused by fire accidents in India, according to the National Crime Records Bureau (NCRB). While there are many pr…
- Source pages
- 880-884
- Named parts
- 8
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
- Computer with a data-capable USB cable
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications

Arduino UNO
A programmable controller that reads inputs, makes decisions, and drives the project's outputs.
What it does hereIt is the control centre and must use the documented board, pin map, supply, and logic level.
Buy / compare this part ↗Advantages
- Reprogrammable and reusable
- Large learning ecosystem
- Complex behaviour remains changeable
Limitations
- GPIO voltage and current are limited
- Some pins affect boot or communication
- Loads normally need a driver
Handling
- Disconnect power before rewiring
- Avoid static discharge
- Never power motors, relays, or pumps directly from GPIO
Specifications to verify
- Use the exact model, value, package, and rating listed for Arduino UNO; similar-looking parts are not always interchangeable.
- Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
What's this?Image, role, pros, cons, handling & specifications

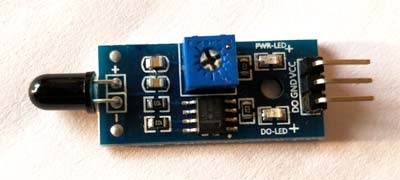

Fire sensor or Flame sensor (3 Nos)
A sensor converts a physical condition into an electrical signal the circuit can measure.
What it does hereIt provides project input as an analogue, digital, resistive, frequency, or calibrated signal.
Buy / compare this part ↗Advantages
- Adds real-world awareness
- Can usually be tested independently
- Often supports calibration
Limitations
- Readings can drift
- Placement affects results
- Some sensors need warm-up or calibration
Handling
- Protect the sensing surface
- Observe supply voltage and polarity
- Keep signal leads away from noisy power wiring
Specifications to verify
- Use the exact model, value, package, and rating listed for Fire sensor or Flame sensor (3 Nos); similar-looking parts are not always interchangeable.
- Confirm supply range, output type, measurement range, accuracy, response time, and pin order.
What's this?Image, role, pros, cons, handling & specifications

Servo Motor (SG90)
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for Servo Motor (SG90); similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications

L293D motor Driver module
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for L293D motor Driver module; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications

Mini DC Submersible Pump
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for Mini DC Submersible Pump; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications

Small Breadboard
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for Small Breadboard; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications

Robot chassis with motors (2) and wheels (2) (any type)
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for Robot chassis with motors (2) and wheels (2) (any type); similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications

A small can
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for A small can; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Arduino Based Fire Fighting Robot: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 3 visuals



Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteIt is estimated that between 2010 and 2014 more than 1.2 lakh deaths were caused by fire accidents in India, according to the National Crime Records Bureau (NCRB). While there are many precautionary measures taken to prevent Fire accidents, they do sometimes occur as a result of natural disasters or human error. Human resources will be used to extinguish a fire in the event of a fire breakout so that people can be rescued. It is very much possible that humans can be replaced with robots for fighting fires thanks to the advancements in technology, especially robotics. Firefighters would be more effective, and they would also avoid endangering people on the job. The goal of this tutorial is to create an Arduino Fire Fighting Robot, which will detect fire and start the water pump automatically

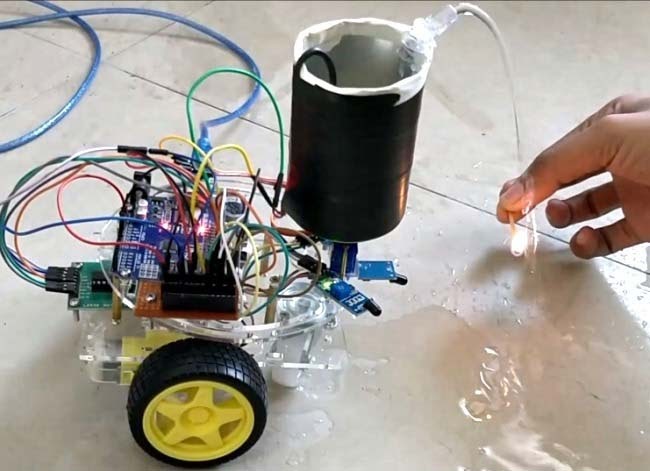

This project will teach you how to make a simple robot that can pump out water around a fire and move towards it to put it out. Once you understand the following robotic basics, it will be easier for you to build more complex robots. Okay, let's start at the beginning.
Material Required
Project build noteArduino UNO Fire sensor or Flame sensor (3 Nos) Servo Motor (SG90) L293D motor Driver module Mini DC Submersible Pump Small Breadboard Robot chassis with motors (2) and wheels (2) (any type) A small can Connecting wires
Working Concept of Fire Fighting Robot
Project build noteThe Arduino is the main processor of the project. For detecting fire, we are using the Fire sensor module (flame sensor) as shown below. It's possible to see that these sensors are equipped with an IR receiver (Photodiode), which is used to detect fire. This is impossible, how is it possible? An infrared receiver on the sensor module will be able to pick up this light from the fire when it burns. Using an Op-Amp, we then monitor
the voltage change across the IR Receiver, so if there is a fire, our output pin (DO) will be 0V (low) and if there is none, our output pin will be 5V (high). To determine in which direction the fire is burning, we use three sensors located in three directions on the robot. By using the L293D module, we can drive our motors close to the fire once we know the direction in which the fire is coming from. We must use water to put out a fire when near one. The water is carried in a small container, a 5V pump is also tucked inside, and the entire device sits atop a servo motor so that the water can be sprayed from any direction. Now that we have the connections, let's move on As a profession, firefighting is an important one, but it is very dangerous. Robots are designed for that reason, so that they can find a fire before it rages out of control. The system could be used to reduce victims' injury risks by working with fire fighters. Firefighting Robots are compact and portable emergency response robots that assist firefighters, especially in highly dangerous environments where people cannot enter, in fighting high-rise fires

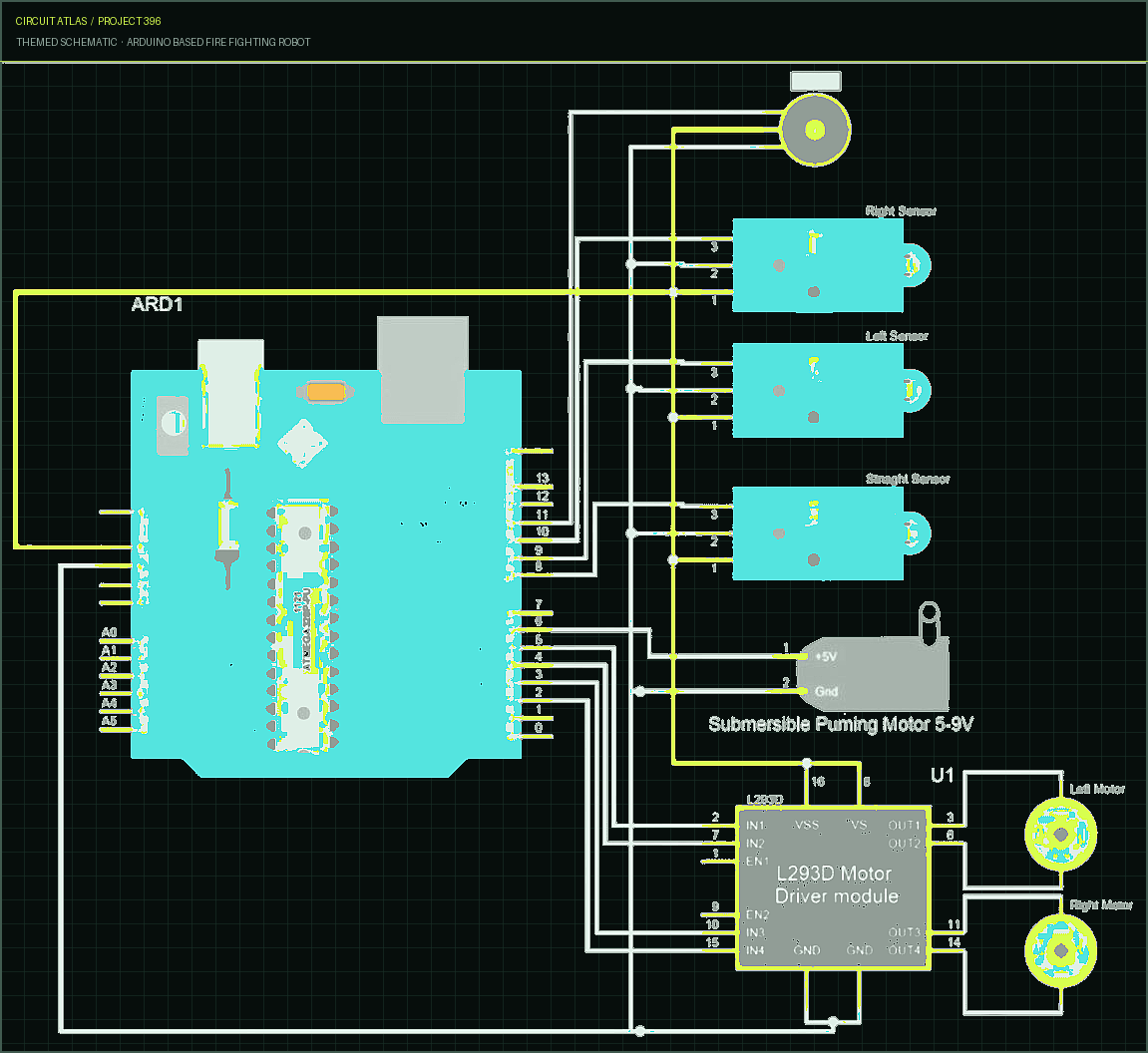

Circuit Diagram
Project build noteOn the following page you'll find the complete schematic for this Fire Fighting Robot. It is either possible to connect each connection to upload the bot to verify its functionality or you can assemble the bot completely. After that, connect the devices. It's very simple to make both connections and you should have no trouble doing it. The container that I am using might not be the same for the robotic chassis that you are using. Set up the pumping system then according to your own creativity. It will, however, continue to be the same code. My pump is housed in a small aluminum can (cool drinks can) that I filled with water and set it in place. In order to control the direction of the water, I assembled the whole can on top of a servo motor. I built my robot in a way that looks like
this. Servo fins were made by hot gluing the bottom of the container to the servo motor, and servo motors were attached to the chassis by nuts and bolts. The container just needs to be placed on top of the motor, then the pump inside it can be triggered to force water outside via the tube. Using the servo to rotate the whole container, the water can be directed in any direction.
