ESP8266 NodeMCU with BH1750 Ambient Light Sensor

The BH1750 is a light sensor with 16 bits. In this project, you'll learn how to use ESP8266 NodeMCU board and the BH1750 ambient light sensor. I2C communication protocol is used for the s…

Circuit Atlas themed schematic for ESP8266 NodeMCU with BH1750 Ambient Light Sensor
PROJECT#414
TRACKIoT
PARTS04
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

ESP8266 NodeMCU with BH1750 Ambient Light Sensor is a iot project. The BH1750 is a light sensor with 16 bits. In this project, you'll learn how to use ESP8266 NodeMCU board and the BH1750 ambient light sensor. I2C communication protocol is used for the s…

Source pages
962-967
Named parts
4
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply
  • Computer with a data-capable USB cable

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

NAMED PROJECT INVENTORY4 PART LINES
PARTTYPEQTYREADY
MBH1750 ambient light sensor ESP8266 (read Best ESP8266MODULE1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for ESP8266 NodeMCU with BH1750 Ambient Light SensorMODULE LEARNING VIEW

BH1750 ambient light sensor ESP8266 (read Best ESP8266

A programmable controller that reads inputs, makes decisions, and drives the project's outputs.

What it does here

It is the control centre and must use the documented board, pin map, supply, and logic level.

Buy / compare this part

Advantages

  • Reprogrammable and reusable
  • Large learning ecosystem
  • Complex behaviour remains changeable

Limitations

  • GPIO voltage and current are limited
  • Some pins affect boot or communication
  • Loads normally need a driver

Handling

  • Disconnect power before rewiring
  • Avoid static discharge
  • Never power motors, relays, or pumps directly from GPIO

Specifications to verify

  • Use the exact model, value, package, and rating listed for BH1750 ambient light sensor ESP8266 (read Best ESP8266; similar-looking parts are not always interchangeable.
  • Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
Pdevelopment boards)PART1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for ESP8266 NodeMCU with BH1750 Ambient Light SensorPART LEARNING VIEW

development boards)

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for development boards); similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
BBreadboard (optional) (optional)BUILD1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for ESP8266 NodeMCU with BH1750 Ambient Light SensorBUILD LEARNING VIEW

Breadboard (optional) (optional)

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for Breadboard (optional) (optional); similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
BJumper wires (optional)BUILD1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for ESP8266 NodeMCU with BH1750 Ambient Light SensorBUILD LEARNING VIEW

Jumper wires (optional)

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for Jumper wires (optional); similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

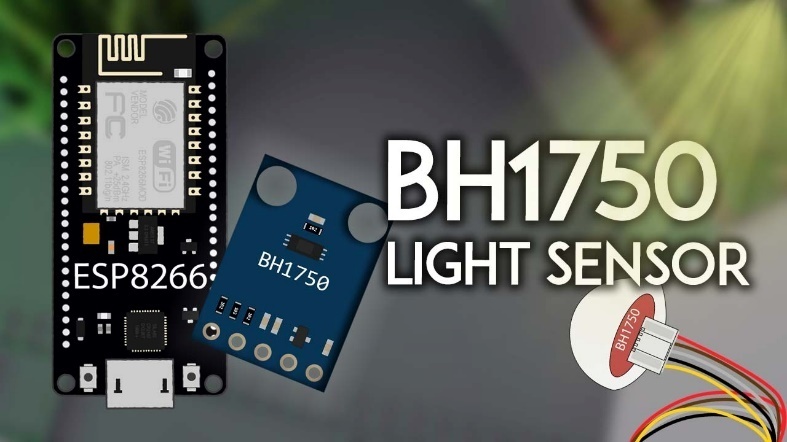

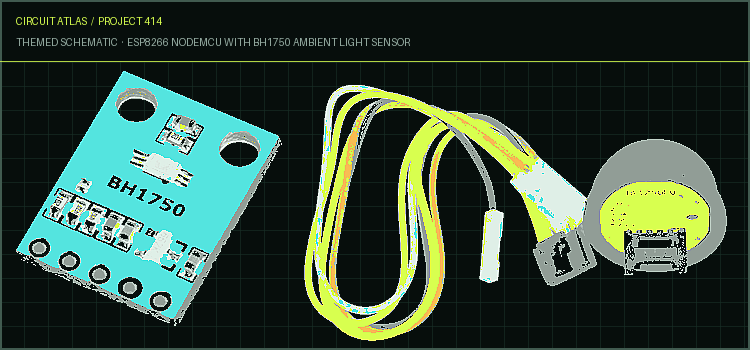

The BH1750 is a light sensor with 16 bits. In this project, you'll learn how to use ESP8266 NodeMCU board and the BH1750 ambient light sensor. I2C communication protocol is used for the sensor to talk to a microcontroller. You'll learn how to connect the sensor to the ESP8266 NodeMCU board, install the necessary libraries, and use a simple sketch to show the sensor readings in the Serial Monitor. Introducing BH1750 Ambient Light Sensor The BH1750 is a 16-bit light sensor that talks to other devices using the I2C protocol. It gives measurements of brightness in lux (SI derived unit of illuminance). It can measure anywhere between 1 lux and 65535 lux. The sensor may come in more than one type of breakout board. Look at the photos below. Both pictures show what a BH1750 sensor looks like.

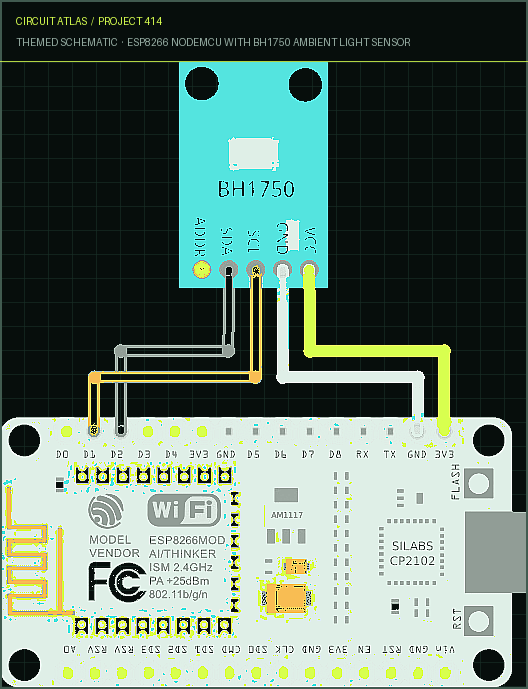

BH1750 Features Here is a list of the things that the BH1750 sensor can do. Check out the BH1750 sensor datasheet for more information. Interface for I2C bus Spectral responsibility is about the same as how the human eye reacts. Illuminance to digital converter Range: 1 – 65535 lux Low current by turning off the power 50Hz / 60Hz Getting rid of light noise You can choose from two different I2C slave-addresses. Small changes in measurements (+/- 20%) Very little is changed by infrared. Supports continuous measurement mode Supports one-time measurement mode Schematic – ESP8266 with BH1750

Measurement Modes The sensor can be used in two different ways to take measurements: continuously or just once. There are three different resolution modes for each mode. In continuous measurement mode, the sensor measures the amount of light in the room all the time. In one-time measurement mode, the sensor only measures the amount of light in the room once, and then it shuts off.

02

Applications

Project build note

The BH1750 is an ambient light sensor, making it suitable for a variety of applications. For example: to detect if it is day or night;

to change the brightness of an LED or turn it on or off based on the amount of light around it; to adjust the LCDs and the brightness of the screen; to find out if an LED is turned on. etc.

03

Parts Required

Project build note

BH1750 ambient light sensor ESP8266 (read Best ESP8266 development boards) Breadboard (optional) (optional) Jumper wires (optional) Open the Serial Monitor at a baud rate of 9600 after the code has been successfully uploaded.

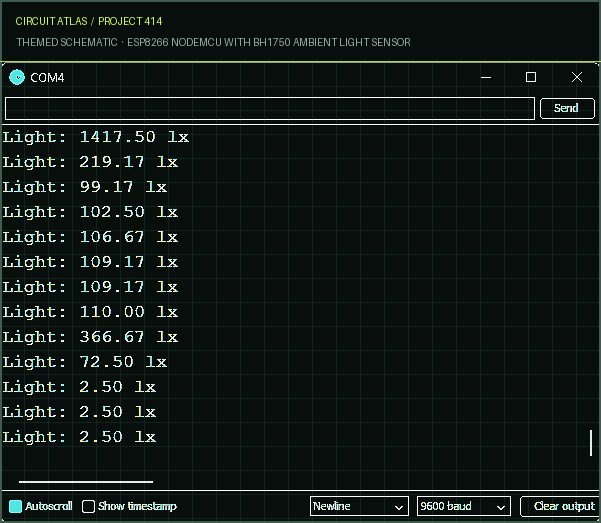

The Serial Monitor should show new measurements of brightness.
