Project overview
Project build note418.ESP8266 NodeMCU with HC-SR04 Ultrasonic Sensor with Arduino IDE This project shows how to use the Arduino core to connect the HC-SR04 ultrasonic sensor to the ESP8266 NodeMCU board. Sonar is used by the ultrasonic sensor to figure out how far away an object is. We'll show you how to connect the sensor to the ESP8266 and give you a few examples sketches for using the HC-SR04 to figure out how far away
something is.
The HC-SR04 Ultrasonic Sensor
Project build noteSonar is used by the HC-SR04 ultrasonic sensor to figure out how far away an object is. This sensor has a reading range of 2 centimetres to 400 centimetres (0.8 inches to 157 inches) and an accuracy of 0.3 centimetres (0.1 inches), making it suitable for the majority of projects undertaken by hobbyists. Also, this module has ultrasonic transmitter and receiver modules built in. How does an ultrasonic sensor like the HC-SR04 work? Sonar is used by the ultrasonic sensor to figure out how far away an object

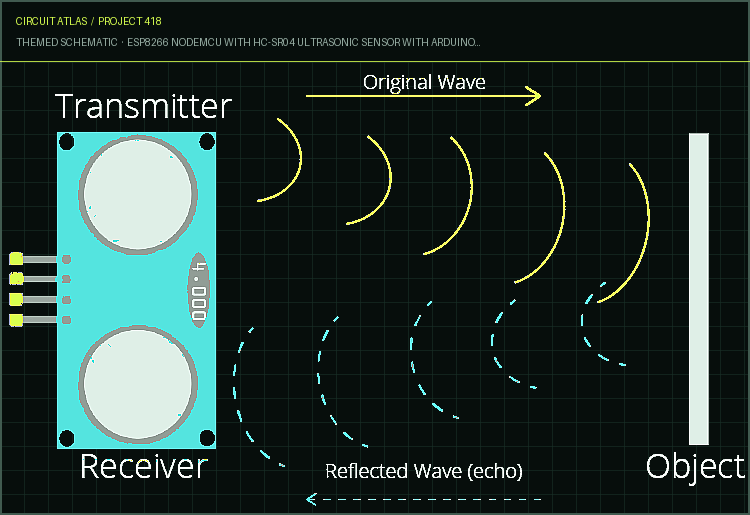

is. How it works is as follows
Project build noteThe high-frequency sound is sent out by the ultrasound transmitter (trig pin) (40 kHz). The sound is carried by the air. It goes back to the module if it finds something.
The reflected sound is picked up by the echo pin, which is an ultrasound receiver (echo). We can figure out how far away something is by figuring out how fast the sound is travelling through the air and how much time has passed since the
signal was sent and received. Here's how it works
Project build notedistance to an object = ((speed of sound in the air)*time)/2 speed of sound in the air at 20oC (68oF) = 343m/s Parts Needed Here’s a list with the parts required to complete this example: HC-SR04 Ultrasonic Sensor ESP8266 (read Best ESP8266 development boards) 0.96-inch I2C OLED Display SSD1306 Breadboard Jumper wires Schematic Diagram: ESP8266 with HC-SR04 and OLED Display
After the uploading process is complete, start the Serial Monitor with a baud rate of 115200. If you restart the board by pressing the RST button that's built into it, the Serial Monitor will begin to display the distance between the board and the nearest object. Something like what is in the picture. Code to Display the ESP8266 Distance Sensor (HC-SR04) on an OLED Display, to follow along with this example, you will need to ensure that the Adafruit SSD1306 and Adafruit GFX libraries are installed on your computer. Through the Arduino Library Manager, you'll be able to install these libraries on your computer. You can get the SSD1306 library from Adafruit by going to Sketch > Library > Manage Libraries , searching for "SSD1306," and then installing it.
You built ESP8266 NodeMCU with HC-SR04 Ultrasonic Sensor with Arduino IDE.
