IoT Based Analog/Digital OLED Clock using NodeMCU

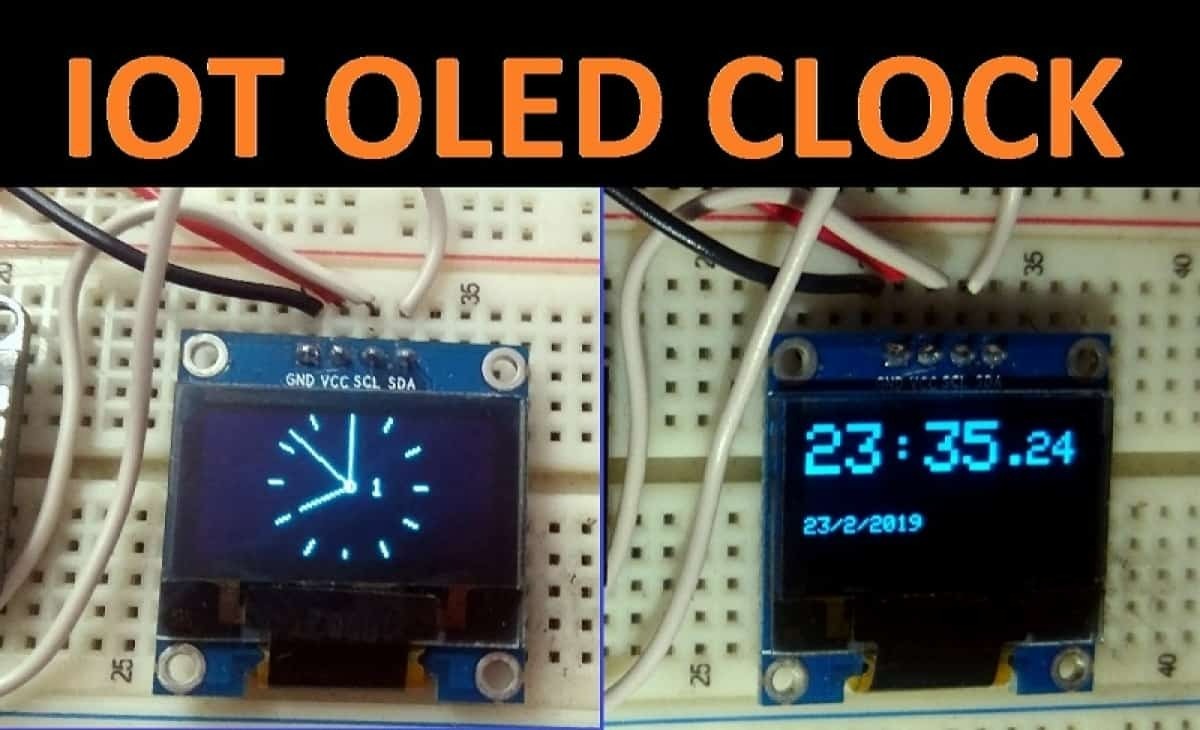

In this post, we will learn how to construct an analog/digital OLED clock using NodeMCU that is based on the Internet of Things (IoT). There is no requirement for an RTC Module of any kin…

IoT Based Analog/Digital OLED Clock using NodeMCU - source illustration from page 1270
PROJECT#473
TRACKIoT
PARTS02
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

IoT Based Analog/Digital OLED Clock using NodeMCU is a iot project. In this post, we will learn how to construct an analog/digital OLED clock using NodeMCU that is based on the Internet of Things (IoT). There is no requirement for an RTC Module of any kin…

Source pages
1270-1273
Named parts
2
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply
  • Computer with a data-capable USB cable

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

NAMED PROJECT INVENTORY2 PART LINES
PARTTYPEQTYREADY
MNodeMCU - ESP8266-12E BoardMODULE1
What's this?Image, role, pros, cons, handling & specifications
NodeMCU ESP8266 development boardMODULE LEARNING VIEW

NodeMCU - ESP8266-12E Board

A programmable controller that reads inputs, makes decisions, and drives the project's outputs.

What it does here

It is the control centre and must use the documented board, pin map, supply, and logic level.

Buy / compare this part

Advantages

  • Reprogrammable and reusable
  • Large learning ecosystem
  • Complex behaviour remains changeable

Limitations

  • GPIO voltage and current are limited
  • Some pins affect boot or communication
  • Loads normally need a driver

Handling

  • Disconnect power before rewiring
  • Avoid static discharge
  • Never power motors, relays, or pumps directly from GPIO

Specifications to verify

  • Use the exact model, value, package, and rating listed for NodeMCU - ESP8266-12E Board; similar-looking parts are not always interchangeable.
  • Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
MOLED Display - 0.96" I2C OLED DisplayMODULE1
What's this?Image, role, pros, cons, handling & specifications
IoT Based Analog/Digital OLED Clock using NodeMCU - source illustration from page 1270MODULE LEARNING VIEW

OLED Display - 0.96" I2C OLED Display

An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.

What it does here

It presents the circuit result or acts on the physical world.

Buy / compare this part

Advantages

  • Makes system state visible
  • Can be tested separately
  • Supports clear troubleshooting

Limitations

  • Loads may exceed controller current
  • Polarity or driver direction can matter
  • Inductive loads create voltage spikes

Handling

  • Use the documented driver stage
  • Check polarity and load current
  • Add flyback protection for inductive loads

Specifications to verify

  • Use the exact model, value, package, and rating listed for OLED Display - 0.96" I2C OLED Display; similar-looking parts are not always interchangeable.
  • Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

In this post, we will learn how to construct an analog/digital OLED clock using NodeMCU that is based on the Internet of Things (IoT). There is no requirement for an RTC Module of any kind, such as DS1307 or DS3231. Simply the current time and date will be retrieved from a server located online. The time that was downloaded can be shown either analogically or digitally at your option.

02

Component Required

Project build note

NodeMCU - ESP8266-12E Board OLED Display - 0.96" I2C OLED Display Connecting Wires Breadboard

03

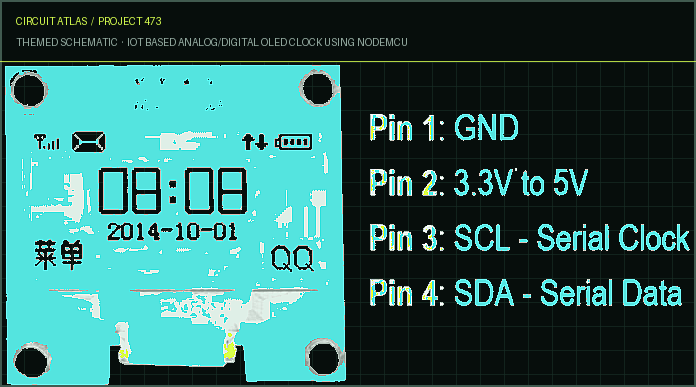

0.96″ I2C OLED Display

Project build note

This is a blue OLED display module with a 0.96-inch screen. SPI and IIC protocols can be used to create an interface between the display module and any microcontroller. This image has a resolution of 128 by 64 pixels. Display board, display, and a male header with 4 pins that has been pre- soldered to the board are all included in this package. Organic Light-Emitting Diodes, also known as OLEDs, are a type of self- illuminating technology that are made up of a multi-layered organic film that is very thin and is sandwiched in between an anode and a cathode. OLED technology, on the other hand, does not require a backlight, in

contrast to LCD. It is widely acknowledged that organic light-emitting diode (OLED) technology represents the pinnacle of innovation for the next generation of flat-panel displays and boasts a great application potential for nearly every type of display.

04

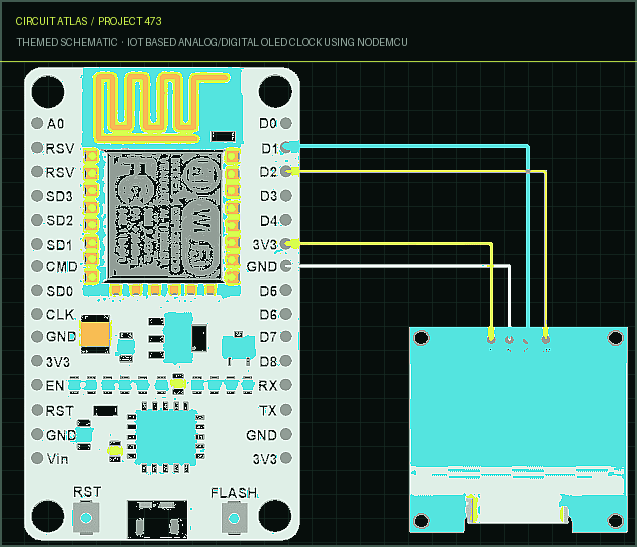

Circuit Diagram & Connection

Project build note

With the help of the below Circuit diagram, you can make IoT Based Analog/Digital OLED Clock using NodeMCU. Therefore, construct the circuit in the manner depicted in the image. Establish the connection between the SCL Pin of the OLED and the D1 Pin of the NodeMCU. Connect the SDA pin of the OLED to the D2 pin of the NodeMCU, as well. Join the 3.3V and GND pins of the OLED to the corresponding pins on the NodeMCU.

05

Working of the Project

Project build note

The Arduino Integrated Development Environment (IDE) is used to construct a sketch that precisely sets the date and time by accessing an NPT time server. After that, the date and time are shown on an OLED display,

and they are also visible in a web browser that is connected to the ESP8266 webserver. On this web page, you have the ability to specify variables such as the Time Zone, 24-hour clock, daylight savings time, and a variable to manage the time server update interval. AJAX is being used on the website to keep the time current without having to completely reload the page. The NTPClient library establishes a connection between the ESP8266 WiFi and a time server; the latter then provides the module with accurate time data. Network Time Protocol is abbreviated as NTP. The final one is the Arduino Time library, which translates Unix timestamps, also known as the Unix epoch, into seconds, minutes, hours, days of the week, months, and years. The number of seconds that have passed since the start of the Unix operating system on January 1, 1970 (midnight UTC/GMT) is referred to as the epoch. The time server transmits the time in the Unix epoch format, which needs to be translated. This library accomplishes all of the work necessary to convert the time. The NTPClient library is setup to obtain time information (Unix epoch) from the server time.nist.gov (GMT time), along with an offset of 1 hour (==> GMT + 1-time zone), which is equal to 3600 seconds, as specified in the RFC.
