Light Dimmer that Doubles as Voltmeter
Measure the alternating current mains voltage without a multimeter. To convert the light dimmer that is normally found at the bottom of a table lamp into a voltmeter all that is required…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Light Dimmer that Doubles as Voltmeter is a electronics project. Measure the alternating current mains voltage without a multimeter. To convert the light dimmer that is normally found at the bottom of a table lamp into a voltmeter all that is required…
- Source pages
- 112-113
- Named parts
- 1
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- This project may involve hazardous voltage. Work only with qualified supervision and proper isolation.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
MAXIMUM
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for MAXIMUM; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Light Dimmer that Doubles as Voltmeter: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteMeasure the alternating current mains voltage without a multimeter. To convert the light dimmer that is normally found at the bottom of a table lamp into a voltmeter all that is required of you is a minor adjustment. When the dimmer is turned counterclockwise to a position where the illumination of the filament can just be seen, the point at which the dimmer is turned can be used as a reference point for measuring the voltage.

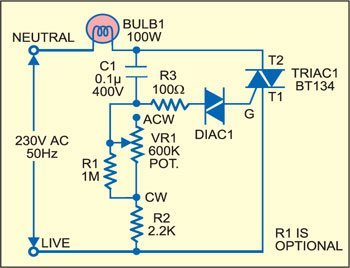

Light dimmer circuit
Circuit operation Turn on the lamp using a variac, and provide it with 50 volts of power. Turn the potmeter knob counterclockwise until the glow of the filament can just be seen, and then put a mark next to the cursor indicating that the voltage is 50V. Continue to use the variac to get the voltage up to 100, 150, 180, 200, and 220, and make sure the scale is calibrated for each of these voltages as you go. At this point, a voltage scale is developed. The only catch is that the voltage is growing in a counterclockwise manner, which in and of itself should not be a problem at all. On the other hand, contrary to what is depicted in the sketch, the scale will not be linear. The accuracy of the measurement will be determined by the calibration standard that was applied, and the tolerance will be on the order of 1 percent 5 volts. When trying to achieve higher precision and tolerance, the diameter of the knob on the potmeter and the fineness of the cursor can be of assistance. A regular fan regulator can be used with a lamp that has 40, 60, or 100 watts, and the regulator can be calibrated to match the wattage of the lamp. The lowest voltage that can be measured is inherently constrained to the level necessary to achieve the "just visible" requirement. In this configuration, the maximum scale voltage will be close to 220 volts. R1 will be open circuited.
