Smart Switch
A mechanical switch or a relay provides a straightforward option for turning on the mains voltage. However, due to the large amount of space that is required for the relay and the other c…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Smart Switch is a electronics project. A mechanical switch or a relay provides a straightforward option for turning on the mains voltage. However, due to the large amount of space that is required for the relay and the other c…
- Source pages
- 114-115
- Named parts
- 1
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- This project may involve hazardous voltage. Work only with qualified supervision and proper isolation.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Push button
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for Push button; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Smart Switch: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteA mechanical switch or a relay provides a straightforward option for turning on the mains voltage. However, due to the large amount of space that is required for

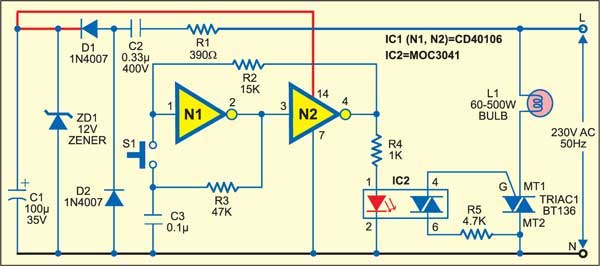

the relay and the other components that are associated with it, they cannot be installed in a typical switch box. A superior option is provided by this smart switch circuit, which is depicted here. Smart switch circuit It is nothing more than a simple on/off controller that makes use of an electronic circuit that operates in the same manner as a standard switch. Your switch panel can get a more aesthetically pleasing appearance by using a flat push button control. The switching circuit consists of an optocoupler circuit that gets input from a bistable switch made by a couple of Schmitt trigger gates that control a triac. The input from the bistable switch is then passed on to the optocoupler circuit. To turn the load on or off, one need only push the push button switch for a moment at a time. The optocoupler controls the triac in such a way that it is toggled whenever the switch is pressed. In contrast to the arbitrary phase switching, the optocoupler contains a zero- crossing detector that acts as a shield against radio interference. Because the mains is not isolated, the only way to protect yourself from a potentially fatal shock is to utilize a push button switch of sufficient quality and insulation. Verify that the triac has the capacity to withstand the amount of current that will be passed through it. In the event that it is necessary, multiple push buttons can be wired in parallel to provide the ability to toggle the triac from a variety of locations.
You built Smart Switch.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
