Project overview
Project build noteWhen the power supply polarities of an electronic device get switched by accident, the device could get broken. By adding this tiny circuit to the power supply part of the device, the danger can be stopped. This power supply reversal correcter circuit will immediately fix the power supply if the poles are switched. It will also alert you to the mistake by sounding an alarm and showing a light.

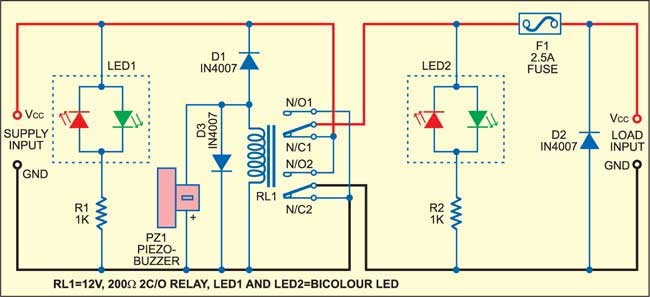

Power Supply Reversal Correcter cum Preventer Circuit The part that controls things is just a relay (RL1). A diode connected in series makes its power supply one-way (D1). So, the relay is normally not doing anything. This setup is hooked up backwards across the output of the power supply. The load gets power from the add-on circuit's output, which goes through the normally closed contacts of the relay and fuse F1. This keeps the relay from making the power supply work harder than it needs to. The normally closed (N/C) contacts of relay RL1 are connected to the input terminals of the power supply in the correct polarity, while the normally open (N/O) contacts are connected to the reverse-polarity terminals. Both LED1 and LED2 are bicolor LEDs, but they only have two pins instead of the usual three. You can also make a 2-lead bicolor LED by soldering the leads of a green LED and a red LED together in reverse polarity. When the input polarity is right, the LEDs light up green. If something is wrong, the LEDs light up red. LED1 shows what's going on with the DC input, and LED2 shows what's going on with the output. LED2 is mostly used to let people know that RL1's contacts are stuck. How a circuit works At the end of this circuit, diode D2 and fuse F1 are added as a simple safety measure. Diode D2 is connected across the power supply with the wrong polarity. If the relay takes a little longer to turn on during an error, supply reversal forward biases diode D2
and almost shorts the DC output. So, the fuse blows right away to cut power to the load. This keeps the circuit from getting damaged. If the power to the add-on circuit is turned around, the forward bias of diode D1 will turn on relay RL1. The contacts of relay RL1 switch places, so the output is switched with respect to the polarity of the input. This makes sure that the output has the right polarity. At the same time, diode D1 sends a forward bias to piezobuzzer PZ1 to start the alarm sounding when the power supply changes. This message is shown by LED1 and PZ1 until the error is fixed. Even if you forget to fix the wrong polarity, it won't hurt the electronic device you have plugged into the power supply because it will be fixed automatically. This circuit is much better than the common diode-bridge protection setup, which is less effective because the bridge diodes change the power supply levels, especially if the battery is low-voltage.
Construction & testing
Project build noteThe circuit can be put together on the relay itself, since all the other parts, like the LEDs and fuse, are already attached to the front panel. If it will be used as a stand- alone unit, the power input and load terminals can be screw types so that they are easy to connect.
