555 Timer PWM Audio Amplifier
The integrated circuit known as "555" is a multipurpose timer that can be utilized for a wide range of applications. We investigate the use of the 555 timer as an astable multivibrator in…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
555 Timer PWM Audio Amplifier is a electronics project. The integrated circuit known as "555" is a multipurpose timer that can be utilized for a wide range of applications. We investigate the use of the 555 timer as an astable multivibrator in…
- Source pages
- 144-145
- Named parts
- 3
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Transformer
A power component supplies, converts, stores, or regulates energy for the project.
What it does hereIt must provide the documented voltage, polarity, isolation, and sufficient current safely.
Buy / compare this part ↗Advantages
- Stable power improves reliability
- Current limiting protects first tests
- Regulation reduces resets and noise
Limitations
- Wrong polarity can cause immediate damage
- Underrated parts overheat
- Mains circuits require qualified supervision
Handling
- Measure output before connection
- Use a fuse or current limit
- Insulate exposed conductors
Specifications to verify
- Use the exact model, value, package, and rating listed for Transformer; similar-looking parts are not always interchangeable.
- Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
What's this?Image, role, pros, cons, handling & specifications
CD-PLAYER
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for CD-PLAYER; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
PART LEARNING VIEWVR1 - preset potentiometer identified in the circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for VR1 - preset potentiometer identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
555 Timer PWM Audio Amplifier: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteThe integrated circuit known as "555" is a multipurpose timer that can be utilized for a wide range of applications. We investigate the use of the 555 timer as an astable multivibrator in this 555 audio PWM project. The common 555 timer integrated circuit (IC) processes audio signals in its own unique method of pulse-width modulation (PWM). The 555 integrated circuit operates in astable mode in this situation. The switching frequency can be adjusted anywhere between 65 and 188 kilohertz. The amplitude of the input signal and the load impedance are taken into consideration when selecting the PWM frequency to be used. You can make the listening experience
more comfortable while maintaining a minimal level of audio distortion by setting VR1.
Working explanation

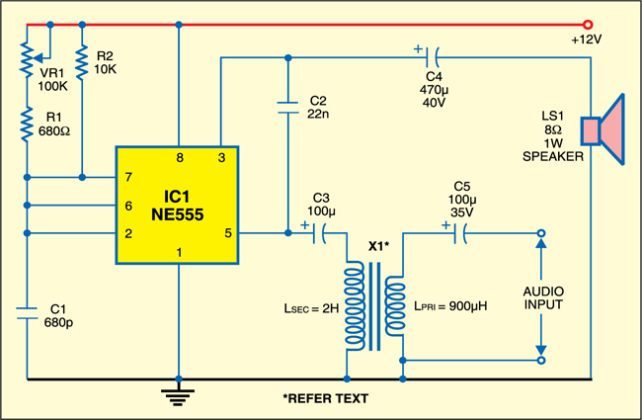

Project build noteWhen using pulse-width modulation, the pulse width of the carrier frequency varies according to the amplitude of the audio signal that is being fed into the system. The audio signal is reproduced accurately thanks to feedback capacitor C2, which is located in the circuit. The most typical method for achieving a satisfactory level of carrier frequency rejection is the application of an output L-C filter. It has been left out for the sake of simplicity. In addition, the speakers are incapable of reacting to the signal at the high frequency. They react to the average DC level that is modulated with the audio signal that is sent into the input by us from the source. It goes without saying that the sound quality is not on par with that of a professional system; yet, it would undoubtedly be an unforgettable adventure to listen to audio played through a 555 chip at volume levels that fill a whole room. 555 Audio PWM circuit Importance should be placed on impedance matching at both the input and the output. Therefore, in order to match the headphone output of a normal CD player to the input of the 555 amp, an input-impedance matching transformer known as X1 is utilized. The load consisted of speakers with an ohm rating of 8 and a watt rating. PWM amplifiers, if they are constructed correctly, have the potential to offer performances that are comparable to those of traditional amplifiers. It is possible to get even higher efficiency and effortless bass.
