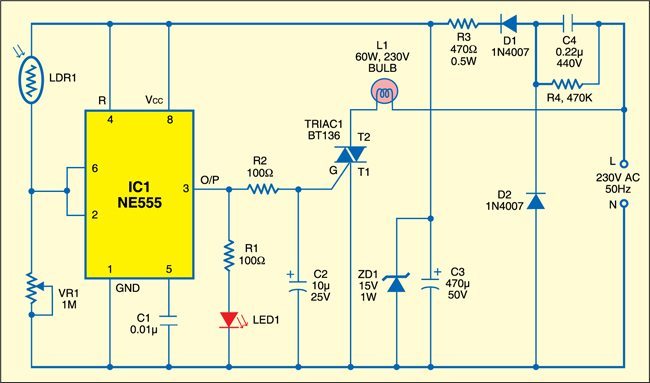

Automatic lights that use LDR technology flicker because of the shift in light intensity that occurs between dawn and dusk. Therefore, compact fluorescent lamps, often known as CFLs, should not be used in such circuits since the flickering light could potentially damage the electronic circuits included within the lamps. The sunset lamp circuit that is described in this article has the ability to solve the problem and promptly turn on the lamp when the light intensity drops below a predetermined threshold. Sunset Lamp circuit description The bistable action is provided by a popular timer IC called NE555 (IC1), which is used in this sunset lamp circuit as a Schmitt trigger. In order to achieve the immediate action, the set and reset operations of the comparators contained within the NE555 are utilized. The upper threshold comparator of IC1 trips when Vcc is 2/3 of its full value, whereas the lower trigger comparator trips when Vcc is 1/3 of its full value. The inputs of the threshold comparator and the trigger comparator of the NE555 are coupled together, and they are connected to the voltage divider that is produced by the LDR1

and the VR1 components. The voltage that is measured across LDR1 is influenced by the amount of light that is present. When the sun is shining, LDR1 has a low resistance, which causes the input voltage to the threshold comparator to rise above 2/3Vcc. As a result, the threshold comparators output drops to zero, which in turn resets the flip-flop that is included within IC1. However, the input to the trigger comparator is still greater than 1/3Vcc, which maintains the low state of the output pin 3 of IC1. Because there is not enough current for it to be fired, the triac BT136 that is connected to the output pin 3 of IC1 stays in its quiescent state. As a result, lamp L1 is in the "off" position during the day. Circuit operation When the sun goes down, the resistance of LDR1 goes up, and the voltage at the input of the threshold comparator drops to less than 2/3Vcc. Meanwhile, the voltage at the input of the trigger comparator drops to less than 1/3Vcc. As a direct consequence of this, the outputs of both the threshold and trigger comparators will become high, which will cause the flip-flop to become set. This causes the output pin 3 of IC1 to transition from being low to being high. Triac1 is able to conduct electricity after receiving the required gate current from resistor R2. As a result, it finishes off the power supply to the bulb by way of the Triac1. When IC1 is in a state of high output, LED1 will light up to show this. The power supply for the circuit is drawn directly from the mains through capacitor C4, which connects to the circuit. This capacitor is responsible for supplying the circuit with current. The alternating current (AC) that is supplied by capacitor C4 is rectified by diodes D1 and D2, while capacitor C3 provides the necessary smoothing. Zener diode ZD1 supplies the circuit with 15V DC that has been rectified. When the plug is removed from the circuit, the bleeder resistor R4 discharges the capacitor, releasing the voltage it had held. Construct the circuit on any type of multipurpose printed circuit board and encase it in a plug-in adaptor style box. Establish a connection between the adaptor box's pins and the live and neutral terminals. Make sure the box has holes measuring 5 millimeters for the LDR1 and the LED1. Install the plug for the device in a location where there is

sufficient daylight to prevent the circuit from functioning during the day. During the night, the light from the lamp must not shine upon LDR1. Caution is advised because this circuit has 230V AC running through it, and the majority of its points are at mains fatal potential. Therefore, do not touch any point in the circuit while it is powered, and only use a screwdriver made of plastic or insulation to make adjustments to the preset.
