Cordless Multi-Door Alarm
Stop a burglary from happening by setting off this alarm circuit when someone breaks in. Each door is protected by its own circuit, which is made up of a 555 timer IC and a reed switch ma…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Cordless Multi-Door Alarm is a electronics project. Stop a burglary from happening by setting off this alarm circuit when someone breaks in. Each door is protected by its own circuit, which is made up of a 555 timer IC and a reed switch ma…
- Source pages
- 167-170
- Named parts
- 6
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- This project may involve hazardous voltage. Work only with qualified supervision and proper isolation.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Buzzer
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for Buzzer; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications
Power supply
A power component supplies, converts, stores, or regulates energy for the project.
What it does hereIt must provide the documented voltage, polarity, isolation, and sufficient current safely.
Buy / compare this part ↗Advantages
- Stable power improves reliability
- Current limiting protects first tests
- Regulation reduces resets and noise
Limitations
- Wrong polarity can cause immediate damage
- Underrated parts overheat
- Mains circuits require qualified supervision
Handling
- Measure output before connection
- Use a fuse or current limit
- Insulate exposed conductors
Specifications to verify
- Use the exact model, value, package, and rating listed for Power supply; similar-looking parts are not always interchangeable.
- Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
What's this?Image, role, pros, cons, handling & specifications
Transformer
A power component supplies, converts, stores, or regulates energy for the project.
What it does hereIt must provide the documented voltage, polarity, isolation, and sufficient current safely.
Buy / compare this part ↗Advantages
- Stable power improves reliability
- Current limiting protects first tests
- Regulation reduces resets and noise
Limitations
- Wrong polarity can cause immediate damage
- Underrated parts overheat
- Mains circuits require qualified supervision
Handling
- Measure output before connection
- Use a fuse or current limit
- Insulate exposed conductors
Specifications to verify
- Use the exact model, value, package, and rating listed for Transformer; similar-looking parts are not always interchangeable.
- Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
What's this?Image, role, pros, cons, handling & specifications
NEAR
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for NEAR; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
NEUTRAL
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for NEUTRAL; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
PART LEARNING VIEWVR1, VR2, VR3 - preset potentiometers identified in the circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for VR1, VR2, VR3 - preset potentiometers identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Cordless Multi-Door Alarm: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 2 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

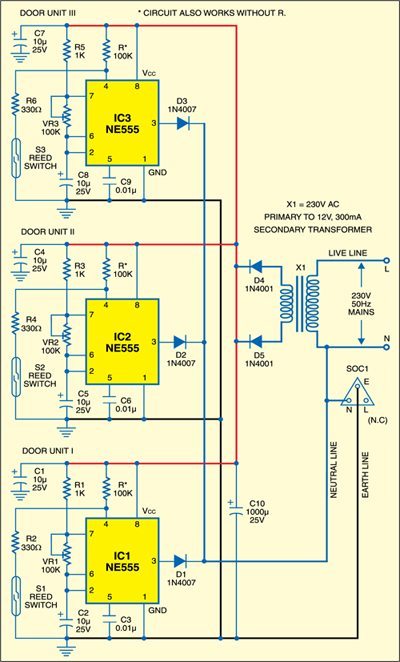

Project build noteStop a burglary from happening by setting off this alarm circuit when someone breaks in. Each door is protected by its own circuit, which is made up of a 555 timer IC and a reed switch magnet. All three units get their power from the same source. The buzzer
can be plugged into the earth line of a socket in any room of the same building that has a proper earth line connection. There's no need for wires to be run from different rooms to the buzzer unit. Connect the reed switch S1 near the magnet of gate 1 to the door-1 alarm unit. Connect IC1 as a frequency oscillator, and use VR1 to set the door-1 alarm unit to the frequency you want, say between 1 Hz and 3 Hz. Connect reed switch S2 near gate 2's magnet to the door-2 alarm unit. Connect IC2 as a frequency oscillator as well, and use VR2 to set the frequency of the door-2 alarm between 5 and 7 Hz. Connect the reed switch S3 near the magnet of gate 3 to the door-3 alarm unit. You can also use IC3 as a frequency oscillator. Use VR3 to set the frequency of the door-3 alarm between 10 and 12 Hz. The alarm circuits need a power supply, which is made up of a bridge rectifier and a filter capacitor C10. When all the doors are closed, which is normal, reset pin 4 of IC1 through IC3 stays low. So, these don't move back and forth, and the piezobuzzer PZ1 stays quiet. When door 1 is opened, the magnet moves away from the reed switch S1. When door 1 is opened, IC1 sends out signals at 1-3Hz, and the piezobuzzer beeps. When door 2 is opened, IC2 sends out signals between 5 and 7 Hz, and the piezobuzzer beeps to show that door 2 is open. In the same way, when door 3 is opened, the piezobuzzer beeps at a rate of 10 to 12 Hz to let you know. So, if you're sitting in a room with a buzzer unit, you can easily tell (by the sound of the buzzer) which room someone has entered. Fig. 2: Circuit of remote buzzer unit As shown in Fig. 1, put the circuit together on a general-use PCB and connect the output to any socket (SOC1) inside the building. SOC1 doesn't have a connection to

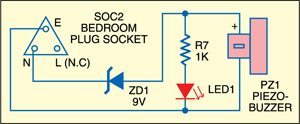

the mains line wire. The primary of the step-down transformer, which is part of the power supply, is connected to live and neutral wires. All three units are powered by a single power supply that has been turned around. Through an outside wire, connect the reed switch near the gate magnet. Plug the piezobuzzer into the "ground" and "neutral" lines of a socket (SOC2) in the room you want to use it in. There's no need to run wires from the outside to the buzzer unit. The power line inside the building will be used for this project. EFY lab. In the buzzer unit, a zener diode (ZD1) is used because the voltage between earth and neutral is around 9V instead of 0V. If you find the perfect zero-volt difference between the ground and neutral lines, the circuit will work even without ZD1.
You built Cordless Multi-Door Alarm.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
School/College Quiz Buzzer
Ready to reuse what you learned in another project from the same track?
Start this project →
