Automatic Parking Light for Cars

At night, parking lights make your parked vehicle more apparent to passing cars, reducing the risk that they will collide with it. However, these lights will draw a significant amount of…

Automatic Parking Light for Cars - source illustration from page 179
PROJECT#092
TRACKElectronics
PARTS01
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

Automatic Parking Light for Cars is a electronics project. At night, parking lights make your parked vehicle more apparent to passing cars, reducing the risk that they will collide with it. However, these lights will draw a significant amount of…

Source pages
179-180
Named parts
1
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

NAMED PROJECT INVENTORY1 PART LINES
PARTTYPEQTYREADY
ST1, T2, T3, T4 - transistor stages identified in the circuitSEMICONDUCTOR1
What's this?Image, role, pros, cons, handling & specifications
Automatic Parking Light for Cars - source illustration from page 179SEMICONDUCTOR LEARNING VIEW

T1, T2, T3, T4 - transistor stages identified in the circuit

A semiconductor stage performs switching, amplification, regulation, rectification, or logic.

What it does here

It controls current or signal flow at a defined point in the circuit.

Buy / compare this part

Advantages

  • Fast and efficient
  • Compact
  • Can control larger loads from smaller signals

Limitations

  • Pin order varies
  • Sensitive to overvoltage and reverse polarity
  • May need cooling or bias components

Handling

  • Verify the datasheet pinout
  • Avoid static and soldering heat
  • Check notch, stripe, or flat-face orientation

Specifications to verify

  • Use the exact model, value, package, and rating listed for T1, T2, T3, T4 - transistor stages identified in the circuit; similar-looking parts are not always interchangeable.
  • Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

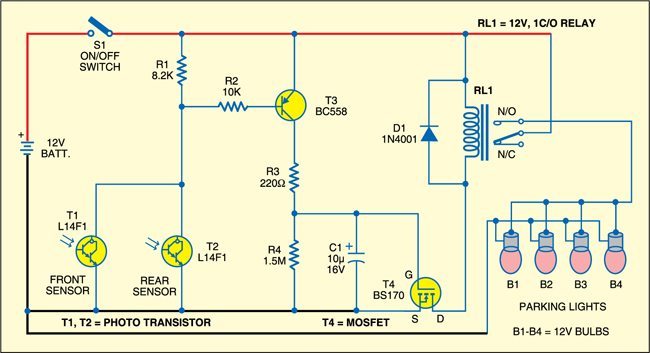

At night, parking lights make your parked vehicle more apparent to passing cars, reducing the risk that they will collide with it. However, these lights will draw a significant amount of electricity from the battery in your vehicle. The following description is of a straightforward automatic parking light system that requires no standby current to function. When the light of an oncoming car is detected from either the back or front side, the circuit is programmed to switch on the parking lights automatically for a period of thirty seconds. This automatic feature offers increased protection to a parked car during the night. Circuitry for an automatic parking light system The circuit is constructed using discrete components along with the transistors T1 through T3, the MOSFET T4 (BS170), and other transistors. The front and rear sensors are represented by the Darlington phototransistors T1 and T2 (both of which are L14F1) When the light from an incoming vehicle shines on the relevant photo- transistor, it causes transistor T3 to current, which in turn triggers the gate of MOSFET T4 via resistance R3. When resistor R4 and capacitor C1 are energized for a certain amount of time, relay RL1 becomes energized. This turns on the parking lights (B1
