Crystal Based 50Hz Generator
The following diagram illustrates a straightforward circuit for generating 50Hz frequency utilizing a crystal as the active component. Inverter circuits are able to make advantage of the…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Crystal Based 50Hz Generator is a electronics project. The following diagram illustrates a straightforward circuit for generating 50Hz frequency utilizing a crystal as the active component. Inverter circuits are able to make advantage of the…
- Source pages
- 183-185
- Named parts
- 3
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- This project may involve hazardous voltage. Work only with qualified supervision and proper isolation.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
CD4027
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for CD4027; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
LM324
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for LM324; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
CD4060
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for CD4060; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Crystal Based 50Hz Generator: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

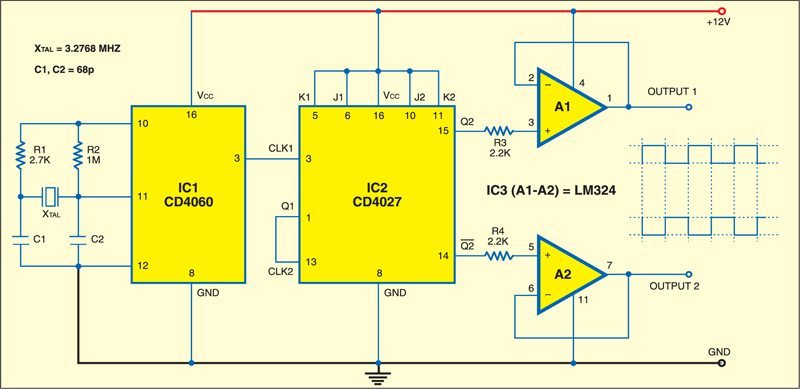

Project build noteThe following diagram illustrates a straightforward circuit for generating 50Hz frequency utilizing a crystal as the active component. Inverter circuits are able to make advantage of the pulses that it produces, which have an alternating frequency of 50 Hz and a duty cycle of 50%. It consists of a dual J-K flip-flop (CD4027), an operational amplifier (LM324), and a few discrete components. The CD4060 is its counter and oscillator, and it has 14 stages. Crystal based 50Hz generator circuit The oscillator is constructed with an IC CD4060 (IC1) as its center and a crystal operating at 3.2768 MHz. Power can be controlled by the use of the resistor R1. The biasing resistor is denoted by R2. R1 supplies the requisite minimum transconductance, which is required for beginning oscillations and keeping them going once they are established. In order to obtain a frequency of 200 Hz at pin 3 of the CD4060, the oscillator frequency is first divided by 14. With the assistance of a dual JK flip-flop CD4027, the frequency of 200Hz is further divided by the number 4. Therefore, the frequency of 50 Hz is generated at pin 15 of CD4027, while the complement of this frequency is generated at pin 14. The frequency that is being created has a duty cycle of fifty percent. The operational amplifiers A1 and A2 of the LM324 act as a buffer for the frequency of 50 hertz. Inverter circuits make use of the square wave outputs of the operational
amplifiers that are available at pins 1 and 7. These outputs have the opposite phase of the square wave. Assemble the circuit on a PCB that can be used for a variety of purposes, and then enclose it in a cabinet that has sufficient room for the battery and the switches. To provide power to the circuit, use either a 12V AC converter or a 12V battery.
You built Crystal Based 50Hz Generator.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
Electronic Ignition System for Old Cars
Ready to reuse what you learned in another project from the same track?
Start this project →
