Micro-Power Flasher
The intruders that are attempting to break into your home can be confused by using this micro-power flasher that you have. The device gives the idea that there are people present within t…

Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Micro-Power Flasher is a electronics project. The intruders that are attempting to break into your home can be confused by using this micro-power flasher that you have. The device gives the idea that there are people present within t…
- Source pages
- 212-213
- Named parts
- 2
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications

CD4093
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for CD4093; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications

LED1 - indicator LED identified in the circuit
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for LED1 - indicator LED identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Micro-Power Flasher: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals

Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

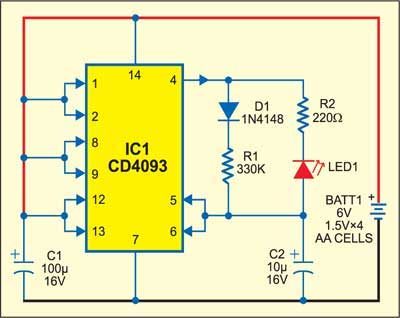

Project build noteThe intruders that are attempting to break into your home can be confused by using this micro-power flasher that you have. The device gives the idea that there are people present within the house at all times of the day and night by continuously emitting flashing light from its front-facing LEDs. The circuit may be powered by four AA-size batteries rated at 1.5V continuously for a significant amount of time. Both the human eye and the human brain have a rapid response to fast shifts in the brightness of the light, particularly flashing light. For full brightness to be perceived, at least 10 milliseconds of illumination from a flashlight is required. The capacity of the brain or retina known as "persistence of vision" maintains the memory of the vision for a period of twenty milliseconds (ms), after which it gradually disappears. The human eye is only able to distinguish individual flashes of the flashing light if there is more than 20 milliseconds of time in between each flash. A flashing light with a period of repetition that ranges from half a second to five seconds is particularly appealing to it. A high-intensity red LED is utilized in conjunction with a low-power CMOS
integrated circuit called CD4093 to produce crisp flashes. The CD4093 integrated circuit is a quad NAND gate, however only one of its gates functions as an oscillator here. To prevent floating and the subsequent harm caused by statics, all of the unused inputs have been tied to the positive rail in order to maintain their logic state as "1." LED1 is wired in such a way that it draws current from the storage capacitor C2, which is attached to it. Since LED1 is not directly driven from the output of the IC, this helps to reduce the amount of power that is drawn from the battery. The amount of current that is drawn from the battery to charge capacitor C2 is determined by the value of the resistor R1. The figure of 330 kilo-ohms indicates that the current drain will be around 18 micro-amperes. (Volts per Resistance = 18 microamperes) The amount of current that can flow through LED1 is controlled by resistor R2. A 1.5V AA cell with a rating of 1.6 Ah has a typical shelf life of five years provided it is properly stored. A high-quality and low-leakage battery has the potential to power the flasher for close to three years. The circuit can be built on a more compact perforated board, which reduces the associated expenses. Enclose it in a compact case that has a front panel that looks like it came from a burglar alarm. This will ensure that the blinking LED1 will appear to be the indicator that the alarm is active. For a more arresting appearance, use an LED that has a high brightness and is transparent. In the event that the power goes out, the flashlight can also be utilized as a keyhole finder and as a way to navigate through hallways and exit doors.
