Optical Remote Switch
You are able to control the on/off functionality of any electrical or electronic load by using this optical remote switch. The tiny transmitter unit (shown in Figure 1) and the reception…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Optical Remote Switch is a electronics project. You are able to control the on/off functionality of any electrical or electronic load by using this optical remote switch. The tiny transmitter unit (shown in Figure 1) and the reception…
- Source pages
- 213-215
- Named parts
- 2
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
CD4027
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for CD4027; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
L14F - specified part
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for L14F - specified part; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Optical Remote Switch: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 2 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteYou are able to control the on/off functionality of any electrical or electronic load by using this optical remote switch. The tiny transmitter unit (shown in Figure 1) and the reception unit (shown in Figure 2) that are used to trigger the relay are standard components of any remote-control system. Optical remote switch: transmitter

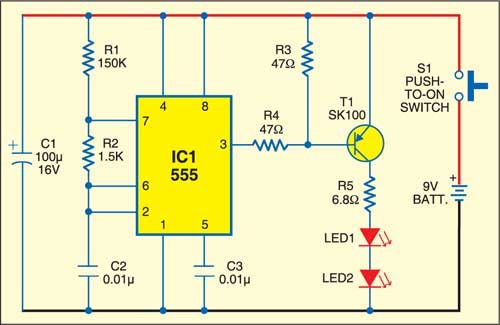

Fig1. Optical remote switch: Transmitter circuit An astable multivibrator based on IC 555 is utilized as the optical transmitter in this system. It operates at a frequency of 1 kHz. Two high-intensity red LEDs are utilized, each of which is operated by a pnp transistor, and they are placed at the output of the transmitter. As soon as the optical transmitter is turned on, the red LEDs begin to illuminate. The 1kHz coding signal is contained within the red light that is emitted. A 9V PP3 battery is required for the optical transmitter to function. Utilize a reflector in your torch so that you can improve its performance and increase its range. Optical remote switch: receiver

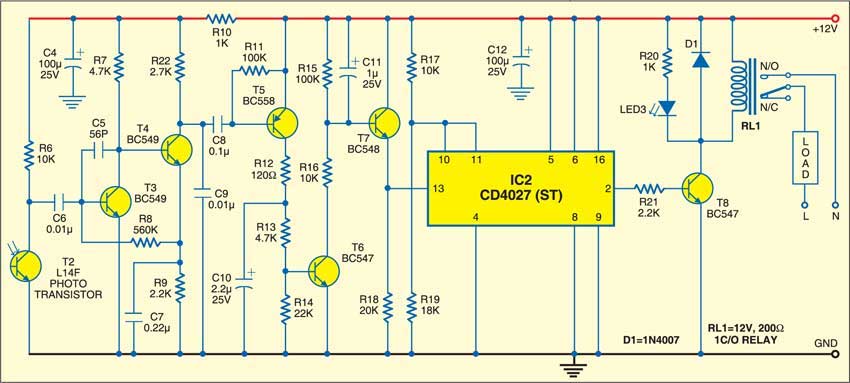

The signal amplifier, switching circuit, flip-flop, and relay are all components that make up the receiver unit. Signals (tones) at an audio frequency of 1 kHz are amplified by the signal amplifier. The switching circuit sends a pulse to the flip-flop circuit, which is designed around a CMOS integrated circuit manufactured by STMicroelectronics. The output of the CD4027 alternates between being high and low in response to each pulse that is entered. An npn transistor amplifies the high-to-low changes of the flip- flop, which then energizes the relay, which, in turn, regulates the load that is applied to the external circuit. For powering the receiver unit, use a controlled 12 V supply. After the 12V DC supply has been connected to the receiver unit, the LEDs that are used in the transmitter should be oriented so that they face the sensor on the receiver (L14F). Maintain a momentary press on the S1 switch on the transmitter. This will cause the relay to become active. The relay can be turned off by repeatedly pressing the S1 switch. This optical remote control performs admirably in environments with moderate to low levels of illumination.
You built Optical Remote Switch.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
