Project overview

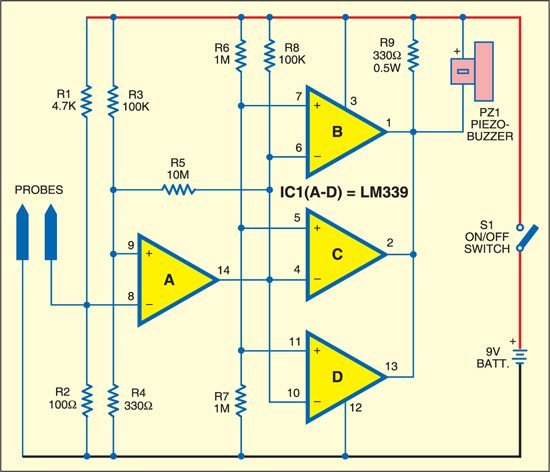

Project build noteThis inexpensive and easy-to-use auditory continuity tester just requires one LM339 quad comparator IC, a few resistors, and a piezo buzzer. One 9V battery is all that's needed to power the entire circuit, including the comparator. Only one of the quad comparators is put to use in its intended capacity, while the other three comparators, which are connected in parallel, are employed for the purpose of driving directly a medium power piezo buzzer. A voltage divider composed of the resistors R1 and R2 places the inverting pin 8 of comparator 'A' at a level of about 190 mV, while the resistor pair composed of R3 and R4 keeps the non-inverting pin 9 of the same comparator 'A' at a level of around 30 mV at all times. The necessary feedback is provided by resistor R5, which is linked between the output and the input that does not invert the signal. Audible Continuity Tester Circuit
The use of positive feedback to introduce a little amount of hysteresis can be an efficient way to solve the problem. This has the effect of separating the switching points for going up and going down, such that once a transition has begun, the input needs to go through a large reversal before the next transition can take place. Circuit operation The output is at a low level while the device is in its quiescent state because the potential at the device's inverting pin is 190 millivolts (mV) higher than the potential at the device's non-inverting pin (30 mV). When the voltage is low at the inverting terminals of the comparators labeled 'B,' 'C,' and 'D,' which are connected in parallel, their outputs transition to the high state (closer to the supply voltage). Because of this, the buzzer's two input terminals are almost at the same voltage, which prevents it from emitting a sound.
If a resistance of less than around 15 ohms is connected between the probe tips, then and only then will the inverting terminal of comparator 'A' fall below 30 mV. This will cause the polarity of the output pin 14 of comparator 'A' to switch. Because of this, the aggregate output of comparators 'B,' 'C,' and 'D' will drop, which will result in the buzzer being activated. In order to directly drive a buzzer with a medium amount of power, the output node of the three comparators is capable of sinking more than 50 mA of current. The buzzer will be able to be activated with a resistance of less than 15 ohms if you use the circuit that has been provided here. If you desire an even lower or higher resistance for turning on the buzzer, you can accomplish the same thing by adjusting the values of the resistors R1 through R4.
