Anti-Theft Alarm
You can prevent a break-in by using this anti-theft alarm circuit that you set up. When someone tries to force their way into your house or place of business by banging, pushing, or hitti…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Anti-Theft Alarm is a electronics project. You can prevent a break-in by using this anti-theft alarm circuit that you set up. When someone tries to force their way into your house or place of business by banging, pushing, or hitti…
- Source pages
- 281-283
- Named parts
- 6
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Buzzer
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for Buzzer; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications
Power supply
A power component supplies, converts, stores, or regulates energy for the project.
What it does hereIt must provide the documented voltage, polarity, isolation, and sufficient current safely.
Buy / compare this part ↗Advantages
- Stable power improves reliability
- Current limiting protects first tests
- Regulation reduces resets and noise
Limitations
- Wrong polarity can cause immediate damage
- Underrated parts overheat
- Mains circuits require qualified supervision
Handling
- Measure output before connection
- Use a fuse or current limit
- Insulate exposed conductors
Specifications to verify
- Use the exact model, value, package, and rating listed for Power supply; similar-looking parts are not always interchangeable.
- Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
What's this?Image, role, pros, cons, handling & specifications
Transformer
A power component supplies, converts, stores, or regulates energy for the project.
What it does hereIt must provide the documented voltage, polarity, isolation, and sufficient current safely.
Buy / compare this part ↗Advantages
- Stable power improves reliability
- Current limiting protects first tests
- Regulation reduces resets and noise
Limitations
- Wrong polarity can cause immediate damage
- Underrated parts overheat
- Mains circuits require qualified supervision
Handling
- Measure output before connection
- Use a fuse or current limit
- Insulate exposed conductors
Specifications to verify
- Use the exact model, value, package, and rating listed for Transformer; similar-looking parts are not always interchangeable.
- Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
What's this?Image, role, pros, cons, handling & specifications
CD4027
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for CD4027; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
T1, T2, T3 - transistor stages identified in the circuit
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for T1, T2, T3 - transistor stages identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
LED1 - indicator LED identified in the circuit
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for LED1 - indicator LED identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Anti-Theft Alarm: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

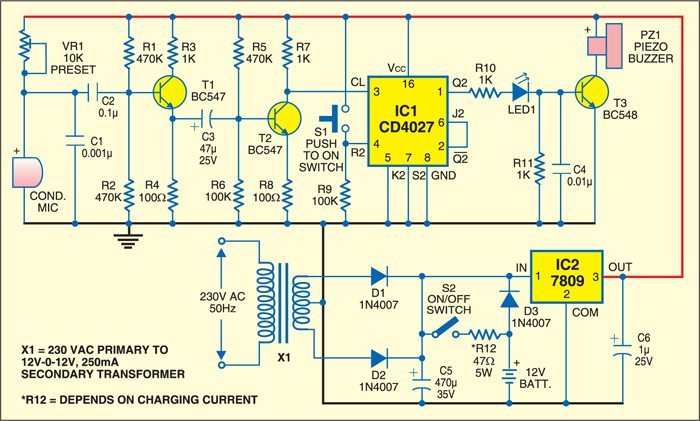

Project build noteYou can prevent a break-in by using this anti-theft alarm circuit that you set up. When someone tries to force their way into your house or place of business by banging, pushing, or hitting the door, the alarm goes off. A condenser microphone serves as the element of the sensor, and it is mounted inside the home somewhere on the front door or, more ideally, on the door frame. The door can be made to make noise by hitting it, pushing it, or knocking on it. This is picked up by the microphone, and the signal is sent on to the preamplifier component of the circuit. The flip-flop is what makes the connection between that section and the buzzer. As a consequence, the buzzer goes off whenever someone strikes or knocks on the front door. Anti-theft alarm circuit Preamplifier, flip-flop, and power supply are the three components that can be separated from one another within the circuit. The signal that is created during knocking is amplified in the preamplifier stage by the transistors T1 and T2. This signal was obtained from the condenser microphone. The JK flip-flop CD4027 receives its clock signal from the output of the preamplifier. The JK flip-flop portion makes use of a twin JK flip-flop CD4027, however only one of the two flip-flops is active at any given time. When both the 'J' and the 'K' inputs are low, the flip-flop is stopped from working. The 'K' input of the IC CD4027 (pin 5) is connected to ground, whereas the 'J' input (pin 6) is connected to the Q output (pin 2). The output of the
preamplifier is wired to IC1's clock input (pin 3), which allows the IC to function properly. Anti-theft alarm circuit The signal that has been amplified is then sent to the JK flip-flop IC1. The output of this flip-flop gets high as soon as it receives the input from the condenser mic, and it continues to be high until it is reset by the switch S1. The buzzer PZ1 is driven by the output of IC1 through the npn transistor T3. When there is a visitor, the buzzer will alert you to their presence. It will continue to be in the "on" position until you activate the reset push-to-on switch located on pin 4 of IC1. In the section that deals with the power supply, the secondary winding of transformer X1 is wired up to the rectifier. The rectified output is fed to regulator IC2, which in turn provides a 9V regulated power supply for the circuit to operate. Additionally, the rectified output is used to charge the 12V, 4Ah battery through switch S2. To charge the battery, move switch S2 to the "on" position, and once it is fully charged, move it back to the "off" position. In the event that there is a disruption in the main source of power, the battery will provide backup power. In a nutshell, the sound that is picked up by the condenser microphone is amplified and then used as the input to trigger IC1. As a result, the buzzer will continue to ring until
it is reset. At the same moment, the visual indication provided by LED1 is illuminated.
Construction & testing
Project build noteThe circuit should be assembled on a small PCB and then housed in a small cabinet. Now repair the unit that is located close to the front door by installing a condenser microphone on the door panel. The visual signal is provided by LED1, and the buzzer serves as the audible alarm.
You built Anti-Theft Alarm.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
DIAC Controlled Flasher
Ready to reuse what you learned in another project from the same track?
Start this project →
