Farmhouse Lantern-Cum-Flasher

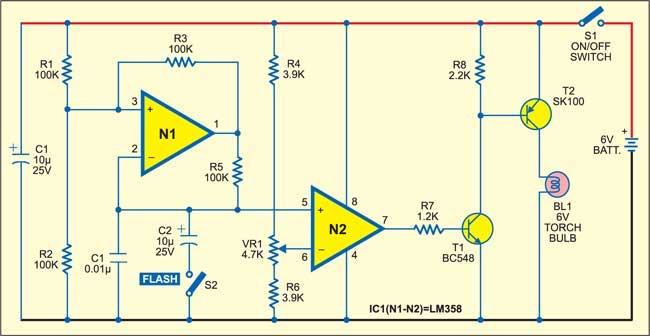

This circuit is made up of two transistors and a dual op-amp IC called LM358. It can be powered by either a 6V battery that doesn't need to be maintained or a lead-acid accumulator batter…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Farmhouse Lantern-Cum-Flasher is a electronics project. This circuit is made up of two transistors and a dual op-amp IC called LM358. It can be powered by either a 6V battery that doesn't need to be maintained or a lead-acid accumulator batter…
- Source pages
- 62-62
- Named parts
- 20
- Build goal
- Working, tested prototype
