Accurate Foot-Switch
Some industrial controls need to be switched in a precise way. For example, even a small mistake when using a foot-switch for precise drilling work can cause a lot of loss. This low-cost…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Accurate Foot-Switch is a electronics project. Some industrial controls need to be switched in a precise way. For example, even a small mistake when using a foot-switch for precise drilling work can cause a lot of loss. This low-cost…
- Source pages
- 63-64
- Named parts
- 4
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
SEMICONDUCTOR LEARNING VIEWNE555
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for NE555; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
SEMICONDUCTOR LEARNING VIEWBC548
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for BC548; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
T1, T2 - transistor stages identified in the circuit
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for T1, T2 - transistor stages identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
LED1 - indicator LED identified in the circuit
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for LED1 - indicator LED identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Accurate Foot-Switch: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.

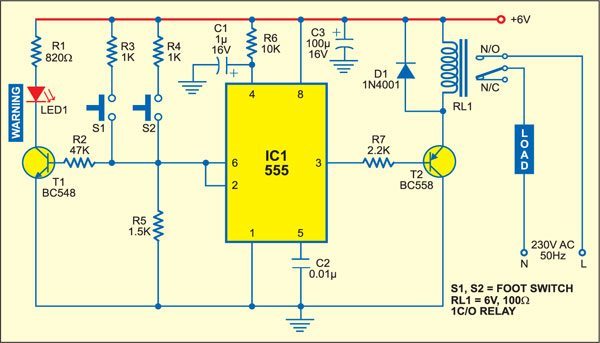

Open all source diagrams and build views 2 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

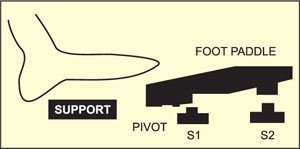

Project build noteSome industrial controls need to be switched in a precise way. For example, even a small mistake when using a foot-switch for precise drilling work can cause a lot of loss. This low-cost switch that you operate with your foot can stop that from happening. IC NE555 is wired in a mode called "one-shot." Only when both switches S1 and S2 are pressed at the same time does pin 3 go high. You can turn off any switch without changing the state of the output. When both switches are let go, the output goes low. As shown in Fig. 2, the switches are put under a foot paddle. LED1 is used to show that something is wrong. If S1 or S2 are pressed by accident, LED1 will blink to let the operator know. Then, if the operator makes a mistake, he can pull his foot back or press the other switch to start the circuit. LED1 is going to be put on the desk of the operator.
The circuit is easy to understand. The three resistors R2, R3, and R4 divide the voltage. It has two comparators, a flip-flop, and a section for putting out power. By pressing either S1 or S2, the input voltage is put between the upper comparator (2/3Vcc) and the lower comparator (1/3Vcc). So, it doesn't change the state of the flip- flop inside IC NE555. When you press both switches at the same time, the flip-flop is set and the output of the NE555 goes high. Relay RL1 drives the load when transistor T2 turns it on. When you let go of any of the switches, the comparator voltage in the NE555 goes back to where it started, but this doesn't change the state of the flip-flop. When both switches are turned off, the input level relative to ground goes below the low trigger level, which resets the output. When the voltage divider is used, the circuit works well over the full range of voltages that are allowed. The power-on reset is done by the RC circuit at pin 4. When only S1 is pressed, R3 (1 kilo-ohm) is less than R5 (1.5 kilo-ohm), so IC1 is not set off. But transistor T1 (BC548) gets pushed forward, and LED1 lights up. When both S1 and S2 are pressed, the resistance between +Vcc and pin 2 of IC1 is about 500 ohms. This is less than R5, which is 1.5 kilo-ohms, so IC NE555 is triggered.
