Car Reverse Horn
This automobile reverse horn is compatible with any vehicle that has a battery that can handle 12 volts. Beeping tone signals are produced by an astable multivibrator, also known as an AM…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Car Reverse Horn is a electronics project. This automobile reverse horn is compatible with any vehicle that has a battery that can handle 12 volts. Beeping tone signals are produced by an astable multivibrator, also known as an AM…
- Source pages
- 311-312
- Named parts
- 3
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Speaker
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for Speaker; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications
SEMICONDUCTOR LEARNING VIEWBD139 - transistor
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for BD139 - transistor; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
T1, T2, T3, T4 - transistor stages identified in the circuit
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for T1, T2, T3, T4 - transistor stages identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Car Reverse Horn: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

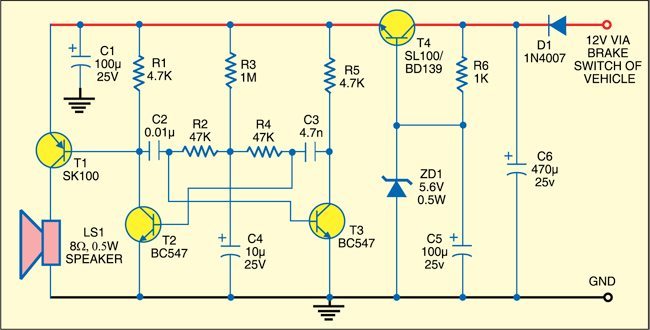

Project build noteThis automobile reverse horn is compatible with any vehicle that has a battery that can handle 12 volts. Beeping tone signals are produced by an astable multivibrator, also known as an AMV, which is formed by the transistors T2 and T3. A straightforward speaker amplifier is provided by the medium-power pnp transistor T1, which acts in this capacity. A npn medium power transistor with the model number BD139 (T4) Its base has a connection for a zener diode (ZD1) that provides 5.6 volts. The horn circuit, which is based around transistors T1 through T3, receives its power from a regulated 5.6V DC supply that is provided by ZD1. Protecting against the effects of reverse polarity is the role that diode D1 plays. Through the brake switch of the automobile or three-wheeler, 12V DC is introduced into the circuit.
When you put your vehicle into reverse, the brake switch makes a connection to the battery of the vehicle so that the circuit can be completed. The AMV goes through a process of oscillation and generates an audio frequency. This frequency is then passed on to the speaker driver transistor T1, which causes a tone to be produced. Altering the values of the capacitors C2 through C4 in the multivibrator circuit will result in a different tone being produced. Construct the circuit using a PCB designed for general use and encapsulate it in an appropriate enclosure. Establish a connection between the circuit's 12V DC power supply and the brake switch. When you put your automobile into reverse, the circuit receives the 12V it needs to function properly. Install the cabinet in the vehicle in such a way that it emits sound toward the back while the vehicle is in reverse gear.
You built Car Reverse Horn.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
Bicycle Indicator
Ready to reuse what you learned in another project from the same track?
Start this project →
